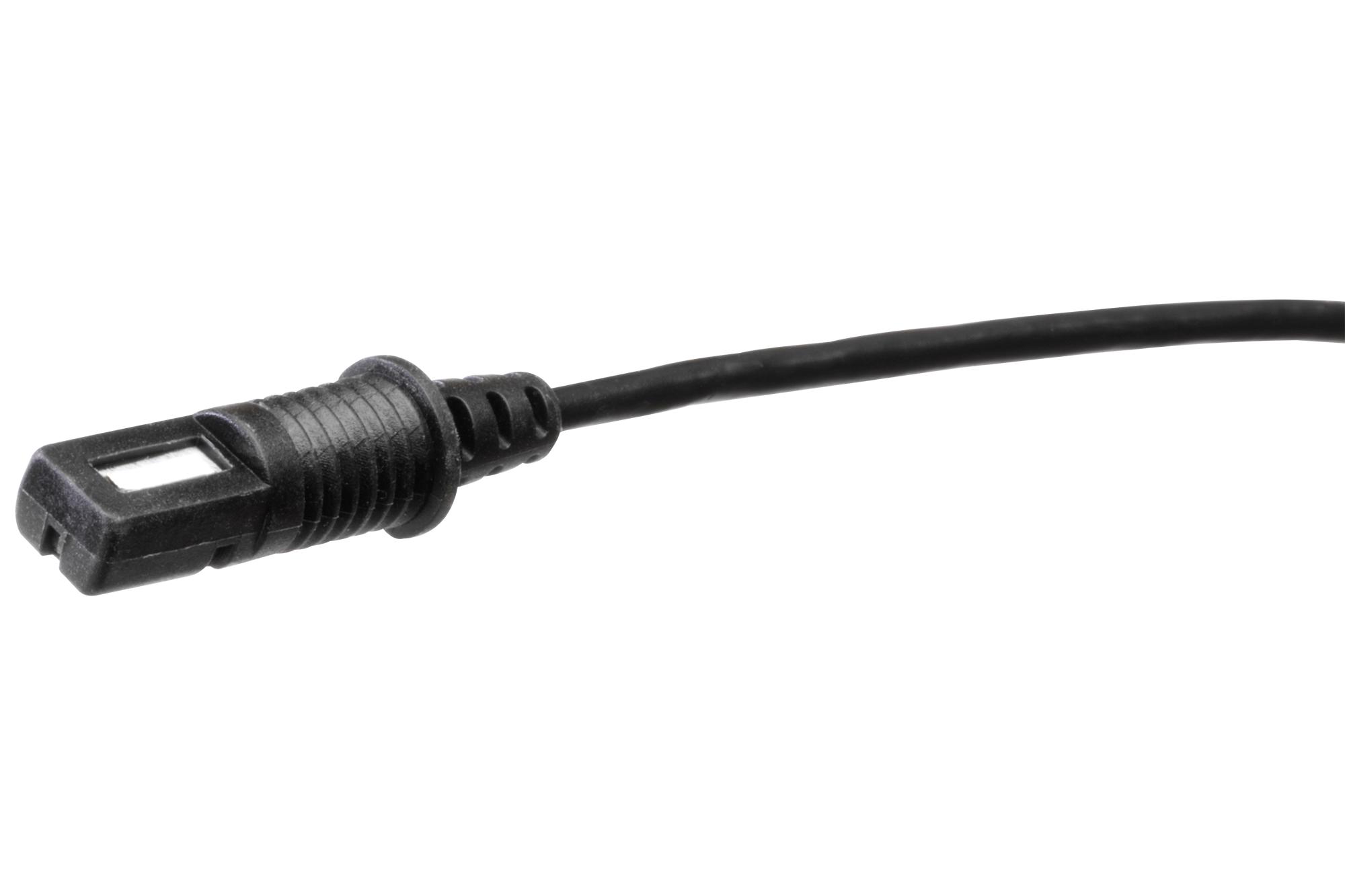

AMPHENOL ADVANCED SENSORS T96025D1 humidity temperature sensor
The T9602 humidity and temperature sensor is a fully calibrated, water-resistant device designed for OEM installation in HVAC, process control, and instrumentation. It features high accuracy (+2% RH from 20% to 80% RH), a fast response time of 5 seconds, and offers digital or analogue outputs. Integrating capacitive polymer sensing technology with temperature compensation, it operates from 0°C to 50°C and provides reliable performance in harsh environments. Its compact size, IP65 protection, and optional cable lengths make it ideal for precise environmental monitoring applications.
AMPHENOL ADVANCED SENSORS T96025D1 humidity temperature sensor Specifications:
- Measurement Range: 0-100% RH, 0°C to 50°C
- Resolution: 14-bit (0.01% RH, 0.01°C)
- Accuracy: +2% RH (20-80% RH), +0.5°C
- Response Time: 5 seconds (63%)
- Operating Conditions: 0-50°C, 0-95% RH non-condensing
- Protection: IP65
- Power Supply: 3.3V or 5V DC (regulated, ±5%)
- Power Consumption: 750 μA typical
- Dimensions: approx. 42mm x 13.5mm diameter
- Cable: 4-core, shielded, halogen-free, 4.20 ± 0.20mm diameter
- Connector: JST EHR-4, compatible PCB connector JST B4B-EH-A
- Mounting: Grommet or cable clamp, 7/16 inch or 11mm diameter
- Storage Conditions: -40°C to 85°C
- Operating Humidity Range: 0-95% RH (non-condensing)
Buy the Amphenol Series T9602 Humidity & Temperature Sensor: T96025D1
Purchase the Amphenol T96025D1 humidity and temperature sensor online today to ensure precise environmental monitoring for HVAC, industrial, and process control projects. This advanced device offers high accuracy, water resistance, and versatile output options, making it perfect for OEMs and professionals seeking reliable readings in harsh conditions. Enjoy fast delivery, easy installation, and long-term performance with this compact, IP65-rated sensor. Elevate your environmental sensing solutions by ordering online now.
Buy Amphenol T96025D1 now and experience unmatched reliability and performance in environmental sensing applications.
