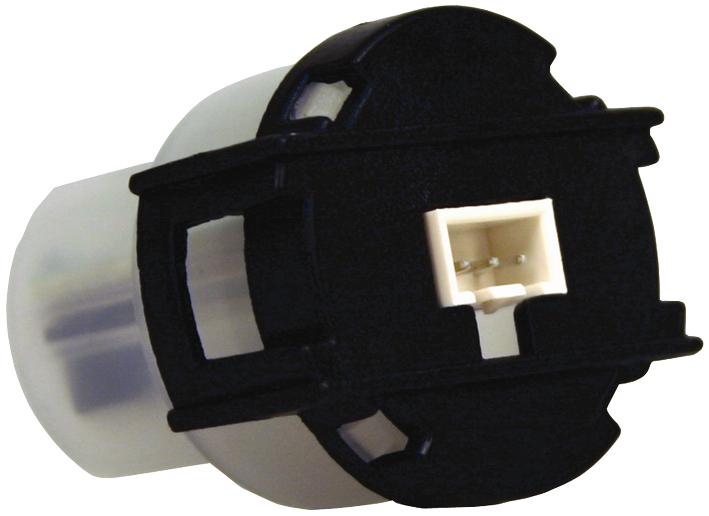

AMPHENOL ADVANCED SENSORS TSD10 Turbidity Sensor
The TSD-10 is a turbidity sensor featuring a phototransistor output, designed to measure the level of suspended particles in wash water of washing machines and dishwashers. It operates on the principle that light transmission through water decreases as the concentration of soil or sediment increases, allowing it to assess water clarity and impurity levels. The sensor provides turbidity data to the appliance's controller, which adjusts washing cycles accordingly. It functions with a supply voltage of approximately 3V (±10%) and is suitable for operational temperatures ranging from -10°C to 90°C, making it ideal for sensing and instrumentation applications in household appliances.
AMPHENOL ADVANCED SENSORS TSD10 Turbidity Sensor Specifications:
- Rated Voltage: 3.0V ±10%
- Operating Temperature Range: -10°C to 90°C
- Storage Temperature Range: -20°C to 90°C
- Rated Current: Max 30 mA
- Insulation Resistance: Min 100 MΩ at 500V DC
- Detection Principle: Light transmission decreases with increased turbidity
- Application: Water turbidity measurement in household appliances
- Voltage Differential: Specific to calibration standards
- Test Method: Calibration with Master NTU Standard Liquid
Buy the Buy Amphenol TSD-10 Turbidity Sensor Part Number TSD10 Online
Enhance your appliance performance with the TSD-10 turbidity sensor, designed to accurately measure the amount of suspended particles in wash water. Its optical sensor detects water clarity using light transmission principles, providing real-time data to control wash cycles. Operating on approximately 3V and suitable for temperatures from -10°C to 90°C, the TSD-10 ensures energy-efficient cleaning by adjusting cycle duration based on turbidity levels. Its compact design offers easy integration for washing machines and dishwashers, optimizing cleaning performance and resource savings.
Order your Amphenol TSD-10 turbidity sensor today and optimize water quality measurement in household appliances for reliable and energy-efficient washing.
