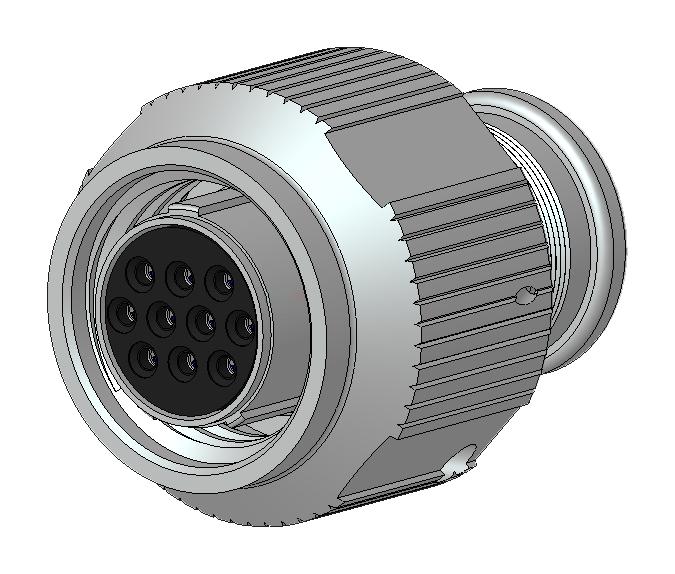

Amphenol Aerospace 2M80103616M919SA High Speed Data Connector
The 2M801 high-speed connector series is designed for applications such as USB 3.0, eSATA, and other high-speed data buses where space is limited. These connectors feature fluoropolymer inserts optimized for high data rates, with multiple insert arrangements available. They include plugs with anti-decoupling or self-locking ratchet mechanisms, as well as Dual-Start ACME threads for full mating in just 1½ turns. Both plugs and receptacles come in two shell styles, with an integral banding platform supporting direct EMI shielding termination and overmolding. Rear threads enable attachment of backshells or accessories, with contact options like crimp, PC tail, and solder cup. Ideal for aerospace, industrial, and data communication applications, they ensure reliable high-speed connections in compact spaces.
Amphenol Aerospace 2M80103616M919SA High Speed Data Connector Specifications:
- Shell Size-Insert Arrangement: Multiple configurations including 7-10 P Pin 150°, 210° Socket, 75° A, 95° C, 230° B, 275° D, 75° E, 96° F, 10-26 A'B
- Contact Termination: Crimp, PC Tail, Solder Cup
- Material: Electroless Nickel Passivated, PCB Stainless Steel
- Thread Type: Dual-Start ACME threads for full mating in 1½ turns
- Connector Features: Fluoropolymer inserts for high-speed data, integral banding platform for EMI shielding, optional accessory threads
- Plugs and Receptacles: Available in anti-decoupling or self-locking ratchet mechanisms, two shell styles
- Receptacle Options: With Banding Self-Locking Ratchet, Square Flange, or Passivated Types
- Applications: USB 3.0, eSATA, aerospace, industrial, communication systems, small satellites, in-flight entertainment
- Additional Features: Rear threads for backshell or accessory attachment, configurable insert arrangements for various termination styles
Buy the Buy Amphenol High Speed Data Connector Part Number 2M80103616M919SA Online
Purchase the Amphenol high-speed data connector today to experience superior data transfer capabilities in a compact form factor. Designed for USB 3.0, eSATA, and high-speed data applications, it features fluoropolymer inserts, dual-start ACME threads for quick mating, and versatile termination options including crimp, solder, and PCB tails. The connector's robust design with integral EMI shielding platforms, multiple shell styles, and rear threads ensures compatibility with various accessories and enclosures. Ideal for aerospace, industrial, and communications industries, this connector guarantees reliable performance and easy installation for demanding high-speed data connections.
Buy Amphenol 2M80103616M919SA high-speed data connector now and ensure reliable high-speed data transmission in compact, space-constrained environments.
Frequently Asked Questions
Where can I buy Amphenol Aerospace 2M80103616M919SA?
You can click on the BUY or RFQ button to purchase 2M80103616M919SA from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part 2M80103616M919SA?
You can download the 2M80103616M919SA datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of 2M80103616M919SA?
Amphenol Aerospace
