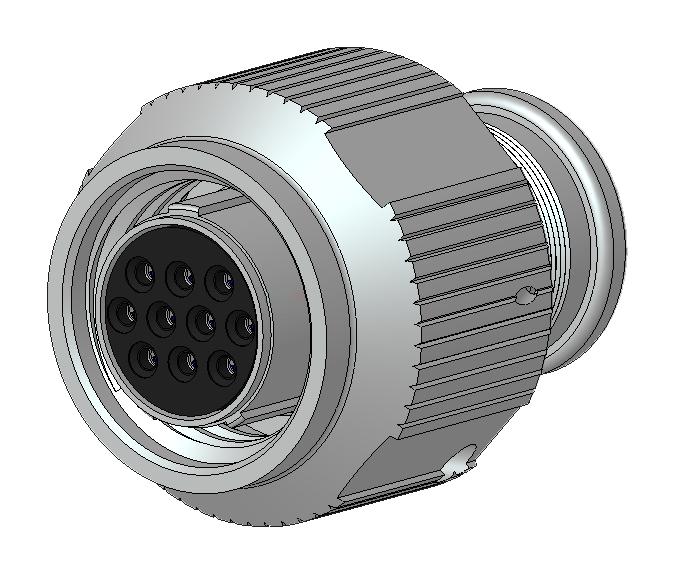

Amphenol Aerospace 2M80103616MT710SA High-Speed Data Connector
The 2M801 high-speed series connectors are designed for applications such as USB 3.0, eSATA, and other high-speed data buses where space is limited. They feature fluoropolymer inserts optimized for high-speed data transmission, supporting increased data rates within a compact 2M-sized package. These connectors are a cost-effective solution compatible with all standard 2M backshells and accessories. They offer versatile termination options including crimp, PCB tail, and solder cup. The series includes plugs with anti-decoupling or self-locking ratchet mechanisms, as well as a Dual-Start ACME thread for full mating in 1.5 turns. They come in multiple shell styles and include an integral banding platform for EMI shielding termination and overmoulding. Rear threads are available for backshell attachment, making them suitable for avionics, in-flight entertainment systems, small satellites, situational awareness systems, and tablets or heads-up displays.
Amphenol Aerospace 2M80103616MT710SA High-Speed Data Connector Specifications:
- Series: 2M801 high-speed
- Applications: USB 3.0, eSATA, high-speed data buses
- Insert Material: Fluoropolymer
- Thread Type: Dual-Start ACME thread
- Full Mating: 1 1/2 turns
- Shell Styles: Multiple styles including integral banding platform
- Termination Options: Crimp, PCB tail, Solder Cup
- Features: Anti-decoupling, self-locking ratchet mechanisms
- Backshelf Compatibility: All standard 2M backshells and accessories
- Additional: Rear threads for backshell attachment, EMI shielding termination, overmoulding
- Design Benefits: Space-efficient, supports high data rates, suitable for avionics, in-flight systems, small satellites, tablets
Buy the Amphenol 2M801 – Reliable High-Speed Data Connector for Industrial Applications
Buy the Amphenol 2M801 high-speed data connector online today for high-performance applications including USB 3.0 and eSATA. Designed to deliver superior data transfer rates within limited spaces, these connectors feature fluoropolymer inserts optimized for high-speed data, versatile termination options like crimp, PCB tail, and solder cup, and multiple shell styles including integral banding platforms for EMI shielding and overmoulding. Featuring dual-start ACME threads for quick full mating in 1.5 turns, anti-decoupling, self-locking ratchet mechanisms, rear threads for backshells, and compatibility with all standard 2M accessories, these connectors are ideal for avionics, satellite, and in-flight entertainment systems.
Get Amphenol 2M801 high-speed connector today—built for secure, reliable high-speed data transfer in demanding industrial applications.
Frequently Asked Questions
Where can I buy Amphenol Aerospace 2M80103616MT710SA?
You can click on the BUY or RFQ button to purchase 2M80103616MT710SA from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part 2M80103616MT710SA?
You can download the 2M80103616MT710SA datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of 2M80103616MT710SA?
Amphenol Aerospace
