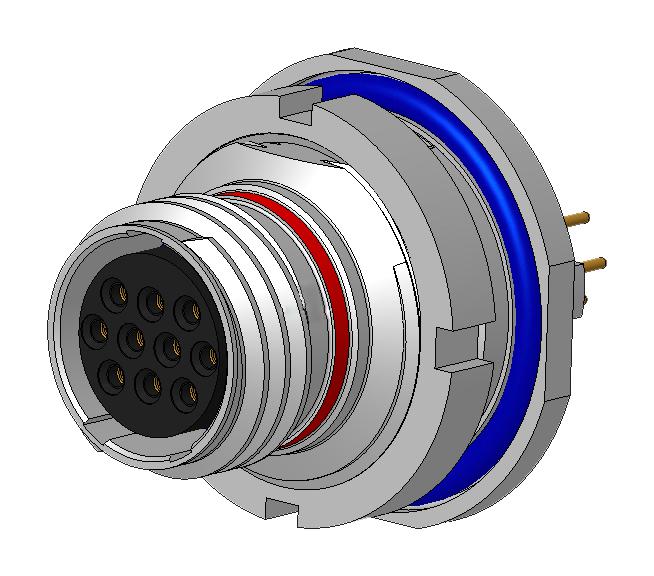

AMPHENOL AEROSPACE 2M80103807M1026SA High-Speed Data Connector
The 2M801 high-speed connector series is engineered for USB 3.0, eSATA, and high data rate applications in constrained spaces. Featuring fluoropolymer inserts optimized for high-speed data transfer, these connectors support various insert configurations, including plugs with anti-decoupling or self-locking ratchets, and Dual-Start ACME threads for quick mating within 1.5 turns. Both plugs and receptacles are available in two shell styles, with optional integral banding platforms for EMI shielding and overmolding. Rear threads facilitate backshell attachment. Contact termination options include crimp, PC tail, and solder cup, suitable for avionics, satellite systems, and portable devices.
AMPHENOL AEROSPACE 2M80103807M1026SA High-Speed Data Connector Specifications:
- Shell Size-Insert Arrangement: Various configurations including 7-10 P Pin, 9-19 E, 10-26 A'B, 75° to 275° angles
- Contact Termination: Crimp, PC Tail, Solder Cup
- Material: Nickel passivated stainless steel
- Thread Type: Dual-Start ACME for full mating in 1 1/2 turns
- Shell Styles: Two styles with optional integral banding platform for EMI shielding and overmolding
- Rear Threads: Available for backshell attachment
- Insert: Fluoropolymer optimized for high speed data transfer
- Applications: Aerospace, avionics, in-flight entertainment, small satellites, tablets
- Finish: Electroless Nickel for corrosion resistance
Buy the Amphenol 2M801 – Reliable High-Speed Connectors for Industrial Applications
Purchase the Amphenol 2M801 high-speed connector online today and experience reliable, high-performance data transfer solutions. Designed for USB 3.0, eSATA, and space-constrained applications, these connectors feature fluoropolymer inserts optimized for high data rates, ensuring fast and dependable connectivity. The series offers versatile contact termination options, including crimp, PC tail, and solder cup for easy assembly. With dual-start ACME threads for quick mating, optional EMI shielding, and compatibility with various accessories like backshells, these connectors are ideal for aerospace, satellite, and portable device applications. Buy now for quick delivery and trusted quality.
Order your Amphenol 2M801 high-speed connector today and enhance your industrial data transfer projects with dependable performance and quick mating features.
