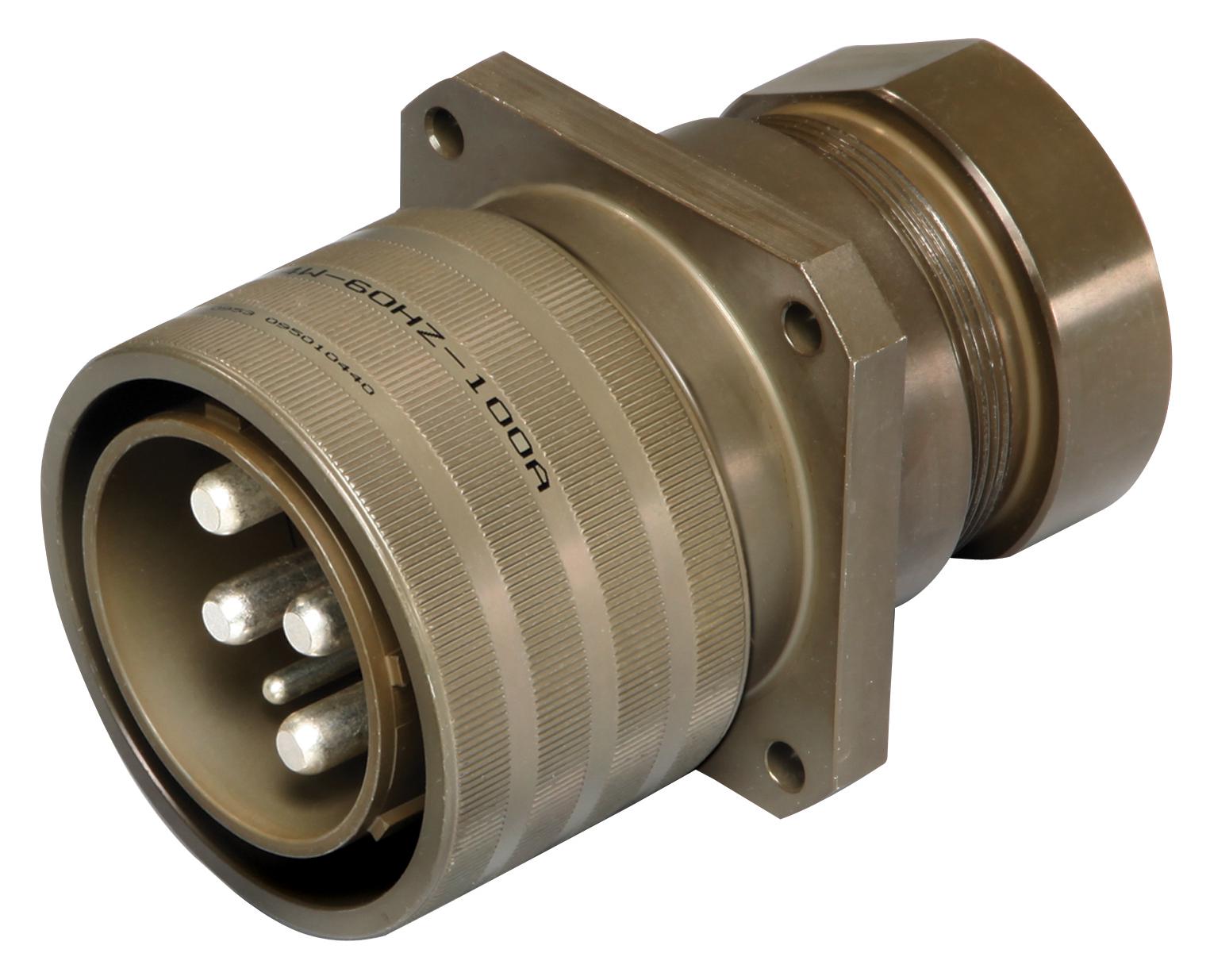

Amphenol Aerospace CL90558DT32413P Heavy Duty Connector
This high-performance connector features a Durmalon finish, providing protection against 500 hours of dynamic salt spray and an environmentally friendly alternative to cadmium. Suitable for military, industrial, and commercial applications, it supports heavy electrical loads with current ranges from 40 to 200 amps and conductor sizes from 6 to 4/0. Designed for direct current and single- or three-phase AC at 60/400Hz, it includes features like automatic grounding, resistance to heat, moisture, vibration, high impact, and immersion. Double stub coupling threads enable quick, cross-thread-free connections, while weatherproof gaskets maintain sealed integrity. It complies with MIL-DTL-22992 specifications, is intermateable with cadmium counterparts, and is part of the heavy-duty class L series, offering maximum reliability and capacity in rugged environments.
Amphenol Aerospace CL90558DT32413P Heavy Duty Connector Specifications:
- Finish: Durmalon coating, environmentally friendly, salt spray resistant 500 hours
- Material: Aluminum parts with AP-93 plating
- Current Range: 40 to 200 amperes
- Conductor Sizes: 6 to 4/0
- Supports: Direct current, single-phase, three-phase AC at 60/400Hz
- Features: Automatic grounding, heat, moisture, vibration, impact, immersion resistant
- Threads: Double stub coupling for quick, cross-thread-free connections
- Sealing: Gaskets or 'O' rings for weather-tight seal
- Compliance: MIL-DTL-22992, compatible as drop-in replacement with cadmium connectors
- Design: Part of heavy-duty class L series, designed for rugged use
Buy the Amphenol CL90558DT32413P – Reliable Heavy Duty Connector for Industrial Applications
Experience the durability and reliability of the Amphenol Heavy Duty Connector designed for rugged industrial and military environments. Featuring a Durmalon finish and certified to MIL-DTL-22992 standards, this connector offers excellent resistance to corrosion, salt spray, and harsh conditions. Capable of handling up to 200 amps for direct current and AC applications, it is engineered with automatic grounding, weatherproof sealing, and high-impact resistance. Intermateable with cadmium counterparts, it’s an ideal drop-in replacement for existing heavy-duty power connections, ensuring safety, performance, and long-lasting service in demanding conditions.
Get Amphenol CL90558DT32413P today—built for heavy-duty electrical loads and rugged environments, perfectly suited for industrial, military, and commercial use.
Frequently Asked Questions
Where can I buy Amphenol Aerospace CL90558DT32413P?
You can click on the BUY or RFQ button to purchase CL90558DT32413P from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part CL90558DT32413P?
You can download the CL90558DT32413P datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of CL90558DT32413P?
Amphenol Aerospace
