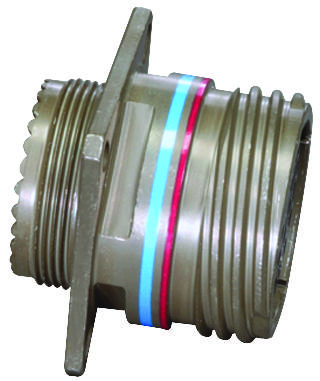

Amphenol Aerospace D3899920WD35PN Circular Military Connector
The MIL-DTL-38999 Series III wall mount receptacle is a high-reliability circular connector with 37 contacts, designed for demanding environments. Made from aluminum alloy with olive drab chromate over cadmium plating, it features copper alloy crimp pin contacts with gold plating. The connector is resistant to environmental elements such as moisture, corrosion, and extreme temperatures ranging from -65°C to +200°C. It offers exceptional EMI and RFI shielding, a scoop-proof design to prevent contact damage, and IP67 environmental protection. The connector supports up to 500 mating cycles, with high-durability versions capable of 1500 cycles. It employs a self-locking, triple-start threaded coupling system for secure attachment, making it suitable for defense, military, aerospace, and industrial applications.
Amphenol Aerospace D3899920WD35PN Circular Military Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy with gold plating
- Number of Contacts: 37
- Temperature Range: -65°C to +200°C
- Environmental Resistance: Moisture, corrosion, salt spray for 500 hours
- Sealing: IP67 rated for environmental protection
- Durability: Supports up to 500 mating cycles, high-durability versions up to 1500 cycles
- Coupling System: Self-locking, triple-start threaded system
- Vibration Resistance: As per MIL-DTL-38999
- Mechanical Shocks: 300 g, 3 ms in all axes
- Insulation Resistance: >5000 MΩ at 25°C and 65% HR
- Voltage Rating: Up to 2300V at sea level
- Connector Type: Circular, high-reliability, military standard
Buy the Deutsch Series D3899920WD35PN: Circular Military Connector
Enhance your project performance with the Deutsch Series D3899920WD35PN circular military connector. Engineered for extreme environments, it offers robust protection against moisture, corrosion, and temperature extremes from -65°C to +200°C. Its high-reliability design includes copper alloy contacts with gold plating, IP67 sealing, and a scoop-proof shell to prevent contact damage during installation. Supporting up to 500 mating cycles with the option for high-durability versions up to 1500 cycles, this connector ensures secure, EMI-shielded connections for defense, aerospace, and industrial applications. Buy online now for proven durability and performance.
Order your Deutsch Series D3899920WD35PN circular military connector today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Amphenol Aerospace D3899920WD35PN?
You can click on the BUY or RFQ button to purchase D3899920WD35PN from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part D3899920WD35PN?
You can download the D3899920WD35PN datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of D3899920WD35PN?
Amphenol Aerospace
