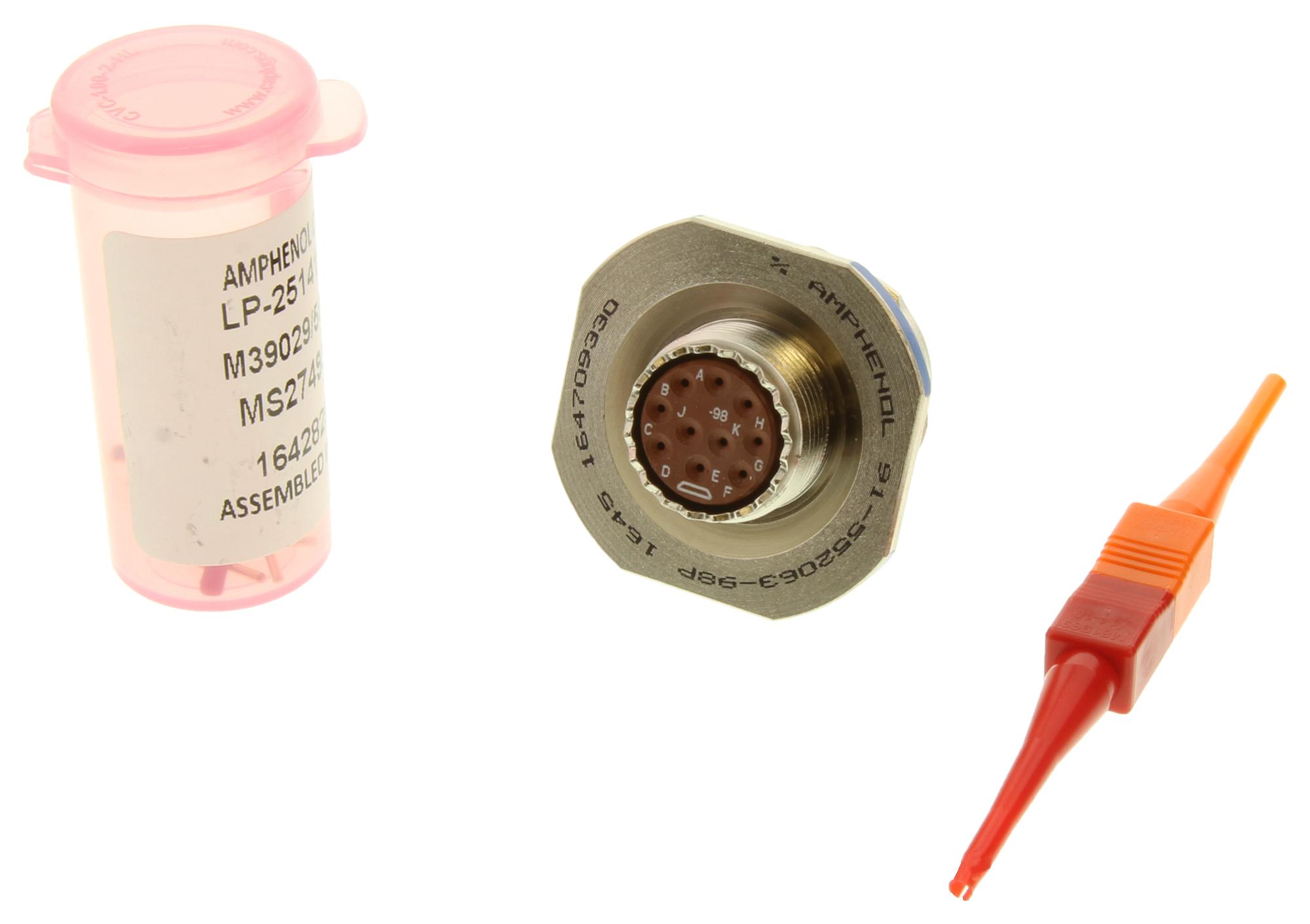

Amphenol Aerospace D3899924FC98PN MIL-DTL-38999 Receptacle
The D38999/24FC98PN is a high-performance MIL-DTL-38999 Series III jam nut receptacle connector crafted from corrosion-resistant aluminum alloy with electroless nickel plating. It features 10 copper alloy crimp contacts plated with gold for superior electrical conductivity, EMI/RFI shielding, and durability. Designed for severe environments, it operates reliably across -65°C to +200°C, with IP67 environmental sealing to prevent ingress of dust and water. The connector's scoop-proof design minimizes contact damage, with a self-locking triple-start threaded coupling offering up to 500 mating cycles standard, with options for 1500. It maintains over 5 Gigaohms insulation resistance at 500VDC, suitable for military, aerospace, industrial, and defense applications requiring rugged, high-reliability interconnections.
Amphenol Aerospace D3899924FC98PN MIL-DTL-38999 Receptacle Specifications:
- Material: Aluminum alloy with electroless nickel plating
- Contacts: 10 copper alloy crimp pins, gold-plated
- Electrical Performance: Insulation resistance over 5,000 MΩ at 500VDC
- Temperature Range: -65°C to +200°C
- Sealing: IP67 environmental seal against dust and water
- Coupling: Self-locking, triple-start threaded
- Cycle Life: Up to 500 mating cycles (standard), 1500 optional
- Design: Scoop-proof to prevent contact damage
Buy the Amphenol D38999/24FC98PN – Reliable MIL-DTL-38999 Series III for Industrial Applications
Order the Amphenol D38999/24FC98PN today for robust, high-reliability interconnect solutions. Designed to withstand extreme environments, this connector features corrosion-resistant aluminum, gold-plated contacts, and IP67 sealing. Its scoop-proof design minimizes contact damage, and the self-locking triple-start thread ensures secure mating over thousands of cycles. Suitable for military, aerospace, and industrial applications, it offers a wide temperature range from -65°C to +200°C, making it an excellent choice for demanding operational environments requiring rugged, reliable connections.
Get Amphenol D38999/24FC98PN today—built for rugged durability and high-performance military, aerospace, and industrial interconnects.
Frequently Asked Questions
Where can I buy Amphenol Aerospace D3899924FC98PN?
You can click on the BUY or RFQ button to purchase D3899924FC98PN from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part D3899924FC98PN?
You can download the D3899924FC98PN datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of D3899924FC98PN?
Amphenol Aerospace
