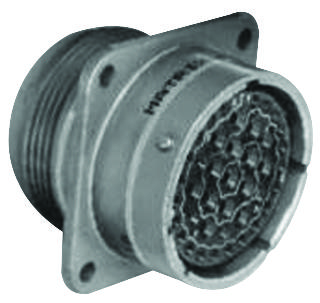

Amphenol Aerospace MS3470W1210P Bayonet Connector
The MS3470W12-10P is a medium-sized, environment-resistant military standard bayonet coupling connector featuring a wall-mount receptacle with a narrow flange and an aluminum shell finished in olive drab cadmium. It has a 10-position pin-type crimp rear insertable and rear releasable contacts. The connector's design allows contact insertion from the rear, preventing damage to the sealing surfaces. It uses a standard rear-release plastic tool for contact insertion, and the grommets are made of tear-resistant elastomer resistant to various fluids. A triple-webbed grommet provides reliable sealing over a range of wire diameters. The connector offers quick, positive coupling via a three-point bayonet system, with visual confirmation and a five-key/keyway pattern to prevent mismating. It is rated for a maximum operating voltage of 1000VAC RMS at sea level and supports at least 500 mating cycles. Suitable for defense, military, aerospace, sensing, instrumentation, automation, and test and measurement applications. Note: Due to high market demand, lead times may extend and delivery dates may fluctuate. This product is not eligible for discounts.
Amphenol Aerospace MS3470W1210P Bayonet Connector Specifications:
- Shell Material: Aluminum, olive drab cadmium plated
- Shell Size: 12
- Contact Type: Pin crimp rear insertable, rear releasable
- Number of Contacts: 10 positions
- Crimping: Rear insertable, crimp with standard tools
- Voltage Rating: 1000VAC RMS at sea level
- Mating Cycles: Minimum 500
- Sealing: Triple-webbed elastomer grommet for fluid resistance
- Coupling System: 3-point bayonet for quick engagement
- Insertion: Contact inserted from rear, preventing damage
- Visual confirmation: Yes, for complete coupling
- Keying: 5-key/keyway pattern to prevent mismating
- Applications: Defense, aerospace, instrumentation, automation, test equipment
- Environmental Resistance: Fluid resistant, suitable for harsh environments
Buy the Amphenol MS3470 U-2013 Reliable Bayonet Connector for Military Applications
Enhance your military-grade connection solutions with the Amphenol Bayonet Connector. Designed with a durable aluminum shell, rear removable pin contacts, and a quick three-point bayonet coupling, this connector ensures secure and reliable performance essential for defense, aerospace, sensing, and automation applications. Its elastomer grommets provide excellent fluid resistance and environmental sealing, supporting at least 500 mating cycles. Order online today to benefit from fast delivery and ensure your projects meet the highest standards of safety and durability in demanding environments.
Buy Amphenol MS3470W12-10P now and experience unmatched reliability and performance in military and aerospace environments.
