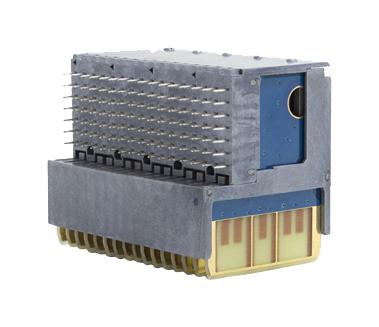

Amphenol Aerospace RVPXP08VM2 High-Speed Aerospace Connector
The R-VPX connector system is a durable, high-speed, board-to-board interconnect designed for data rates exceeding 10Gbps, compliant with VITA 46 standards. It features modular PCB wafer construction with customizable loading patterns, making it ideal for embedded computing in aerospace and military environments, including C4ISR, missile defense, and space systems. The standard module has 8 positions, VITA 46 insert type, and 50-micrometer tin-lead plated contacts. It supports high-speed protocols like PCIe, InfiniBand, and Serial RapidIO, with lightweight, low mating force design for 0.8-inch card slots.
Amphenol Aerospace RVPXP08VM2 High-Speed Aerospace Connector Specifications:
- Module: 8 positions, VITA 46 insert type
- Contacts: 50 micrometer tin-lead plated
- Current per contact: 1.5A
- Supported Protocols: PCIe Gen 1-3, InfiniBand SDR, DDR, QDR, Serial RapidIO
- Data Rates: Exceeding 10Gbps
- Compatibility: Fully compatible with VITA 46 and meets VITA 47 standards
- Application Environment: Aerospace, military, embedded computing, C4ISR, missile defense, space systems
- Physical: 0.8-inch card slot pitch, lightweight, modular, low mating force
Buy the Buy Amphenol RVPX Connector Part Number RVPX-PO8VM2 Online
Purchase the Amphenol RVPX connector part RVPX-PO8VM2 online for aerospace and military applications. Featuring high-speed data support exceeding 10Gbps, VITA 46 compliance, and modular PCB design, this rugged connector is ideal for embedded computing, missile defense, and space systems. It supports multiple protocols like PCIe, InfiniBand, and Serial RapidIO, with 8 positions and tin-lead plated contacts for durability and performance. Lightweight and low mating force, it seamlessly integrates into 0.8-inch card slots for reliable, high-speed data transmission.
Get Amphenol RVPX connector part RVPX-PO8VM2 today—designed for high-speed aerospace and military use with modular, reliable construction.
Frequently Asked Questions
Where can I buy Amphenol Aerospace RVPXP08VM2?
You can click on the BUY or RFQ button to purchase RVPXP08VM2 from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part RVPXP08VM2?
You can download the RVPXP08VM2 datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of RVPXP08VM2?
Amphenol Aerospace
