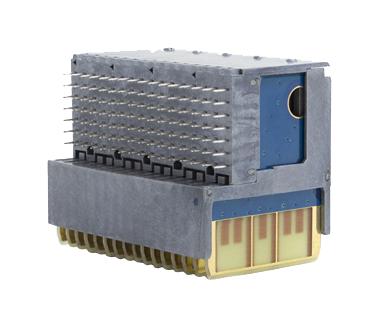

Amphenol Aerospace RVPXP16SM1 High-Speed Connector
The R-VPX system features a ruggedized, high-speed board-to-board interconnect capable of data transfer exceeding 10Gbps, compliant with and surpassing VITA 46 standards. It utilizes a modular PCB wafer construction with customizable loading patterns, offering flexibility for embedded computing applications in commercial and military aerospace, including C4ISR, missile defense, ground and space systems, and other harsh environments. This connector supports high-speed protocols such as 1000BASE-KX, 10GBASE-KX4, 10GBASE-KR10, 40GBASE-KR4, InfiniBand SDR, DDR, QDR, PCIe generations 1 through 3, Serial RapidIO from 2.5 to 6.25 Gbaud, and more. The module is a standard size with 16 positions, single-ended insert type, featuring a tin contact finish with 50 micro-inches plating, qualified to VITA 46, fully intermateable with existing VPX systems, and supports 0.8-inch card slot pitches, with a contact current rating of 1.5A. It is suitable for embedded aerospace, military, and industrial applications requiring reliable high-speed data transfer and modular connectivity.
Amphenol Aerospace RVPXP16SM1 High-Speed Connector Specifications:
- Number of Positions: 16
- Contact Finish: Tin, 50 micro-inches plating
- Cable Pitch: 0.8 inch (20.32 mm)
- Current Rating: 1.5A per contact
- Compliance: VITA 46 and VITA 47 standards
- Data Transfer: >10Gbps
- Application: Aerospace, military, embedded computing
- Compatibility: Fully intermateable with VITA 46 VPX connectors
- Module Size: Standard 16 position
- Insert Type: P1-P6 single-ended
- Connector Finish: Nickel overall
- Environmental Suitability: Harsh environments, aerospace industry
- Construction: Ruggedized PCB wafer with customizable patterns
Buy the Amphenol Series VPX High-Speed Connector: RVPX-P16SM1
Purchase the high-performance Amphenol RVPX P16SM1 connector online today. Designed for demanding aerospace and military environments, this ruggedized, modular connector supports data transfer exceeding 10Gbps, ensuring reliable high-speed communication. Its VITA-compliant construction with a tin contact finish, 0.8-inch card slot compatibility, and low mating force make it ideal for embedded computing, C4ISR, missile defense, and space systems. Secure your order now for superior durability and performance in harsh conditions.
Get Amphenol RVPX-P16SM1 today—built for high-speed data transfer and reliable aerospace applications.
Frequently Asked Questions
Where can I buy Amphenol Aerospace RVPXP16SM1?
You can click on the BUY or RFQ button to purchase RVPXP16SM1 from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part RVPXP16SM1?
You can download the RVPXP16SM1 datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of RVPXP16SM1?
Amphenol Aerospace
