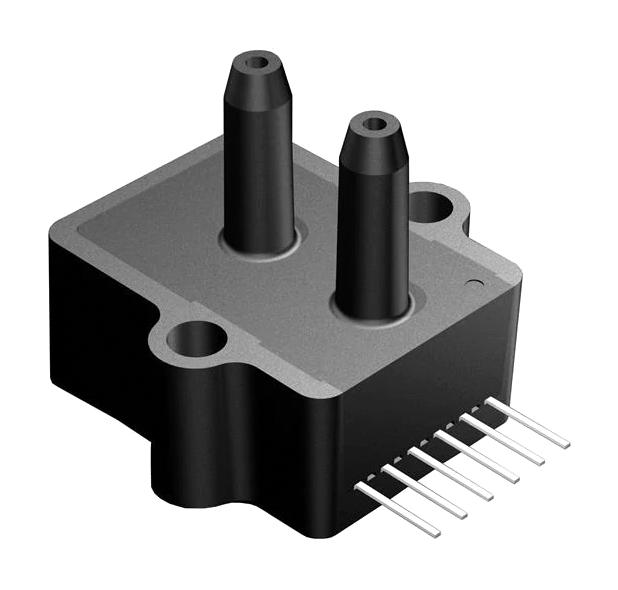

AMPHENOL ALL SENSORS 100PSIDHGRADEMV Millivolt Pressure Sensor
The high-accuracy millivolt output pressure sensor is designed for precise pressure measurement in various applications including HVAC, medical instrumentation, and environmental controls. Utilizing proprietary packaging technology, silicon micromachined structures, and temperature compensation, it provides stable, linear outputs from 0 to 4 inches H2O to 0 to 100 PSI. The sensor features a ratiometric output, operates from a DC supply up to 16 V, and is suitable for non-corrosive gases, offering excellent offset characteristics and performance over wide temperature ranges. Various pressure ranges are available, with high linearity and reliability for demanding environments.
AMPHENOL ALL SENSORS 100PSIDHGRADEMV Millivolt Pressure Sensor Specifications:
- Pressure ranges: 0-0.3 PSI, 0-5 PSI, 0-30 PSI, 0-150 PSI, 0-30 PSIA, 0-100 PSI
- Output span: 19.8-99 mV depending on range
- Supply Voltage: up to 16 V DC
- Input resistance: 20 k ohm
- Output resistance: 3.0 k ohm
- Operating temperature: -25°C to 85°C
- Storage temperature: -40°C to 125°C
- Lead temperature: 250°C (soldering)
- Humidity: 0-95% RH, non-condensing
- Max pressure: 150 PSI (proof), 250 PSI (burst)
- Dimensions: approximately 0.174 inches height, 0.107 inches pin size
- Materials: Silicon, stress-enhanced micromachined structure
- Approvals: Suitable for industrial and medical use
- Application: Precise pressure measurement in air, dry gases, non-corrosive fluids
Buy the Buy Accurate Millivolt Pressure Sensor Part Number 100PSIDHGRADEMV Online
Purchase the high-accuracy millivolt pressure sensor online today for precise pressure measurement in HVAC, medical, and environmental control systems. Designed with proprietary packaging technology, silicon micromachined structures, and temperature compensation, this sensor offers excellent linearity, offset stability, and durability across a wide temperature range. Operating from up to 16 V DC, it is suitable for non-corrosive gases and various pressure ranges. Ensure reliable performance and easy integration by ordering today for your industrial or scientific projects.
Order your Accurate Millivolt Pressure Sensor PartNumber 100PSIDHGRADEMV today and ensure reliable pressure measurement for your HVAC, medical, or environmental projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 100PSIDHGRADEMV?
You can click on the BUY or RFQ button to purchase 100PSIDHGRADEMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 100PSIDHGRADEMV?
You can download the 100PSIDHGRADEMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 100PSIDHGRADEMV?
AMPHENOL ALL SENSORS
