AMPHENOL ALL SENSORS DLVRL10DE1BDINI3F Digital Pressure Sensor
The DLVR Series Low Voltage Digital Pressure Sensors provide precise, stable measurements with digital output via I2C or SPI interfaces. Featuring all Sensors’ CoBeam™ Technology, these sensors deliver high accuracy better than 1.0% over temperature across pressure ranges from 0.5 to 60 inH2O. They are suitable for medical breathing, environmental controls, HVAC, industrial controls, and portable equipment. Options include parylene coating for moisture protection, and supply voltages of 3.3V or 5V. Compact, low-power, and reliable, these sensors ensure accurate pressure monitoring in various industrial and medical applications.
AMPHENOL ALL SENSORS DLVRL10DE1BDINI3F Digital Pressure Sensor Specifications:
- Pressure Range: 0.5 to 60 inH2O
- Supply Voltage: 3.3V or 5V
- Output Interface: I2C (standard), SPI (optional)
- Accuracy: Better than 1.0% over temperature
- Operating Temperature Range: -25°C to 85°C
- Proof Pressure: 300 inH2O (varies with model)
- Burst Pressure: Up to 800 inH2O
- Materials: Parylene coating optional for moisture/harsh media protection
- Response Time: Approximately 0.5 ms to 6 ms depending on configuration
- Resolution: 14-bit digital output; 12-bit missing codes detection
- Dimensions: Available in various DIP and barbed lid packages, detailed in datasheet
- Humidity Limits: 0 to 95% RH, non-condensing
- Lead Temperature (Soldering): 270°C for 2-4 seconds
- Storage Temperature: -40°C to 125°C

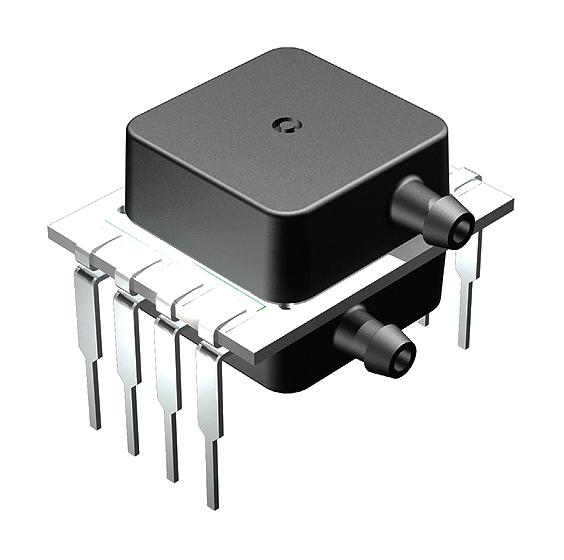

Buy the All Sensors DLVRL10DE1BD – Reliable Digital Pressure Sensors for Industrial Applications
Experience high-precision digital pressure measurement with the All Sensors DLVRL10DE1BD. Designed for medical, HVAC, and industrial systems, this sensor offers stable, accurate readings over a wide temperature range. Its compact size and low power consumption make it ideal for portable and embedded applications. Easily integrated via I2C or SPI interfaces, it features enhanced stability with optional moisture-resistant parylene coating. Order online today for reliable performance, long-term stability, and seamless integration into your control systems.
Get All Sensors DLVRL10DE1BD today—built for precision and long-lasting durability in medical and industrial pressure measurement.
