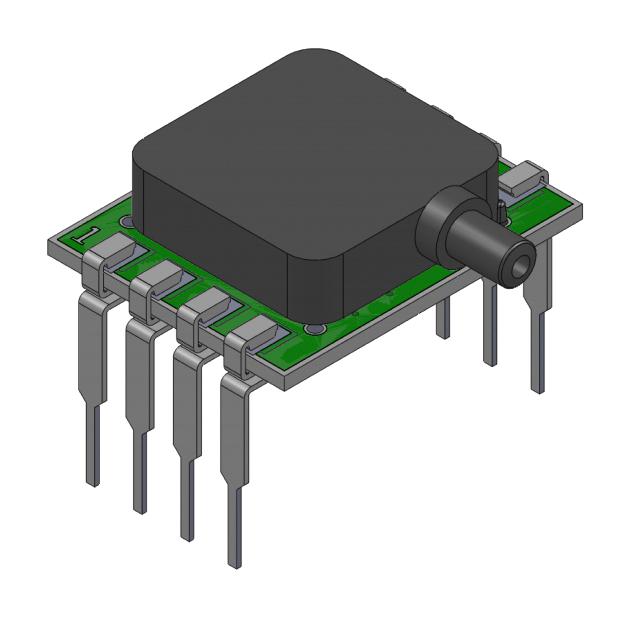

AMPHENOL ALL SENSORS ELVRL01GFNRDCN13F Pressure Sensor
The ELVR Series Mini Pressure Sensors utilize All Sensors' CoBeam Technology, offering high stability and sensitivity for low-pressure applications. Available with analog and digital outputs, these sensors operate on 3V or 5V supplies, providing rapid updates and accurate measurements for non-corrosive fluids like air and dry gases. Suitable for medical and industrial use, they feature miniature SIP and DIP packages and optional moisture-resistant parylene coating for ranges above 10 inH2O. Their robust design ensures long-term stability and precise pressure readings across a wide temperature range.
AMPHENOL ALL SENSORS ELVRL01GFNRDCN13F Pressure Sensor Specifications:
- Pressure Ranges: 1 to 30 inH2O (25 to 75 mbar)
- Supply Voltage: 3V (2.7 to 3.3 V) or 5V (4.5 to 5.5 V)
- Temperature Range: -25°C to 85°C
- Proof Pressure: 250 to 803 inH2O depending on model
- Burst Pressure: up to 2000 inH2O
- Output Options: Analog voltage and digital I2C/SPI
- Response Time: 0.5 ms (F option), 1 ms (H option)
- Linearity Error: ±0.05%FSS
- Hysteresis: ±0.02%FSS
- Humidity: 0-95% RH non-condensing
- Dimensions: Compact SIP and DIP packages
- Protection: Optional parylene coating for moisture resistance
- Calibration: Calibrated and compensated for accuracy
- Application: Medical, industrial, control systems
Buy the All Sensors ELVRL01GFNRDCN13F – Reliable Pressure Sensor for Industrial Applications
Enhance your industrial or medical pressure measurement system with the All Sensors pressure sensor. Designed for stability, this compact device features analog and digital outputs, operates on 3V or 5V, and offers quick response times for accurate readings. Its robust construction and optional moisture-resistant coating ensure long-term reliability in harsh environments. Compatible with microcontrollers via I2C or SPI, this sensor simplifies integration and improves system precision, making it an ideal choice for engineers seeking dependable low-pressure solutions.
Buy All Sensors ELVRL01GFNRDCN13F now and experience unmatched reliability and performance in precise low-pressure measurement projects.
