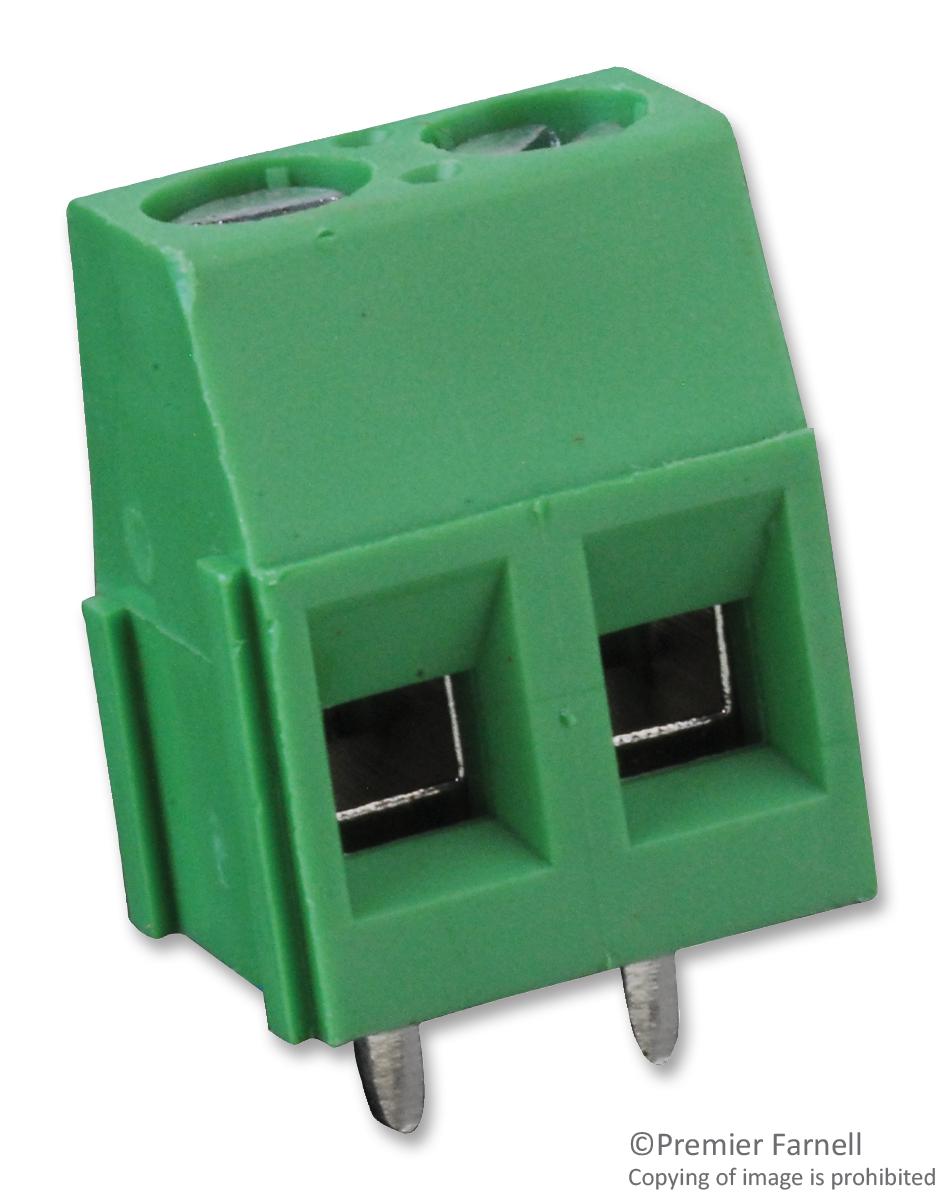

AMPHENOL ANYTEK 20020316H021B01LF Terminal Block
The 20020316-H021B01LF is a 2-position green fixed terminal block designed for signal and power connections. It features a thermoplastic housing with UL94V-0 flammability rating and uses tin-plated brass terminals. The terminal block employs proven rising-cage-clamp technology for reliable, long-lasting connections, and includes support tools for easy integration, such as access to FCI's terminal block microsite. The design incorporates a zinc-plated steel screw and a nickel-plated copper alloy clamp, ensuring durability and robustness. It is suitable for PCB mounting and offers up to 200 mating cycles for high durability in demanding applications.
AMPHENOL ANYTEK 20020316H021B01LF Terminal Block Specifications:
- Housing Material: Thermoplastic resin, UL 94V-0 rated
- Color: Green (RAL 6018)
- Number of Poles: 2
- Pitch: 5.00 mm
- Contact Material: Copper alloy, nickel-plated
- Screw Material: Steel, zinc-plated
- Screw Size: 3.2 mm (M3.2)
- Wire Range: 12-26 AWG
- Wire Cross Section: 0.75-2.5 mm²
- Openings (mm): 2.1 x 2.7
- Rated Voltage: 300 VAC
- Rated Current: 16 A
- Max Wire Strip Length: 6 x 7 mm
- Wing Clamp: Copper alloy, nickel-plated
- Number of Mating Cycles: up to 200
- Operating Temperature: -40°C to +115°C
- Shear Strength: Compatible with rising-cage clamp technology
- Certification: Pending safety approval
- Soldering Temperature: 250°C for 5 seconds
- Product Compatibility: Suitable for PCB mounting, signal, and power applications
Buy the FCI 20020316H021B01LF – Reliable Signal Connection Terminal Block for Industrial Applications
Secure your signal and power connections with the high-durability terminal block available online. Designed for PCB mounting, it features a robust thermoplastic housing and proven cage clamp technology, ensuring reliable, long-lasting performance. Easy to install with support tools and capable of up to 200 mating cycles, this terminal block is perfect for demanding industrial environments. Order now and enjoy fast delivery, quality assurance, and seamless integration into your projects for enhanced operational reliability and safety.
Buy FCI 20020316H021B01LF now and experience unmatched durability and reliable power connections with high cycle life in demanding industrial environments.
