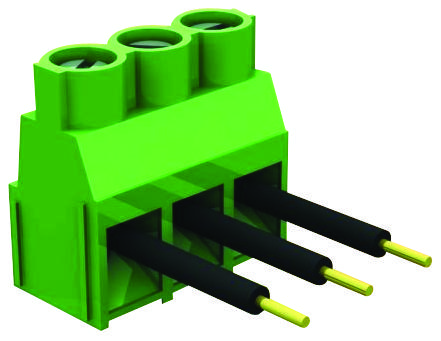

AMPHENOL ANYTEK 20020316H031B01LF Terminal Block
The product is a versatile terminal block designed for wiring and electrical connections with a pitch of 5.08 mm. It supports up to 24 poles, with a voltage rating of 300 VAC and current capacity of 16 A. Made from thermal plastic resin rated UL 94V-0, the housing is zinc plated steel, ensuring durability and safety. It features a compact size, efficient wire range from 12 to 28 AWG, and a maximum operating temperature of -40°C to 115°C. The terminal block ensures reliable connections with detailed specifications for soldering, wire strip length, torque, and insulation.
AMPHENOL ANYTEK 20020316H031B01LF Terminal Block Specifications:
- Pitch: 5.08 mm
- Number of Poles: Up to 24
- Voltage Rating: 300 VAC
- Current Rating: 16 A
- Housing Material: UL 94V-0 rated thermal plastic resin
- Housing Color: Green, Grey, Blue (on request)
- Housing Size: 13.5 mm width, 9 mm height
- Wire Range: 12-28 AWG
- Wire Strip Length: 6x7 mm
- Maximum Operating Temperature: -40°C to 115°C
- Soldering Temp: 250°C for 5 seconds
- Withstanding Voltage: 1.6 kV
- Installation Torque: 0.40 N·m (3.5 lb-in)
- Connector Type: Screw type, Zinc-plated steel screw
- Certification: Pending safety certificates
- Packaging: Boxed
Buy the FCL Series 21-508 Terminal Block: 20020316H031B01LF
Purchase the FCL Series 21-508 terminal block online today and enjoy a highly durable, high-quality connector supporting up to 24 poles. Designed for easy installation, it features a versatile wire range of 12 to 28 AWG, UL-rated plastic housing, and excellent voltage and current ratings. This terminal block is ideal for industrial wiring, control panels, and electrical systems requiring secure, reliable connections with a maximum operating temperature of 115°C. Order now to enhance your electrical infrastructure with trusted components.
Order your FCL Series 21-508 terminal block with 24 poles today and ensure reliable, durable electrical connections for your projects.
Frequently Asked Questions
Where can I buy AMPHENOL ANYTEK 20020316H031B01LF?
You can click on the BUY or RFQ button to purchase 20020316H031B01LF from an authorized AMPHENOL ANYTEK distributor.
How do I troubleshoot issues or seek technical support for part 20020316H031B01LF?
You can download the 20020316H031B01LF datasheet or visit the AMPHENOL ANYTEK website for support.
Who is the manufacturer of 20020316H031B01LF?
AMPHENOL ANYTEK
