A Premier B2B Part Search

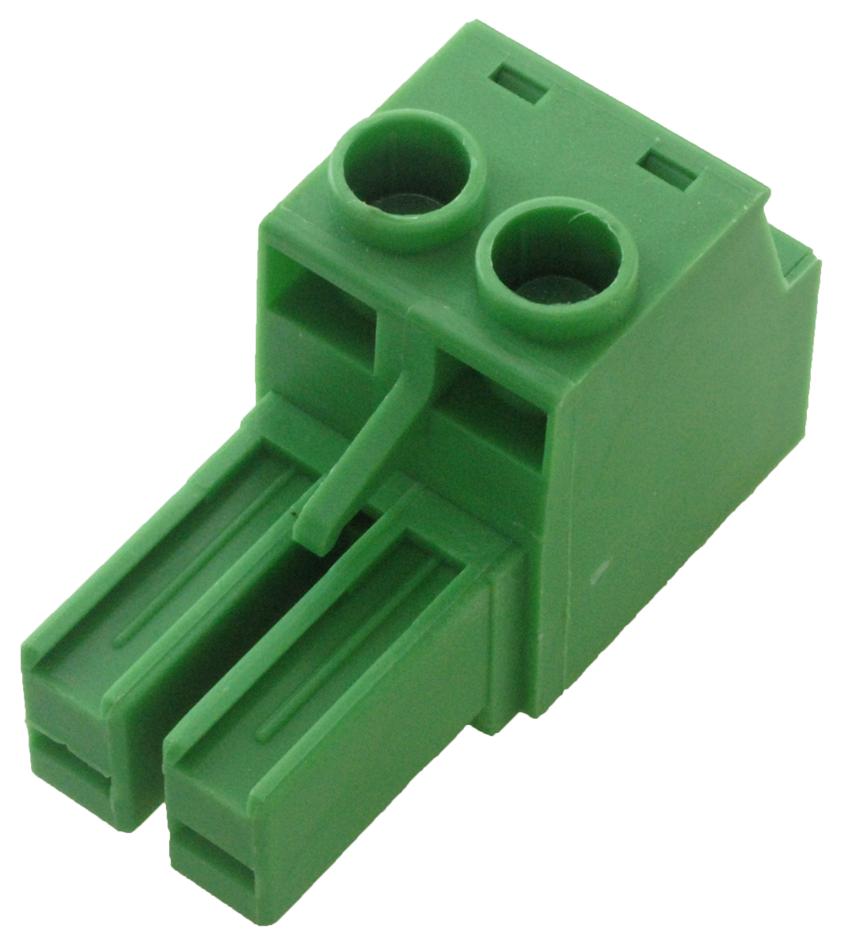

AMPHENOL ANYTEK 20020516M021B01LF Terminal Block

Name: 20020516M021B01LF - Electronic Component
Brand: AMPHENOL ANYTEK
SKU: 20020516M021B01LF
Price: 0.616 USD
Availability: InStock
Rating: 5.0 (1 reviews)

The 20020516-M021B01LF is a 2-position pluggable terminal block designed for wire sizes from 24 to 10 AWG. It features a flame-retardant thermoplastic housing, a zinc-plated steel screw, a nickel-plated copper alloy clamp, a tin-plated copper alloy terminal, and a stainless steel wire guard. Rated for 1.6 kV and operating within -40°C to +115°C, it complies with UL 94V-0 standards, making it suitable for industrial automation, control systems, and wiring applications requiring reliable, safe electrical connections.

Buy FCI Terminal Block Part Number 20020516-M021B01LF Online

View 20020516M021B01LFDatasheet [pdf]

AMPHENOL ANYTEK 20020516M021B01LF Terminal Block Specifications:

Housing Material: Thermoplastic resin, UL 94V-0 rated
Screw Material: Zinc-plated steel
Clamp Material: Copper alloy, nickel plated
Terminal Material: Copper alloy, tin plated
Wire Range: 24-10 AWG
Number of Poles: 2
Rated Voltage: 1.6 kV
Operating Temperature: -40°C to +115°C
Flammability Rating: UL 94V-0
Wire Guard: Stainless Steel
Dimensions: Length varies with number of poles, approx. 0.3 inches per pole, overall length depending on pole count
Soldering Temp: 250°C for 5 seconds

Buy the Buy FCI Terminal Block Part Number 20020516-M021B01LF Online

Enhance your wiring projects with the FCI terminal block, model 20020516-M021B01LF. Designed for 24-10 AWG wires, it features UL 94V-0 flame retardant housing, zinc-plated steel screws, and stainless steel wire guards for durability and safety. Suitable for industrial control systems, automation, and wiring applications, this 2-pole pluggable terminal block offers reliable electrical connections. Easy to install, with temperature tolerance from -40°C to +115°C and rated at 1.6 kV voltage, buy online now for fast delivery and quality assurance.

Order your FCI Series20020516-M021B01LF terminal block today and ensure your electrical connections are secure, reliable, and compliant with industrial standards.
