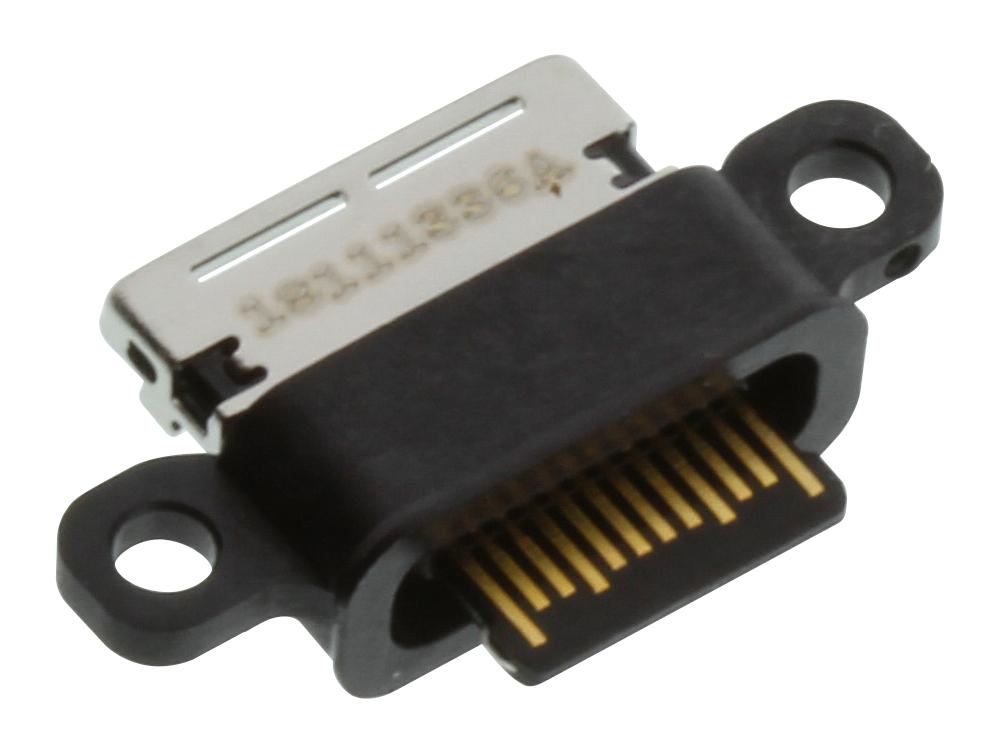

AMPHENOL COMMERCIAL PRODUCTS 124019322112A Waterproof USB Type C Connector
The Amphenol Commercial Products Waterproof USB Type C connector is a next-generation interface designed for a wide range of applications. It supports multiple USB protocols, including USB 2.0, USB 3.1 Gen 1, and Gen 2, enabling high-speed data transfer up to 10Gb/s and supporting a 5A power supply. The connector's reversible design, compact size, and waterproof construction (IPX2 to IPX8 ratings) make it suitable for applications in mobile devices, VR cameras, industrial computers, and medical equipment. It features a high-temperature polymer housing, copper alloy contacts, and a stainless steel shell, ensuring durability and reliability.
AMPHENOL COMMERCIAL PRODUCTS 124019322112A Waterproof USB Type C Connector Specifications:
- USB Version: USB 3.1 Gen 1 & Gen 2
- Data Rate: Up to 10Gb/s
- Current Rating: 5A
- Power Supply: 20V
- Contact Resistance: 40m Ω max.
- Insulation Resistance: 100m Ω min.
- Dielectric Withstanding Voltage: 100V AC
- Housing Material: High Temperature Polymer (UL94V-0)
- Contact Material: Copper Alloy
- Shell Material: Stainless Steel
- Insertion Force: 5N to 20N
- Extraction Force: 8N to 20N
- Durability: 10,000 mating cycles
- Ingress Protection: IPX2 to IPX8
- Liquid Height: 0.40
- Termination Type: DIP
- Mounting Configuration: Dual Row SMT
- Liquid Center: Top, Middle
- Orientation: Top
- Liquid Ingress Protection: IPX4, IPX8, IPX3
- Screw Hole: Plate
- Short Body: Yes
Buy the 124019322112A AMPHENOL COMMERCIAL PRODUCTS Waterproof USB Type C Connector | myMectronic
Purchase the AMPHENOL COMMERCIAL PRODUCTS 124019322112A Waterproof USB Type C Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMERCIAL PRODUCTS 124019322112A?
You can click on the BUY or RFQ button to purchase 124019322112A from an authorized AMPHENOL COMMERCIAL PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part 124019322112A?
You can download the 124019322112A datasheet or visit the AMPHENOL COMMERCIAL PRODUCTS website for support.
Who is the manufacturer of 124019322112A?
AMPHENOL COMMERCIAL PRODUCTS
