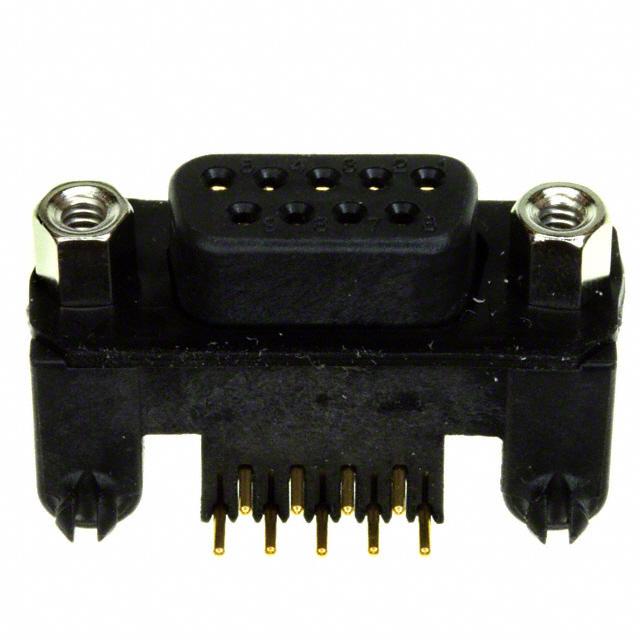

AMPHENOL COMMERCIAL PRODUCTS MDBE09SA700 Rugged D-Sub Connector Socket
The Amphenol MDBE09SA700 is a robust D-Sub connector socket engineered for reliable performance in challenging industrial settings. Its high-strength thermoplastic housing provides durability, while the gold-plated copper alloy contacts ensure excellent signal integrity and corrosion resistance. The silicone rubber gasket provides an IP67-rated seal, protecting against dust and water ingress. Ideal for applications requiring a secure and environmentally protected connection, such as industrial automation, transportation, and outdoor equipment. The connector is RoHS compliant and designed to meet stringent performance requirements.
AMPHENOL COMMERCIAL PRODUCTS MDBE09SA700 Rugged D-Sub Connector Socket Specifications:
- Mounting: Epoxy Sealing
- Jack Screw: 0.491
- Sealing Gasket: 5.00±0.25
- Plastic Moulded: 6.17
- Shell Plastic Boardlocks: 16.33
- Thread Depth: 30.81±0.30
- Min. Thread Depth: 0.51
- Jack Socket: 3.05
- Dimensions: 19.02
- Dimensions2: 18.65
- Dimensions3: 24.99±0.08
- Dimensions4: 12.55±0.25
- Dimensions5: 10.46
- Dimensions6: 8.07
- Dimensions7: 2.84
- Dimensions8: 10.97±0.05
- Dimensions9: 31.81
- Dimensions10: 1.252
- Material Housing: High Strength Thermoplastic, 94V-0 Flammability Rating, Black
- Material Contacts: Machined Copper Alloy, Plated with 0.5 µm Gold over 1.27 µm Nickel
- Material Gasket: Silicone Rubber Black
- Material Jack Sockets: Nickel Plated Brass
- Environmental Performance: IEC 60529 Code IP67
- Current Rating: 5 Amperes
- Operating Temperature: -40°C to +105°C
- Contact Resistance: 30 Milliohms Maximum
- RoHS Compliant: Yes
- Recommended Panel Cutout: 24.99
- Recommended P.C.B. Layout: Component Side on Board
