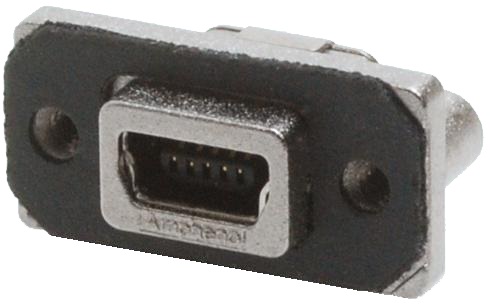

AMPHENOL COMMERCIAL PRODUCTS MUSBB15104 Rugged Mini-B USB Receptacle
The Amphenol MUSBB15104 is a rugged Mini-B USB receptacle engineered for reliable performance in industrial applications. This connector features a right-angle PCB tail configuration, facilitating space-constrained designs. Constructed with a die-cast zinc alloy outer shell, nickel-plated contacts, and an engineering thermoplastic housing, it provides durability and resistance to environmental factors. RoHS compliant and designed for secure panel mounting, the MUSBB15104 is a dependable solution for various electronic systems requiring robust USB connectivity. Optional dust covers are available for added protection.
AMPHENOL COMMERCIAL PRODUCTS MUSBB15104 Rugged Mini-B USB Receptacle Specifications:
- Material: Outer Shell: Die Cast Zinc Alloy, Nickel Plated; Contacts: Phosphor Bronze, Plated with 0.76 microns Gold over 1.27 microns Nickel; USB Housing: Engineering Thermoplastic, UL94V-0; USB Shell & Rear Shield: Copper Alloy, Nickel Plated; Gasket: Poron with Adhesive Backing; Dust Cover: Silicone Rubber with Nickel Plated Copper Alloy Bushing
- Contact Position: 1
- Contact Tail: 0.65 x 0.26
- Current Rating: 1 Ampere
- Contact Resistance: 50 Milliohms Maximum
- Operating Temperature: -40 C to +105 C
- RoHS Compliant: Yes
- Thread Option: UNC
- Dust Cover Option: 0 or 1
- Panel Thickness: 1.20 to 2.50mm
- Mounting Screw Torque: 0.23 to 0.34 N.m (2.00 to 3.00 IN-LBS)
Buy the MUSBB15104 AMPHENOL COMMERCIAL PRODUCTS Rugged Mini-B USB Receptacle | myMectronic
Purchase the Amphenol MUSBB15104 Rugged Mini-B USB Receptacle securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMERCIAL PRODUCTS MUSBB15104?
You can click on the BUY or RFQ button to purchase MUSBB15104 from an authorized AMPHENOL COMMERCIAL PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part MUSBB15104?
You can download the MUSBB15104 datasheet or visit the AMPHENOL COMMERCIAL PRODUCTS website for support.
Who is the manufacturer of MUSBB15104?
AMPHENOL COMMERCIAL PRODUCTS
