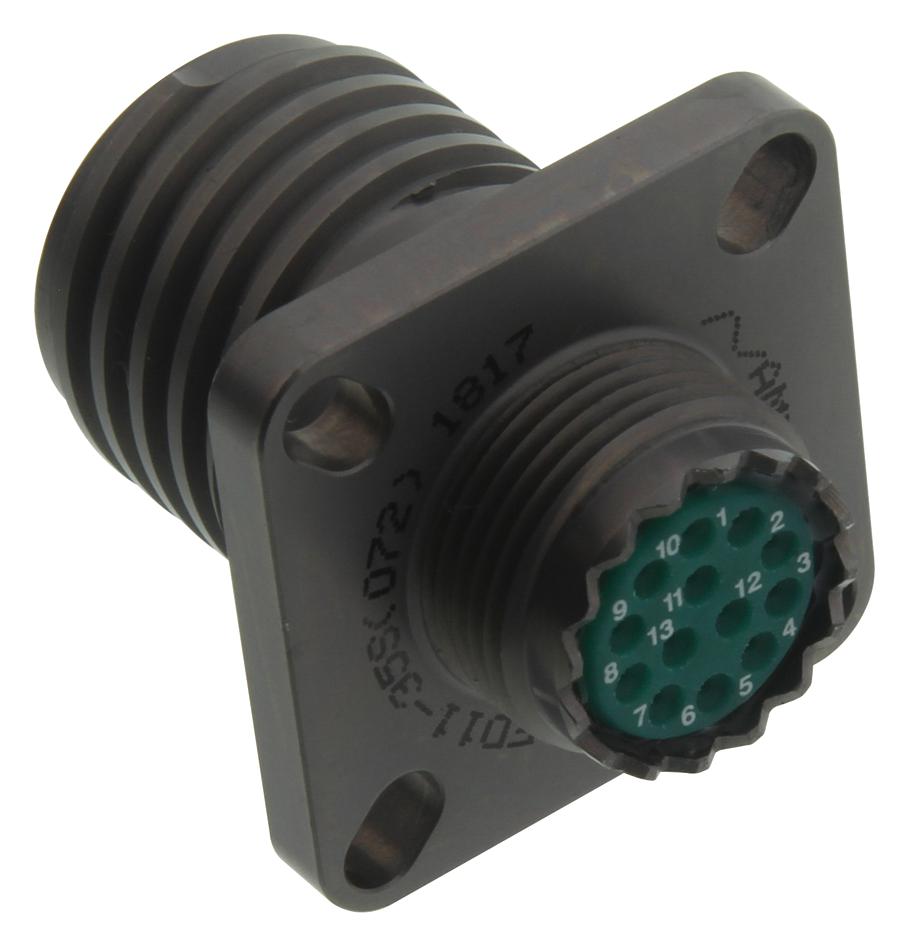

AMPHENOL INDUSTRIAL ALM00FD1135S072 High-Performance Circular Connector
Amphenol's Amphe-Lite M3 is a high-performance connector designed for harsh environments, based on MIL-DTL-38999 Series III standards. It features silicone seals for fluid resistance, EMI shielding through metal-to-metal bottoming, and a quick-mating Acme thread coupling for ease of installation. The connector is scoop-proof with recessed pins, providing durability and protection against contact damage. It supports various shell sizes and keyways, with optional Gray Zinc Nickel plating for corrosion resistance. Suitable for control systems, aerospace, telecommunications, medical instrumentation, and high-performance test equipment, the Amphe-Lite M3 ensures reliable, robust performance in demanding applications.
AMPHENOL INDUSTRIAL ALM00FD1135S072 High-Performance Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Relative Humidity: Up to 98% at 40°C
- Mating Life: Minimum 500 cycles
- Insulation Resistance: > 100 MΩ under humid conditions
- Flammability: UL94 V-0
- Salt Spray Resistance: Gray Zinc Nickel plating withstands 500 hours
- EMI Shielding: Attenuation of at least 50dB from 100MHz to 10GHz
- Contact Resistance: ≤0.5mΩ depending on size
- Current Ratings: Ranges from 5A to 23A depending on contact size
- Vibration Resistance: Sine and random vibration tested
- Shock Resistance: Peaks of 300g in half-sine shock
- Number of shell sizes: 9, with keyway options to prevent mismating
- Insert patterns: 17 with IP67 rating when mated
- Thread Type: Acme, with corrosion-resistant Gray ZnNi coating
Buy the Amphenol Series Amphe-Lite M3 Connector: ALM00FD1135S072
Discover the quality and durability of the Amphenol Amphe-Lite M3 connector ALM00FD1135S072. Designed for demanding environments, it features quick Acme thread coupling, scoop-proof pins, and superior silicone seals for fluid resistance. Its robust construction includes EMI shielding and corrosion-resistant Gray ZnNi plating for up to 500 hours of salt spray resistance. Ideal for aerospace, control systems, telecommunications, and medical instrumentation, this connector guarantees reliable, long-lasting connections, easy installation, and excellent vibration and shock resistance. Order online today to ensure seamless deployment in your critical applications.
Buy Amphenol Amphe-Lite M3 connector ALM00FD1135S072 now and experience unmatched durability, quick-mating, and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ALM00FD1135S072?
You can click on the BUY or RFQ button to purchase ALM00FD1135S072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ALM00FD1135S072?
You can download the ALM00FD1135S072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ALM00FD1135S072?
AMPHENOL INDUSTRIAL
