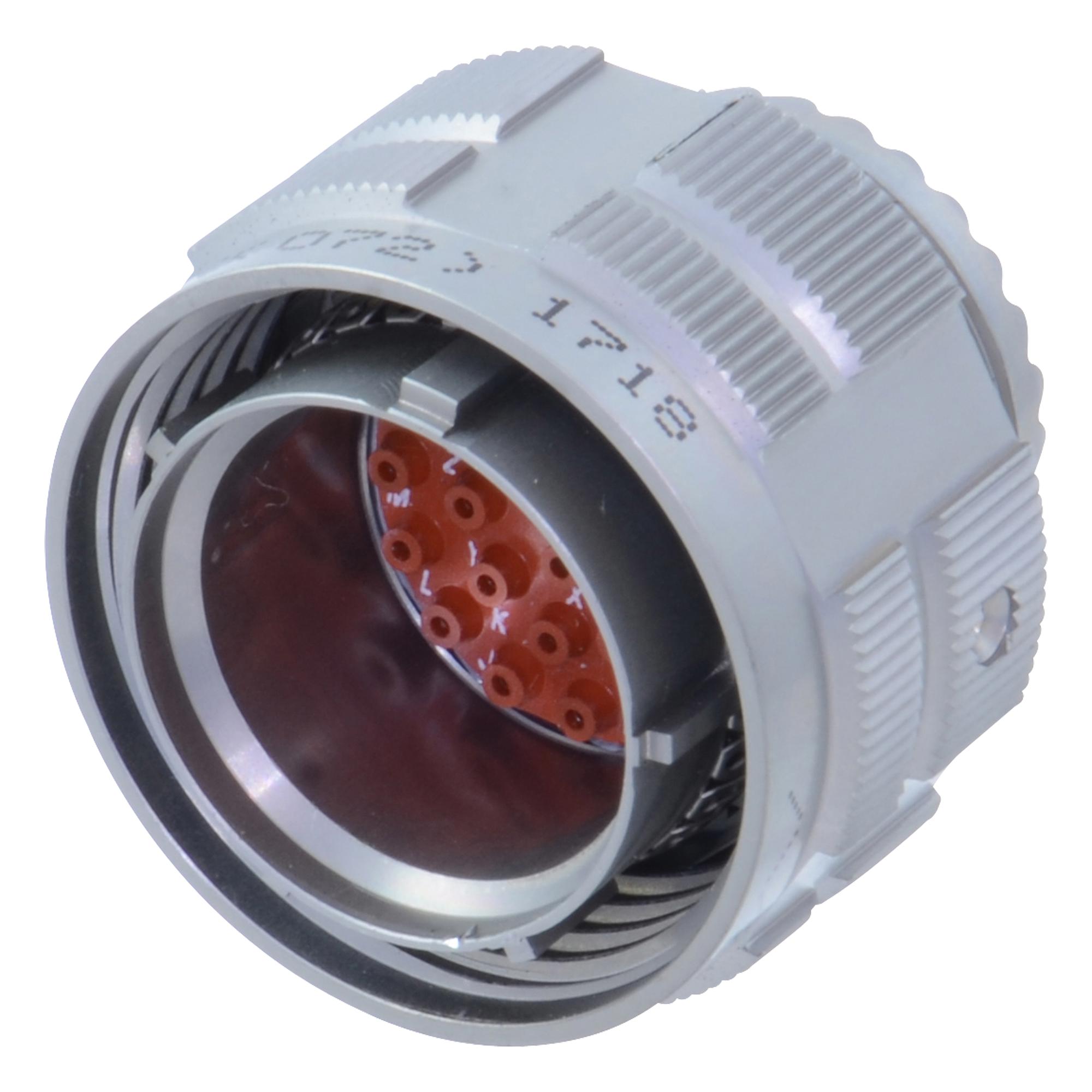

AMPHENOL INDUSTRIAL ALM06FD112S Circular Connector
Amphenol's Amphe-Lite M3 is a durable, high-performance circular connector designed for harsh environments and critical applications such as military, aerospace, and industrial systems. Based on MIL-DTL-38999 Series III specifications, it features a bayonet coupling, superior silicone seals for fluid resistance, recessed pins to prevent damage, and a rigid dielectric insert for long-lasting protection. With Gray ZnNi plating, it offers 500 hours of salt spray resistance, excellent EMI shielding, and quick-mate design for efficient assembly and maintenance, suitable for control systems, aircraft, telecommunication equipment, and medical instruments.
AMPHENOL INDUSTRIAL ALM06FD112S Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Material: Rigid dielectric insert, silicone seals
- Sealing: Silicone seals providing fluid resistance
- EMI Shielding: 100MHz to 10GHz, minimum attenuation 50dB
- Salt Spray Resistance: Gray ZnNi plating, 500 hours
- Mating Cycles: Minimum 500 cycles
- Vibration Resistance: Sine and random vibration standards followed
- Shock Resistance: 300g for 3ms half-sine
- Physical Dimensions: Shell sizes 13, 15, 17, 19, 21, 23, 25 with corresponding thread sizes M12x1.6g to M37x1.69
- Dimensions: Shell diameter ranges from approx. 1.123 to 2.188 inches depending on shell size
- Contact Resistance: Less than 12 mΩ for 22D size, less than 5 mΩ for 20 size, less than 25 mΩ for 16 size, less than 15 mΩ for 12 size
- Current Rating: 22D contact 5A, 20 contact 75A, 16 contact 13A, 12 contact 23A
Buy the Buy Amphenol ALM06FD112S Circular Connector Part Number Online
Order the Amphenol ALM3 high-performance circular connector today online and optimize your industrial, aerospace, or military systems. This connector offers exceptional fluid resistance, EMI shielding, quick-mate bayonet coupling, and robust construction to withstand harsh conditions. Its MIL-DTL-38999 compliance ensures high durability, while Gray ZnNi plating provides excellent corrosion resistance. Whether for control systems, aircraft, telecommunication equipment, or medical instrumentation, purchase online now for fast delivery and confident application in demanding environments, ensuring reliable performance every time.
Buy Amphenol ALM3 now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ALM06FD112S?
You can click on the BUY or RFQ button to purchase ALM06FD112S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ALM06FD112S?
You can download the ALM06FD112S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ALM06FD112S?
AMPHENOL INDUSTRIAL
