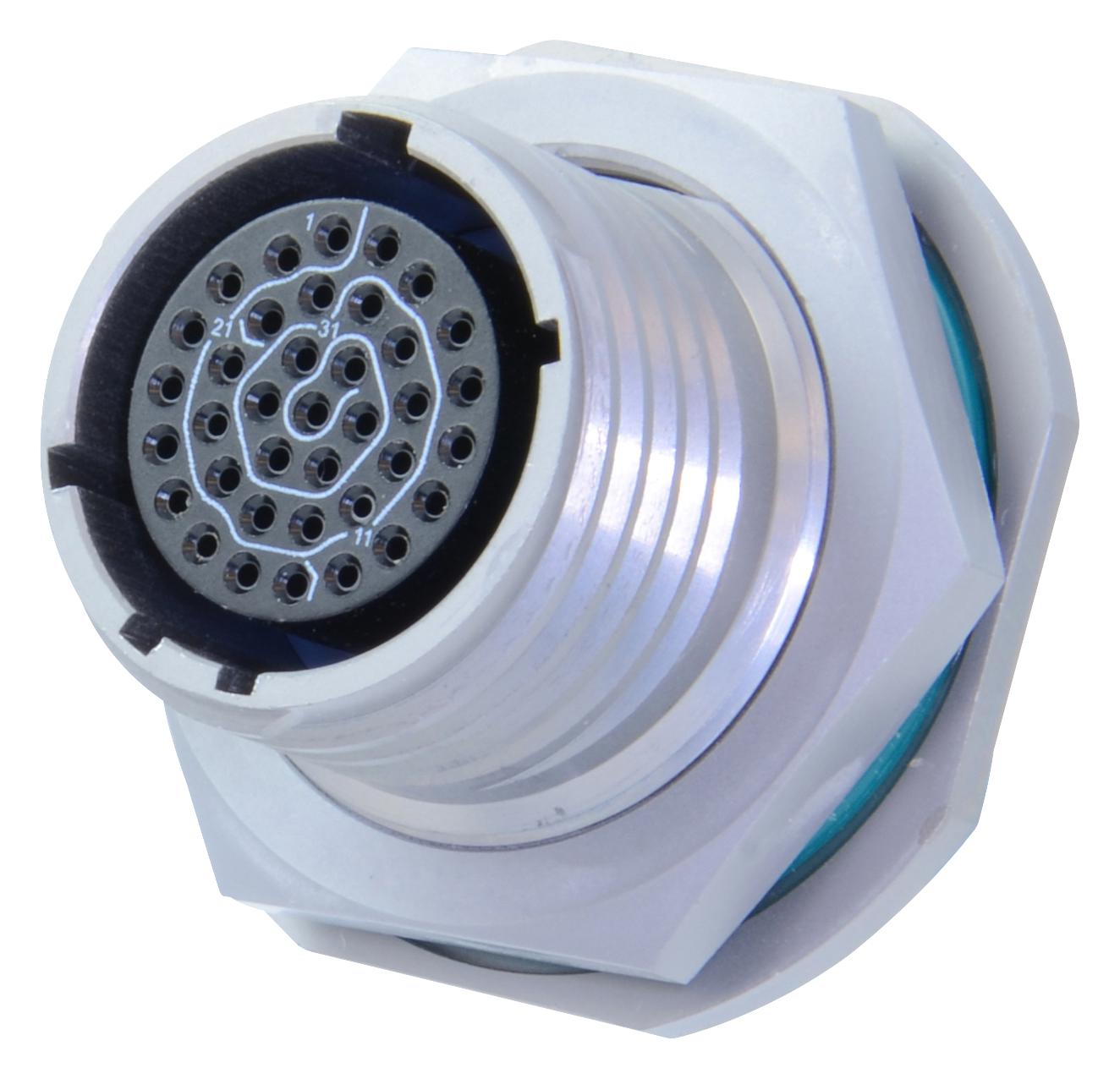

AMPHENOL INDUSTRIAL ALM07FD1535S072 Circular Connector
The Amphe-Lite M3 series is a high-performance, durable circular connector designed for harsh environments and military-grade applications. It features scoop-proof shells, rigid dielectric inserts, and superior silicone seals that provide excellent fluid resistance and EMI shielding. The connectors support quick-mate bayonet coupling, high vibration resistance, and corrosion protection with Gray ZnNi plating. Designed for control systems, aerospace, telecommunications, medical instrumentation, and vehicle interconnects, it ensures reliable connectivity with a minimum of 500 mating cycles, IP67 rated sealing, and broad shell size and keyway options for versatile configurations.
AMPHENOL INDUSTRIAL ALM07FD1535S072 Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Cycles: Minimum 500
- Shielding: EMI attenuation >50dB from 100MHz to 10GHz
- Salt Spray Resistance: 500 hours with Gray ZnNi plating
- Shell Sizes: 9, 11, 13, 15, 17, 19, 21, 23, 25 with various keyway options
- Shell Material: Aluminum alloy, plated with Gray ZnNi
- Sealing: Silicone seals providing fluid resistance and IP67 rating when mated
- Electrical: High dielectric strength, suited for high voltage and medium/high current applications
- Vibration & Shock Resistance: Vibration frequency 10-2000Hz, shock peak 300g
- Contact Material: Copper alloy, plated for corrosion resistance
- Dimensions: Refer to detailed shell dimension charts, fitting a range of cable sizes and connector patterns
- Standards: Compliant with MIL-DTL-38999 Series III, RoHS, UL94 V-0 flammability
Buy the Buy Amphenol Circular Connector Part Number ALM07FD1535S072 Online
Discover the outstanding durability and reliability of the Amphenol circular connector ALM07FD1535S072. Perfect for harsh environments, this high-performance connector offers scoop-proof design, excellent EMI shielding, and corrosion resistance with Gray ZnNi plating. Its quick-mate bayonet coupling, IP67 sealing, and broad shell size options facilitate versatile configurations for aerospace, control systems, telecommunications, and medical applications. Designed for up to 500 mating cycles, it guarantees secure and dependable connectivity in demanding industrial and military settings. Order online now for fast delivery and peace of mind.
Order your Amphenol SeriesALM07FD1535S072 circular connector today and ensure reliable performance in demanding industrial, aerospace, or military projects.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ALM07FD1535S072?
You can click on the BUY or RFQ button to purchase ALM07FD1535S072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ALM07FD1535S072?
You can download the ALM07FD1535S072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ALM07FD1535S072?
AMPHENOL INDUSTRIAL
