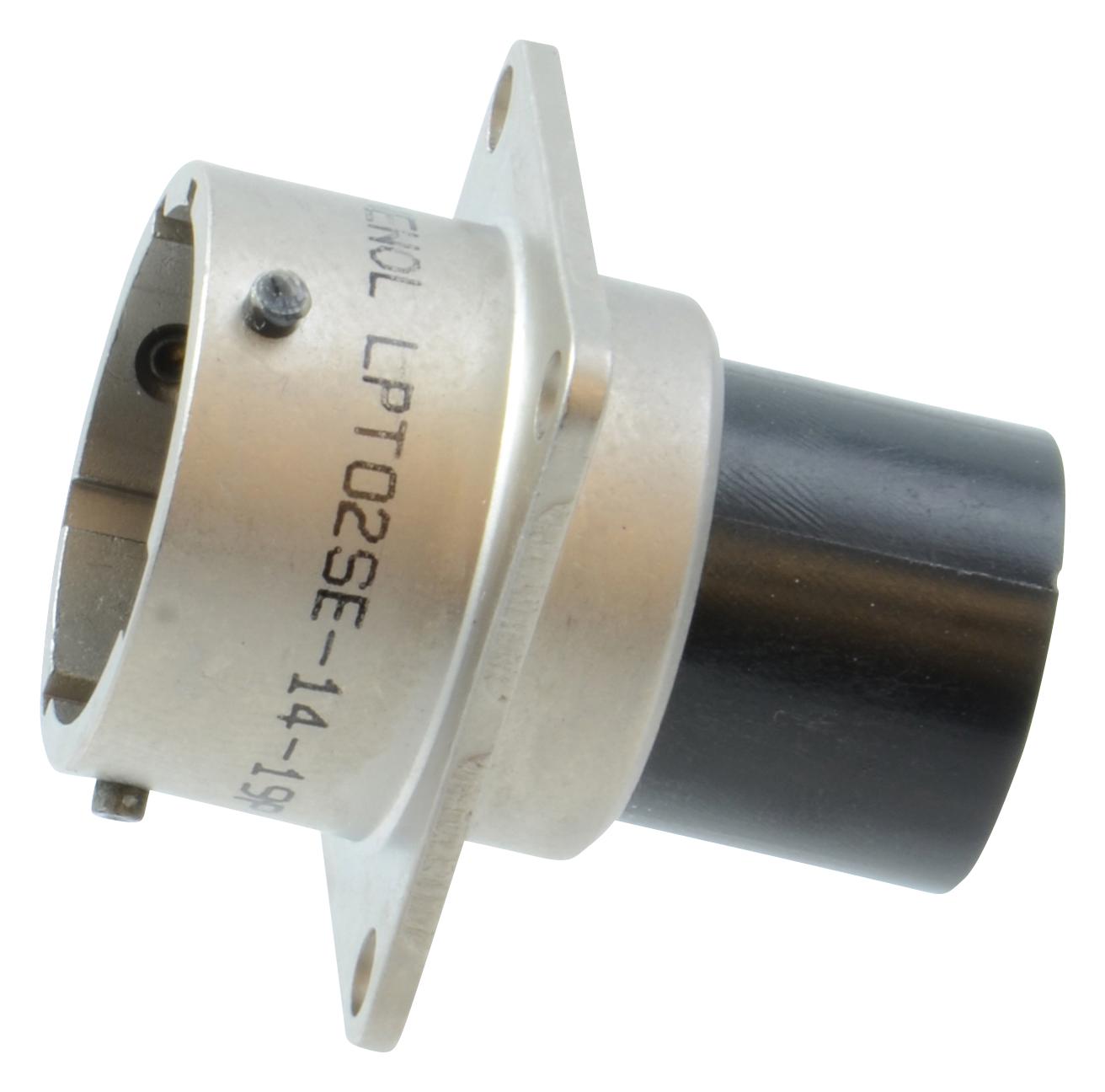

AMPHENOL INDUSTRIAL LPT02SE1210P023LC Industrial Circular Connector
The Amphenol LPT Series is a lightweight, robust circular connector designed based on MIL-C-26482 Series I and the original PT series. It features an aluminum shell with a standard PT shell and coupling nut, ensuring compatibility with the PT series. The connector includes three retention tines with stamped and formed crimp contacts that facilitate easy insertion and reliable retention. It supports wire gauges from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²) and offers quick positive coupling with a 5-key/keyway system to prevent mismating. Available in five styles, including box mounting, jam nut, straight plug, wall mounting, and cable connecting configurations.
AMPHENOL INDUSTRIAL LPT02SE1210P023LC Industrial Circular Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Material: Copper alloy
- Contact Plating: Tin/Nickel/Gold plated
- Termination: Crimp
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K when mated
- Maximum Current (20# contact): 7.5A
- Maximum Current (16# contact): 13A
- Maximum Current (12# contact): 23A/35A with RADSOK®
- Recommended Voltage: 250V
- Operating Voltage: 500V
- Test Voltage AC: 2300V
- Mating Cycles: 500
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Insert Sizes: #8 to #24
- Temperature Range: -40°C to +125°C
- Shell Protection: Up to IP67 and IP69K in mated condition
- Service Class: General duty, strain relief, weatherproof, heat shrink boot, cable gland
Buy the Amphenol Series LPT Industrial Circular Connector Part Number LPT02SE1210P023LC
Shop the Amphenol LPT Series industrial circular connector online today and enjoy quick, reliable delivery. Designed for harsh environments, this lightweight connector features an aluminum shell, multiple mounting styles, and crimp contacts supporting wire gauges from 22 to 12 AWG. Its robust construction provides IP67 and IP69K ingress protection, high shock resistance, and a temperature range from -40°C to +125°C. Choose from style options including box mounting, jam nut, straight plug, wall mount, and cable connecting. Perfect for industrial instrumentation, automation, and heavy equipment.
Order your Amphenol Series LPT02 connector today and ensure a durable, high-quality connection suitable for tough industrial applications.
