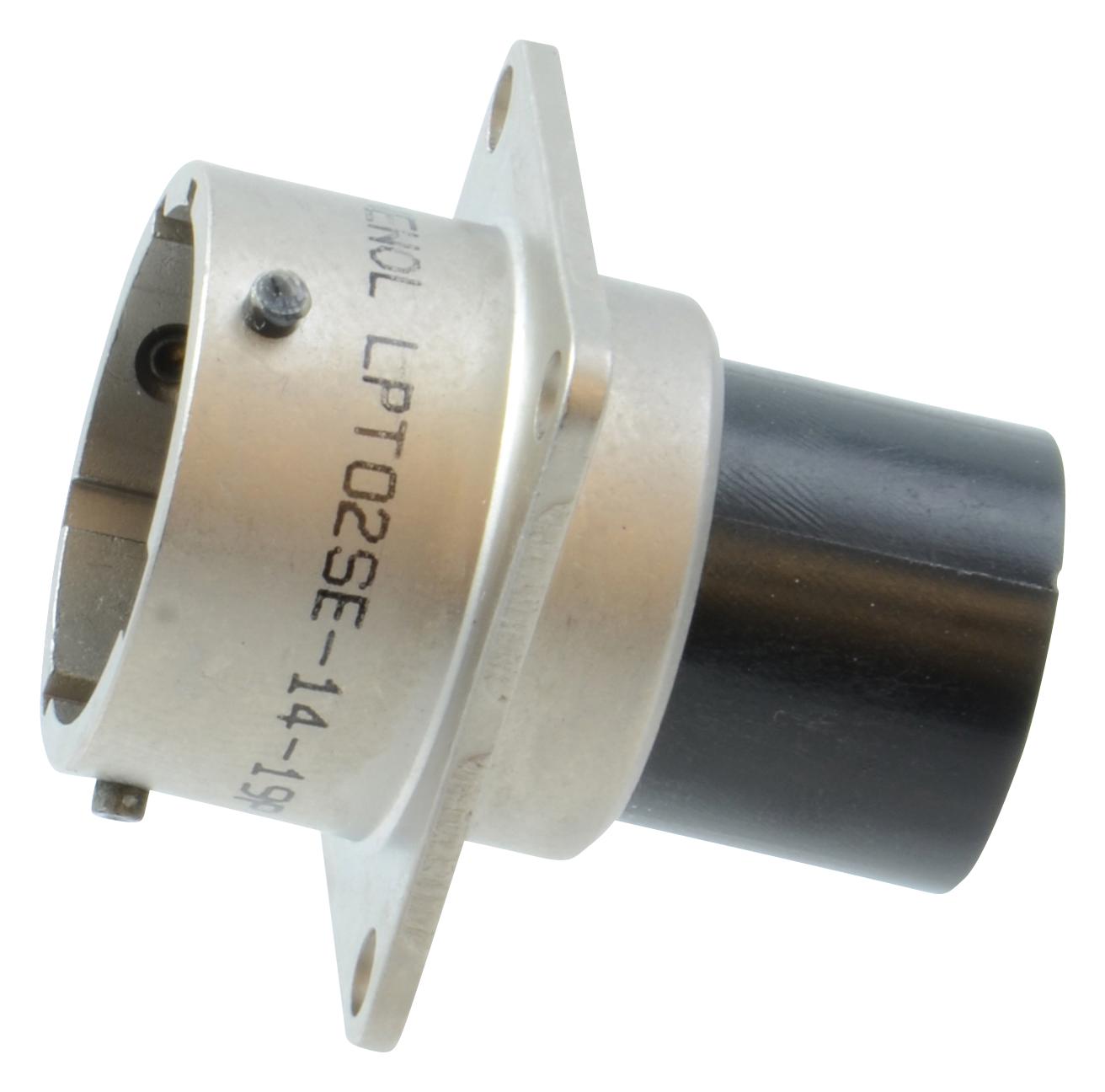

AMPHENOL INDUSTRIAL LPT02SE1626P023LC LPT Series Connector
The Amphenol Industrial LPT Series connector is a lightweight, aluminum shell connector based on the MIL-C-26482 Series I standard and the original PT series. It features a standard PT shell with a coupling nut for easy mating and compatibility with PT series connectors. The connector includes three retention tines with stamped and formed crimp contacts, allowing for secure wire termination and accommodating wire gauges from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²). It offers quick positive coupling and a five-key/keyway mating system to prevent mismating. Available in five shell styles, including box mounting, jam nut, straight plug, wall mounting, and cable connecting configurations. Suitable for applications in automation, process control, commercial vehicles, energy, industrial automation, instrumentation, and power management.
AMPHENOL INDUSTRIAL LPT02SE1626P023LC LPT Series Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Material: Copper alloy
- Contact Plating: Tin/Nickel/Gold plated
- Termination: Crimp
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K when mated
- Current Rating: 20# contact 7.5A, 16# contact 13A, 12# contact 23A/35A with RADSOK®
- Operating Voltage: Up to 500V
- Test Voltage AC: Up to 2300V
- Mating Cycles: 500 Cycles
- Operating Environment: Harsh environments, vibration, shock resistance
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Key/Keyway Mating: 5 keys/keyways system
- Operating Temperature Range: -40°C to 125°C
Buy the Amphenol Series LPT: Connectors and Interconnects: LPT02SE1626P023LC
Order the Amphenol LPT Series connector online today to benefit from high-quality construction, quick bayonet coupling, and versatile styles suitable for automation, instrumentation, and industrial power systems. Designed for durability, reliability, and easy assembly, this lightweight aluminum connector features a five-key/keyway system, multiple shell configurations, and excellent environmental sealing up to IP67 and IP69K in mated condition. Perfect for harsh environments, vibration, and shock resistance, ensuring your industrial and automation needs are met with confidence and efficiency.
Buy Amphenol LPT02SE1626P023LC connectors now and experience unmatched reliability and performance in harsh environment applications.
