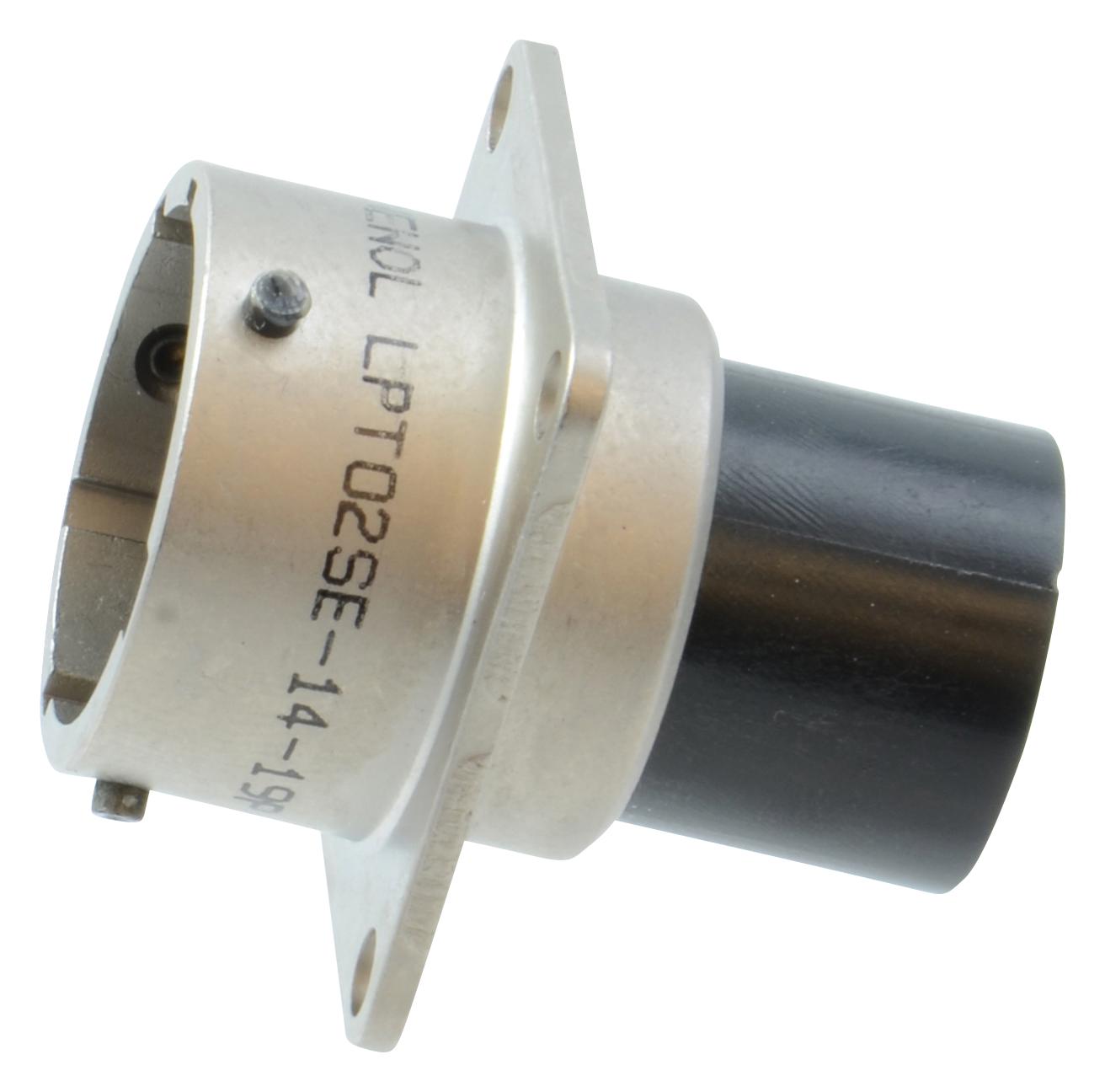

AMPHENOL INDUSTRIAL LPT02SE84P027LC industrial connector
The Amphenol Industrial LPT Series connector is based on the MIL-C-26482 Series I standard and the original PT series. It features a lightweight aluminum shell with a standard PT shell utilizing a coupling nut, making it compatible with PT series counterparts. The connector includes three retention tines with stamped and formed crimp contacts for easy insertion and secure retention. It accepts wire gauges from 22 AWG to 12 AWG and offers quick positive coupling with a 5 key/keyway configuration. Suitable for automation, process control, and industrial applications, it provides high ingress protection up to IP67/IP69K when mated.
AMPHENOL INDUSTRIAL LPT02SE84P027LC industrial connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Plating: Tin/Nickel/Gold plated
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 and IP69K in mated condition
- Current Rating (20# contact): 7.5A
- Test Current (16# contact): 13A
- Operating Voltage: 500V
- Test Voltage AC: 2300V
- Mating Cycles: 500 Cycles
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Contacts: #12, #16, #20, #22, #24 sizes
- Connector Finishes: Black zinc (ROHS), Nickel (ROHS), Gray zinc nickel (ROHS)
- Operating Temp: -40°C to +125°C
Buy the Amphenol LPT02 – Reliable Industrial Connectors for Harsh Environments
Purchase the Amphenol industrial connector online today for your automation, instrumentation, or harsh environment applications. Designed with lightweight aluminum shells, these connectors feature stamped and formed crimp contacts for secure, easy insertion. They support wire gauges from 22 up to 12 AWG, with options for box, jam nut, straight plug, wall, and cable mounting styles. Offering IP67 and IP69K ingress protection when mated, they withstand high shock, vibration, and temperature ranges from -40°C to +125°C, ensuring long-lasting reliable performance for demanding industrial settings.
Get Amphenol LPT02 connector today—designed for durability and reliable performance in industrial automation and power distribution.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPT02SE84P027LC?
You can click on the BUY or RFQ button to purchase LPT02SE84P027LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPT02SE84P027LC?
You can download the LPT02SE84P027LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPT02SE84P027LC?
AMPHENOL INDUSTRIAL
