AMPHENOL INDUSTRIAL LPTCSF20S203 Industrial Connectors
Amphenol Industrial's LPT Series is based on the MIL-C-26482 Series I and original PT series, featuring a lightweight aluminum shell design. This metal connector includes a standard PT shell with a coupling nut, making it compatible with the PT series. It incorporates three retention tines with stamped and formed crimp contacts that allow easy insertion and provide secure retention. The connector accommodates wire gauges from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²) and offers quick, positive coupling with a 5-key/keyway configuration to prevent mismating. It is available in five shell styles, including box mounting receptacle, jam nut receptacle, straight plug, wall mounting receptacle, and cable connecting receptacle.
AMPHENOL INDUSTRIAL LPTCSF20S203 Industrial Connectors Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Plating: Tin/Nickel/Gold
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Max Current (20# contact): 7.5A
- Max Current (16# contact): 13A
- Operating Voltage: 500V
- Test Voltage AC: 2300V
- Mating Cycles: 500
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Plating Options: Black zinc, Nickel, Gray zinc nickel
- Insertion Gauge Range: 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²)

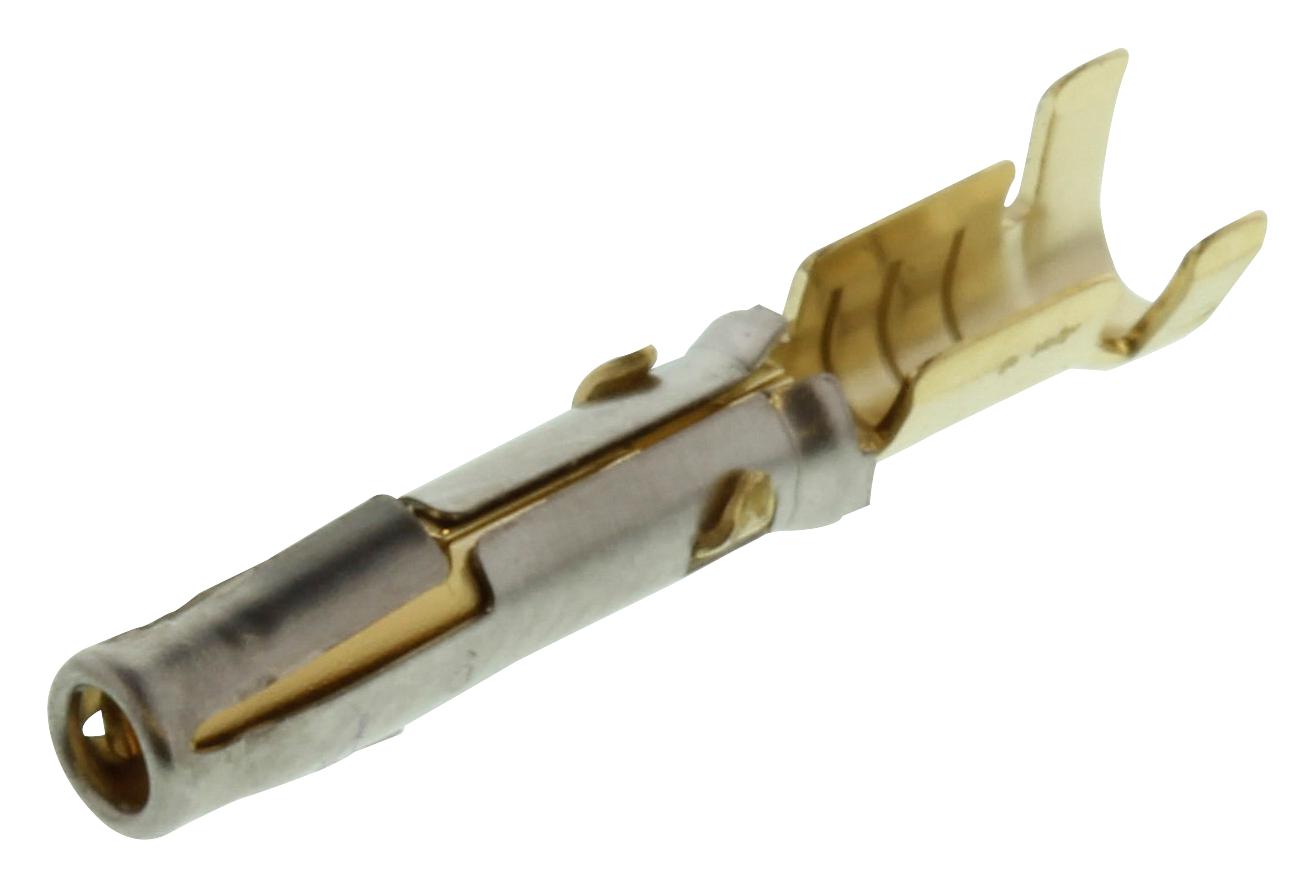

Buy the Amphenol Series LPT: Part Number LPTCSF20S203
Purchase the Amphenol LPT series connector online now to experience dependable performance in harsh environments. Designed with an aluminum shell and stamped, formed crimp contacts, these connectors support wire gauges from 22 to 12 AWG, ensuring versatility and durability. They feature quick bayonet coupling, multiple shell styles, and excellent ingress protection up to IP69K. Certified for high vibration, shock, and temperature resistance, these connectors are ideal for industrial automation, energy, and defense markets. Buy online today for fast delivery and exceptional quality assurance.
Buy Amphenol LPT series connector with quick coupling and high environmental resistance today for reliable industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPTCSF20S203?
You can click on the BUY or RFQ button to purchase LPTCSF20S203 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPTCSF20S203?
You can download the LPTCSF20S203 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPTCSF20S203?
AMPHENOL INDUSTRIAL
