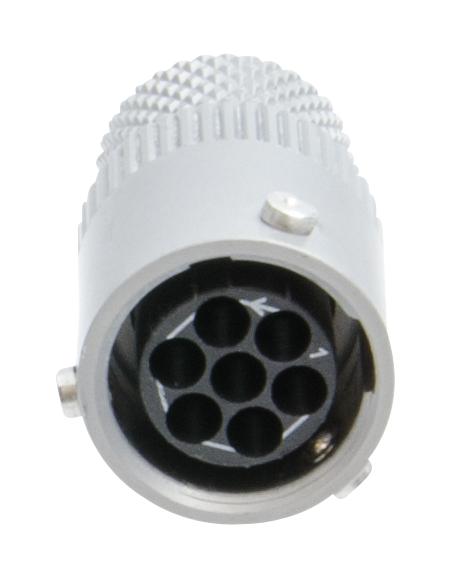

AMPHENOL INDUSTRIAL MB01TA1015SN574 Micro-B connector
Amphenol's Micro-B Series Connectors are designed for high-performance electrical applications requiring a small, lightweight, and reliable connector. Featuring high-density insert patterns and excellent EMI shielding through shell-to-shell electrical bonding, these rugged connectors are suitable for industrial environments such as automotive systems, factory automation, instrumentation, robotics, security, telecommunications, and test & measurement. Constructed from an aluminum shell, they utilize a robust triple bayonet coupling mechanism with a 1/4 turn mating connection and stamped and formed contacts. An internal EMI grounding spring ensures optimal shell-to-shell conductivity. Multiple mounting options, including inline and two-hole flange configurations, are available to suit various installation needs.
AMPHENOL INDUSTRIAL MB01TA1015SN574 Micro-B connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with Heat Shrink; IP67 with Cable Gland Backshell
- Test Current: 3A (#22D Contact)
- Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: Max 22 mΩ
- Mating Cycles: 500 cycles
- Vibration Resistance: In accordance with IEC 364-28D
- Salt Spray Resistance: 500 hours (Gray ZnNi)
- Operating Temperature: -40°C to 125°C
Buy the Amphenol Series Micro-B Connector: MB01TA1015SN574
Enhance your industrial equipment with the rugged and compact Micro-B connector from Amphenol. Designed for high-density, high-reliability applications, it features a 1/4 turn triple bayonet coupling, lightweight aluminum shell, and excellent EMI shielding. Ideal for automotive, automation, instrumentation, robotics, and secure communication systems, this connector withstands harsh environments with a salt spray resistance of up to 500 hours and temperature tolerance of -40°C to 125°C. Choose the Micro-B for durable, efficient, and space-saving electrical connections in complex industrial setups.
Order your Amphenol Series Micro-B Connector MB01TA1015SN574 today and give your industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB01TA1015SN574?
You can click on the BUY or RFQ button to purchase MB01TA1015SN574 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB01TA1015SN574?
You can download the MB01TA1015SN574 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB01TA1015SN574?
AMPHENOL INDUSTRIAL
