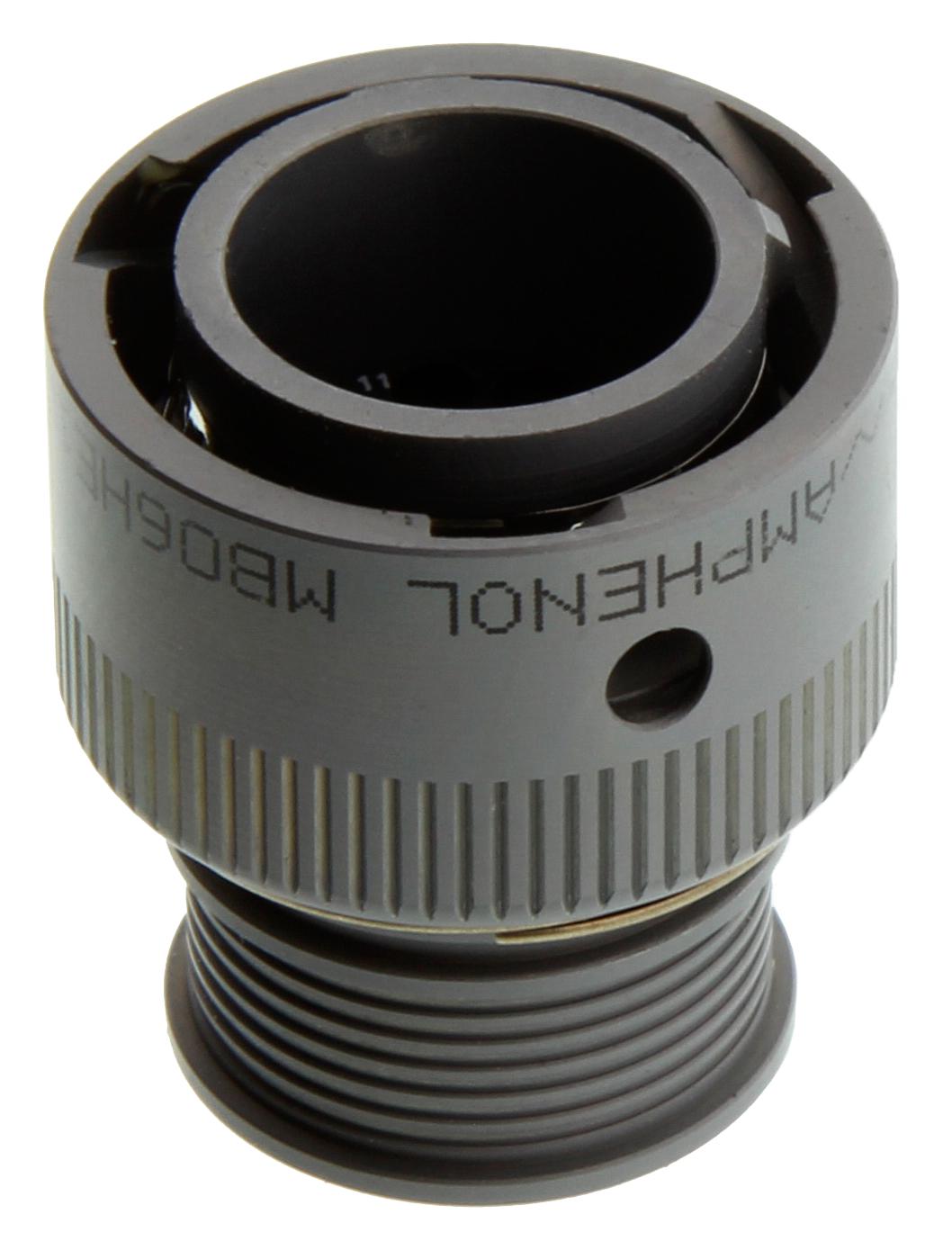

AMPHENOL INDUSTRIAL MB06HE1015PN072 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electrical equipment requiring compact size, lightweight construction, high-density insert patterns, and excellent EMI shielding. Crafted from aluminum, these connectors feature a robust triple bayonet coupling mechanism for a secure 1/4 turn mating and stamped & formed contacts for reliable connectivity. An internal EMI grounding spring ensures exceptional shell-to-shell electrical conductivity. Available mounting options include inline and two-hole flange configurations. These rugged connectors are suitable for industrial applications such as automotive systems, factory automation, robotics, security, telecommunications, instrumentation, and test & measurement, offering high performance and durability at an affordable price.
AMPHENOL INDUSTRIAL MB06HE1015PN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 in mated condition with heat shrink, IP67 with cable gland backshell
- Mating Cycles: 500
- Maximum Test Voltage: AC 500V RMS
- Recommended Operating Voltage: AC 250V RMS
- Contact Resistance: 22mΩ max
- Wire Size: 22D AWG 0.14-0.30 mm²
- Current Rating: 3A
- Vibration, Thermal Shock, Salt Spray: Tested to industry standards
- Mounting Options: Inline, 2-hole flange
- Keying: 5-key/system
- Shell Sizes: 08, 09, 10
- Shell Dimensions: Refer to detailed dimension tables for size specifics
Buy the Amphenol MB06HE1015PN072 – Reliable Micro-B Connectors for Industrial Applications
Purchase Amphenol Micro-B Connectors and Contacts online today for reliable, high-performance industrial interconnects. Designed for compact size, lightweight construction, and excellent EMI shielding, these connectors feature a robust triple bayonet coupling for quick and secure mating. Crafted from durable aluminum, they withstand harsh environments while maintaining high electrical performance. Ideal for automotive, factory automation, robotics, security, and telecommunications, these rugged connectors offer superior reliability and ease of installation. Order now to enhance your industrial applications with proven quality and durability.
Get Amphenol Micro-B connectors today—built for precision, high-density connections, and long-lasting durability in rugged environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB06HE1015PN072?
You can click on the BUY or RFQ button to purchase MB06HE1015PN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB06HE1015PN072?
You can download the MB06HE1015PN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB06HE1015PN072?
AMPHENOL INDUSTRIAL
