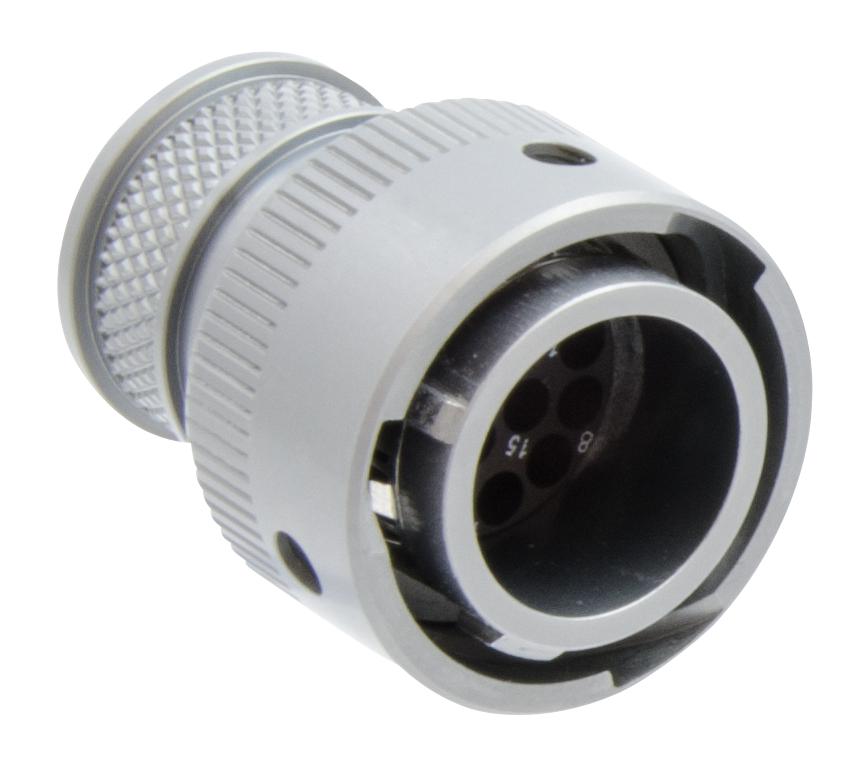

AMPHENOL INDUSTRIAL MB06HE1015SN072 Micro-B Connector
Amphenol's Micro-B Series Connectors feature a compact, lightweight design with high-density insert patterns, providing excellent shell-to-shell electrical EMI shielding and high reliability. Designed for industrial applications, these rugged connectors support high mating cycles and offer superior EMI grounding through an internal grounding spring. Constructed with an aluminum shell and utilizing a robust triple bayonet coupling mechanism (quarter-turn mating), they include stamped and formed contacts. Multiple mounting options are available, including in-line and two-hole flange mounts. Suitable for automotive, factory automation, industrial, instrumentation, robotics, security, telecommunications, and test & measurement applications.
AMPHENOL INDUSTRIAL MB06HE1015SN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with heat shrink, IP67 with cable gland backshell
- Wave Ring: Stainless steel
- Electromagnetic Interference Shielding: Yes
- Mating Cycles: 500
- Vibration Resistance: Yes
- Salt Spray Resistance: Up to 500 hours with Gray ZnNi plating
- Dimensions: Shell sizes range from 08 to 10 with respective dimensions for OB, OC, D, and B as per standard data
- Rated Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Current Carrying Capacity: 3A for #22D contacts
- Contacts: Crimp type, stamped and formed
- Mounting Options: In-line, 2-hole flange
Buy the Amphenol Series Micro-B Connector: MB06HE1015SN072
Experience the reliability and compact design of this high-performance industrial connector. Perfect for automation, automotive, and instrumentation, it withstands harsh conditions, offers high mating cycles, and ensures excellent EMI shielding. Easy to install with multiple mounting options, it is engineered to meet demanding industrial standards. Buy online today for durable, high-quality connections that support your high-density and environmental requirements, ensuring your systems stay operational and efficient in challenging conditions.
Get Amphenol Micro-B Series MB06HE1015SN072 today—built for precision, high-density performance, and rugged durability in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB06HE1015SN072?
You can click on the BUY or RFQ button to purchase MB06HE1015SN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB06HE1015SN072?
You can download the MB06HE1015SN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB06HE1015SN072?
AMPHENOL INDUSTRIAL
