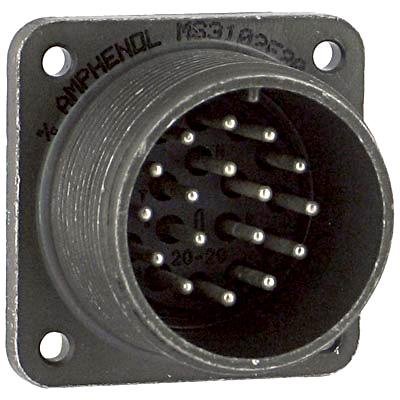

AMPHENOL INDUSTRIAL MS3102E2029P Military Circular Connector
The MS3102E20-29P is a 17-contact military standard circular connector designed for harsh environments. Featuring a durable aluminum alloy shell with olive drab chromate coating and cadmium plating, it provides excellent corrosion resistance. Equipped with silver-plated copper contacts, neoprene insulators, and moisture sealing, this connector ensures high durability, vibration resistance, and reliable performance under extreme temperatures from -55°C to +125°C. Its threaded coupling with polarization simplifies connections, making it suitable for applications in naval, military, and industrial systems involving vibration, moisture, and pressure conditions.
AMPHENOL INDUSTRIAL MS3102E2029P Military Circular Connector Specifications:
- Shell Material: Aluminium alloy
- Shell Coating: Olive drab chromate over cadmium
- Number of Contacts: 17
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Contact Resistance: Aan
- Insulator Material: Neoprene
- Insulator Resistance: > 1000 MO
- Operating Voltage: > 50V (use in accordance with IEC 60364-4-41 for voltages above 50V)
- Test Voltage: 1600 Vrms
- Air and Creepage Path: 1.4mm
- Ambient Temperature Range: -55°C to +125°C
- Ingress Protection: IP65
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Separation Force per Contact: 1.0 N
- Coupling Torque: Max 9 Nm (closing), Min 0.7 Nm (opening)
- Contact Retention: 35 N
- Wire Stripping: 6.2 mm
- Gage info: Refer to VG95234, part 1
- Shell Dimensions and Gage details: See catalog
Buy the Cannon MS3102E20-29P – Reliable Circular Connector for Industrial Applications
Secure your high-reliability needs by ordering the Cannon MS3102E20-29P online. Designed for harsh environments, this connector features corrosion-resistant aluminum alloy shell, silver-plated contacts, and moisture sealing. Its threaded coupling and polarization ensure easy, secure connections. Ideal for military, naval, and industrial applications involving vibration, moisture, and extreme temperatures, this connector offers robust performance with high durability, salt spray resistance, and long-lasting electrical contacts. Purchase now for dependable operation and seamless integration into your systems.
Get Cannon MS3102E20-29P today—built for durability and high-performance in demanding industrial and military environments.
