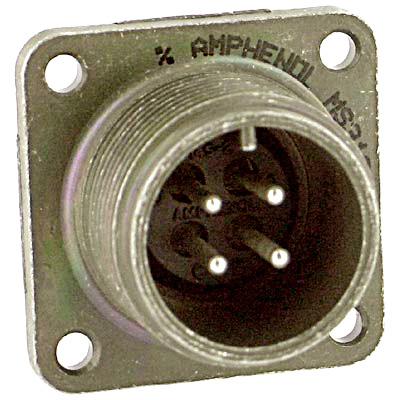

AMPHENOL INDUSTRIAL MS3102R2223P Flange Receptacle Connector
The MS3102R2223P connector is a military-grade, environmentally resistant flange-mounted receptacle with a shell size 22 and a contact configuration that ensures reliable electrical connections in harsh conditions. It features corrosion-resistant plating, robust construction with a sealed gasket, and supports multiple contact layouts and rotation options for versatile application. Suitable for military, aerospace, and industrial use, it guarantees durability, high-performance sealing, and compatibility with various cable types, making it ideal for demanding environments requiring secure and long-lasting connections.
AMPHENOL INDUSTRIAL MS3102R2223P Flange Receptacle Connector Specifications:
- Shell Size: 22
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Maximum Diameter: 2.250 inches (57.0 mm)
- Contact Type: Multiple options including solder, crimp, and thermocouple
- Number of Contacts: Configurable (e.g., 16-#16 contacts)
- Service Life: Minimum of 100 cycles
- Operating Temperature: -55°C to +125°C
- Sealing: Moisture-tight gasket with 48-hour water immersion test
- Marine Grade: Yes, MIL-DTL-5015 compliant
- Plating: Hard silver or gold
- Certificate: Meets JAN certification standards
- Applications: Military, aerospace, industrial harsh environments
Buy the ITT Cannon Series MIL-DTL-5015 MS3102R2223P: Flange Receptacle Connector
Purchase the ITT Cannon MS3102R2223P flange-mounted connector online today and ensure secure, high-quality connections even in the toughest environments. Designed to meet MIL-DTL-5015 standards, this corrosion-resistant, sealed connector provides superior durability, sealing, and versatility for a wide range of military, aerospace, and industrial applications. Its rugged construction, multiple contact configuration options, and proven reliability make it an ideal choice for demanding projects where long-term performance and environmental resistance are critical. Order now and benefit from quick shipping and expert support.
Buy ITT Cannon MS3102R2223P now and experience unmatched reliability and performance in demanding military and industrial applications.
