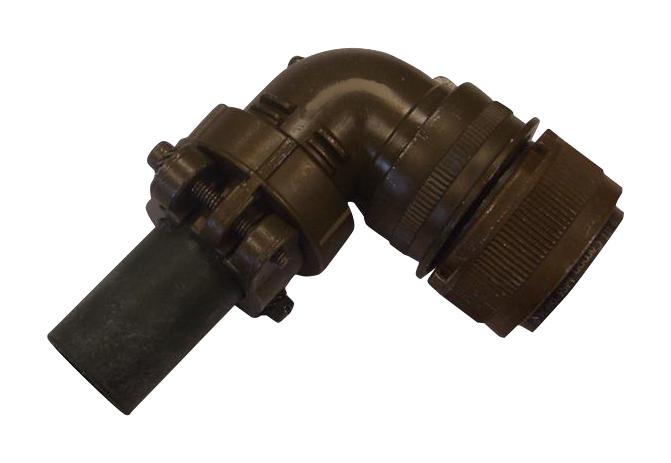

AMPHENOL INDUSTRIAL MS3108E12S3S Environmental Connector
The MS3108E12S3S is a 90-degree environmental resistant connector designed with a lightweight aluminum shell for demanding industrial, military, and shipboard applications. Featuring resilient neoprene inserts and crimp or solder contacts, it provides superior moisture, vibration, and temperature resistance. With threaded coupling, single key/keyway polarization, and a broad range of insert arrangements, the connector supports high current capabilities and multiple circuit configurations. Ideal for harsh environments requiring reliable, sealed, and durable interconnections in compact form factors.
AMPHENOL INDUSTRIAL MS3108E12S3S Environmental Connector Specifications:
- Shell Material: High grade aluminum alloy
- Plating: Conductive cadmium with olive drab chromate after-treatment
- Contacts: Silver plated copper alloy; crimp or solder options, sizes 16-0 for 22-0 AWG wire
- Insulation: Resilient neoprene inserts for moisture and vibration resistance
- Operating Voltage: Up to 3000 VAC (RMS) at sea level
- Coupling: Threaded for secure mating with single key/keyway polarization
- Environmental Resistance: Designed to withstand moisture, vibration, temperature extremes
- Contact Arrangements: Up to 85 circuits with diverse insert patterns
- Classes: A (general), C (pressurized), E/F (environmental with strain relief), R (lightweight resistant)
- Temperature Range: Resilient at temperatures as low as -67°F
Buy the Buy Amphenol MS3108E12S3S Environmental Connector Online
Purchase the Amphenol MS3108E12S3S environmental connector online now. This 90-degree, lightweight aluminum shell connectivity solution offers exceptional moisture, vibration, and temperature resistance. Equipped with resilient neoprene inserts and available in multiple circuit configurations, it ensures durable, high-current performance for demanding industrial, military, and shipboard applications. Threaded coupling and polarization guarantee secure mating. Order today for fast delivery and trusted reliability in extreme conditions across diverse applications.
Order your Amphenol MS3108E12S3S environmental connector today and ensure reliable, sealed connections in harsh environments with this compact high-performance connector.
