AMPHENOL INDUSTRIAL PT02A2221P Miniature Cylindrical Connector
The PT02A22-21P from Amphenol is a PT series box mount receptacle, equivalent to MIL-DTL-26482 series I, featuring 21 contacts. These miniature cylindrical connectors offer high-density contact arrangements within a circular shell and are designed for harsh environments with salt spray resistance up to 500 hours. They incorporate a quick disconnect bayonet coupling for rapid mating and unmating, with a 3-point bayonet lock to prevent cross-connection. The connectors include a wave washer in the coupling nut to maintain sealing integrity, and both the insert and main joint gasket are molded from resilient neoprene insulator. They are fully intermateable, intermountable, and interchangeable with all MIL-DTL-26482 connectors, supporting up to 500 mating cycles. Operating efficiently from -55°C to +125°C, these connectors are UL recognized and feature copper alloy solder pin contacts with gold plating, housed in an aluminum alloy body with olive drab chromate over cadmium plating. They are suitable for industrial and commercial applications requiring environmental sealing and high reliability, capable of withstanding extreme shock, vibration, and exposure.
AMPHENOL INDUSTRIAL PT02A2221P Miniature Cylindrical Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Number of Contacts: 21
- Contact Type: Copper alloy solder pin with gold plating
- Operating Temperature Range: -55°C to +125°C
- Salt Spray Resistance: Up to 500 hours
- Coupling System: Bayonet quick disconnect with 3-point lock
- Sealing: Electro-magnetic interference/Radio-frequency interference (EMI/RFI) shielding, sealed against dust and fluids (IP68)
- Vibration Resistance: Exceeds MIL-E-5272 proc. II
- Shock Resistance: Supports shock up to 100 G's
- Mating Cycles: Up to 500
- Insert & Gasket Material: Molded resilient neoprene insulator
- Connector Size: 22
- Inclusion: Fully intermateable, intermountable, interchangeable with MIL-DTL-26482
- Voltage Rating: 600 Vrms (operating), 1500 Vrms (test at sea level)
- Current Rating: 13 A per contact

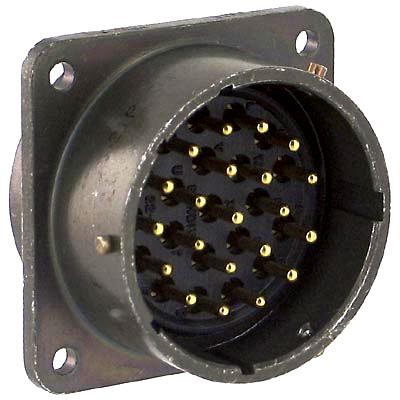

Buy the Amphenol Series PT MIL-DTL-26482 Receptacle: PT02A2221P
Order the Amphenol PT02A22-21P mini cylindrical connector online today. This high-reliability, environmentally sealed connector features 21 gold-plated contacts, quick bayonet coupling, and robust construction designed for harsh environments. Suitable for industrial, military, and commercial uses, it withstands temperature extremes, shock, vibration, and salt spray exposure. Its fully interchangeable and intermountable design supports up to 500 mating cycles, ensuring durability and secure connections in critical applications requiring environmental sealing and high electrical performance.
Get Amphenol PT02A22-21P today—built for high-density contact arrangements and environmental sealing in demanding applications.
