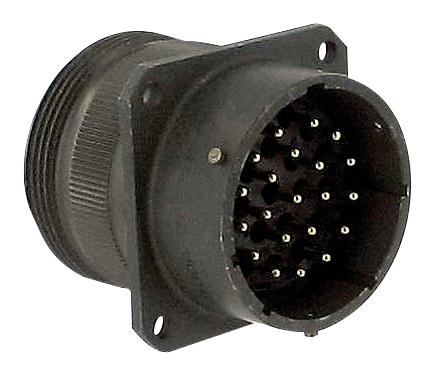

AMPHENOL INDUSTRIAL PT02E1412P072 Miniature Cylindrical Connector
The PT02 series are miniature cylindrical connectors designed for versatile applications including military, industrial, and environmental sealing needs. Crafted with aluminum shells and gold-plated copper contacts, these connectors support solder and PCB terminations, with high dielectric strength and moisture resistance. Features include bayonet coupling for quick mating, multiple shell styles such as wall, cable, box, and hermetic options, with optional strain relief and environmental protection. Suitable for systems requiring high reliability, these connectors operate from -55°C to +125°C and handle voltages up to 1000 VAC, fulfilling demanding military and industrial standards.
AMPHENOL INDUSTRIAL PT02E1412P072 Miniature Cylindrical Connector Specifications:
- Shell sizes: 6 to 24
- Shell material: Aluminum
- Contact material: Gold-plated copper alloy
- Contact sizes: 20, 16, 12, coaxial options
- Operating temperature: -55°C to +125°C
- Voltage rating: Up to 1000 VAC
- Dielectric Withstanding Voltage: 1500V (sea level), 2300V (50,000 ft.)
- Current: 5A (size 20), 10A (size 16), 17A (size 12), up to 61 contacts for hermetic
- Sealing: Resilient neoprene gaskets, hermetic glass fusion seals
- Coupling: 3-point bayonet lock with key/keyway polarization
- Environmental resistance: IP67, corrosion-resistant finishes (cadmium, anodic coating, gray zinc)
- Features include optional strain relief clamps, overmolded cables, printed circuit board contacts, and EMI filtering options.
- Designed for military, aerospace, industrial automation, and geophysical applications.
Buy the Buy Amphenol PT Series Part Number PT02E1412P072 Online
Order the Amphenol PT series connector PT02E1412P072 online today to ensure high reliability in demanding environments. These connectors feature aluminum shells, gold-plated copper contacts, and versatile configurations including hermetic, PCB, and environmental sealing options. With bayonet coupling, operating temperature from -55°C to +125°C, and voltage up to 1000 VAC, they are ideal for military, aerospace, and industrial systems. Quick installation with optional strain relief, EMI filtering, and overmold options makes them the perfect choice for your high-performance interconnection needs.
Buy Amphenol PT02E1412P072 now and experience unmatched reliability and high-performance environmental sealing in miniature cylindrical connectors.
