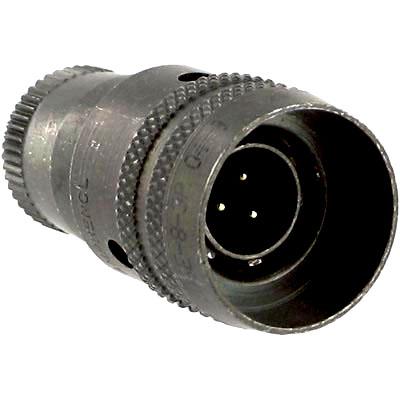

AMPHENOL INDUSTRIAL PT06E83P Miniature Cylindrical Connector
The PT06E83P is a miniature cylindrical connector designed for high-reliability applications. Featuring a bayonet coupling system, solder contacts, and environment-resistant finishes, it is suitable for demanding industrial and military environments. Its rugged aluminum shell is corrosion-resistant, with optional hermetic sealing options available. The connector supports operating voltages up to 900 VAC RMS and includes robust gold-plated copper contacts. Versatile in configuration, it accommodates various insert arrangements, contact sizes, and optional strain relief and potted versions for enhanced environmental sealing and mechanical stability.
AMPHENOL INDUSTRIAL PT06E83P Miniature Cylindrical Connector Specifications:
- Shell Material: Aluminum
- Finish Options: Cadmium plated with clear chromate, anodic coating, or zinc cobalt plating
- Operating Voltage: Up to 900 VAC RMS at sea level
- Contact Material: Gold-plated copper alloy
- Contact Sizes: 8, 12, 16, 20, 22, 24 AWG
- Current Ratings: 5A (size 20), 10A (size 16), 17A (size 12)
- Dielectric Withstanding Voltage: 1500V RMS (series 1), 2300V RMS (service rating II)
- Temperature Range: -55°C to +125°C
- Inserts: Various arrangements, including hermetic sealing options
- Sealing: Resilient neoprene gasket, optional hermetic glass inserts
- Physical Dimensions: Shell sizes from 6 to 24, various insert configurations
- Environmental Resistance: Corrosion-resistant finishes, hermetic sealing, and optional strain relief
- Design Features: Gold-plated contacts, bayonet coupling, waterproof/pressure-proof options
- Certification: MIL-C-26482 Series 1 qualified, optional hermetic and environmental sealing
- Application: Military, aerospace, industrial automation, remote sensing
Buy the Buy Amphenol Miniature Cylindrical Connector Part Number PT06E83P Online
Enhance your project with the durable and versatile Amphenol Miniature Cylindrical connector, featuring bayonet coupling, hermetic sealing options, and gold-plated contacts for maximum reliability in harsh environments. Designed with a rugged aluminum shell and advanced environmental resistance, this connector supports high voltage and current requirements up to 900 VAC RMS and 17A respectively. Suitable for military, aerospace, and industrial applications, it offers excellent sealing, vibration resistance, and compatibility with a wide range of insert arrangements for flexible deployment. Trusted by professionals worldwide for decades, buy online now for prompt delivery and unmatched performance.
Order your Amphenol Miniature Cylindrical PT06E83P connector today and give your projects the reliable, high-performance connection they deserve.
