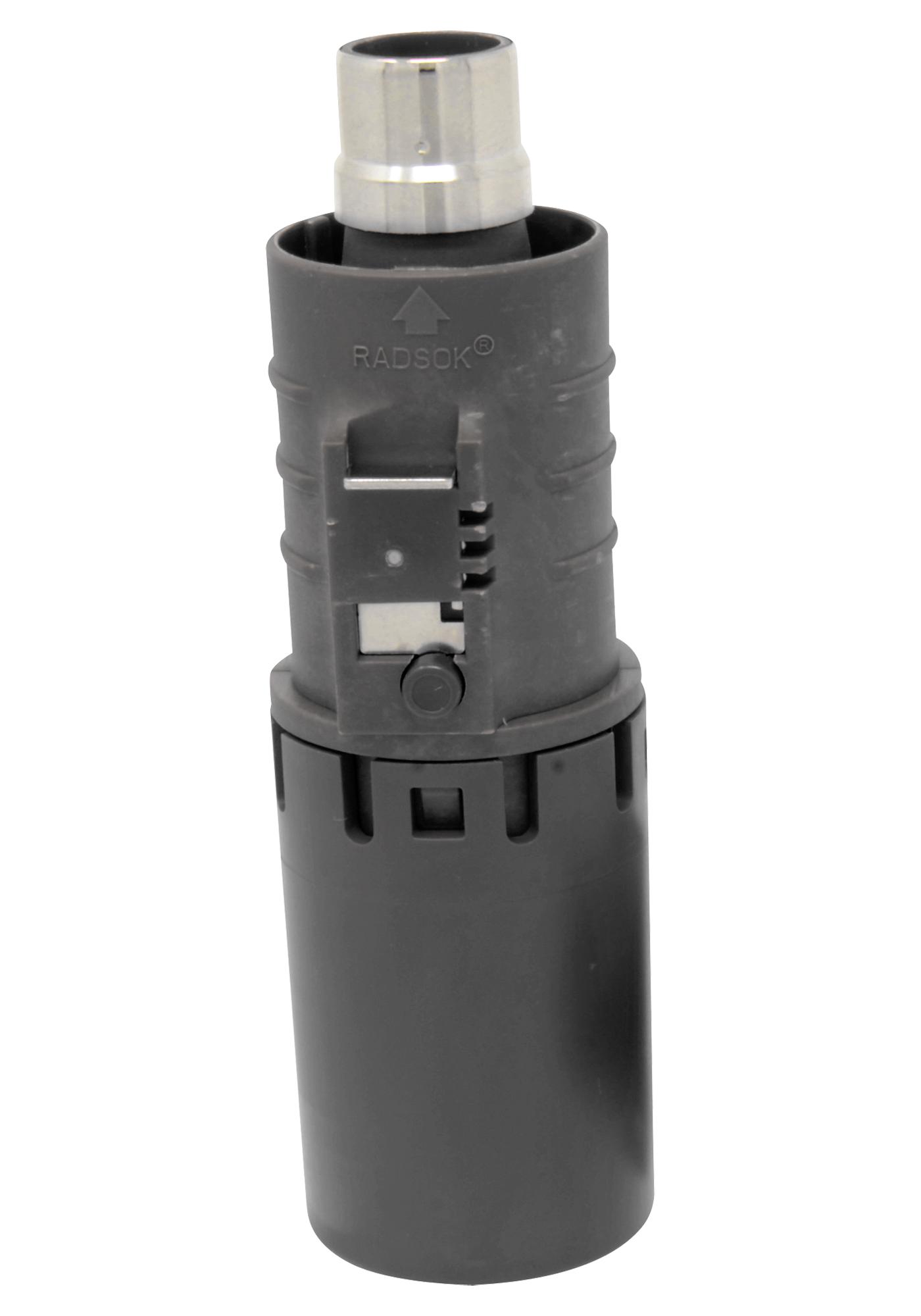

AMPHENOL INDUSTRIAL SLPIPB35BSB3EH Sealed Connectors
The SurLok Plus™ compression lugs from Amphenol Industrial are field-installable, highly reliable, environmentally sealed connectors. Featuring secondary locking, quick lock, and press-to-release design, they ensure easy installation. Incorporating cutting-edge R4 RADSOK® technology, these connectors support industry-standard crimp, screw, and busbar termination options, eliminating the need for special torque tools. Ideal for electric vehicles, energy storage, industrial automation, medical equipment, and heavy machinery, they come in various configurations including EMI shielding, HVIL functions, and multiple shell types. Rated up to 400A, supporting voltages up to 1000VAC/DC, they operate from -40°C to 125°C with UL94 V-0 flammability compliance.
AMPHENOL INDUSTRIAL SLPIPB35BSB3EH Sealed Connectors Specifications:
- Contact Sizes: 5.7mm (120A), 8mm (200A), 10.3mm (350A)
- Maximum Current Rating: 400A
- Voltage Rating: Up to 1000VAC/DC
- Wire Gauge Support: up to 95mm²
- Flammability: UL94 V-0
- Operating Temperature Range: -40°C to 125°C
- Shell Types: right angle, straight plug, straight receptacle
- Connector Colors: orange, black, red
- Sealing: environmentally sealed IP67
- Locking: secondary lock, quick lock, press-to-release
- Configurations: EMI shielding, HVIL functions
- Compatibility: compatible with industry-standard crimp, screw, busbar termination
- Mating Keyways: 60° to 270° options to prevent incorrect mating
Buy the Amphenol SLPIPB35BSB3EH – Reliable Sealed Connectors for Industrial Applications
Enhance your industrial and automation projects with the reliable SurLok Plus™ sealed connectors by Amphenol. Featuring advanced RADSOK® technology, these connectors provide robust, environmentally sealed connections, supporting high currents up to 400A and voltages up to 1000VAC/DC. Easy to install with quick lock and press-to-release mechanisms, they are ideal for EVs, energy storage, and heavy machinery. Extensive configurations include EMI shielding and HVIL functions, with operating temperatures from -40°C to 125°C, fulfilling UL94 V-0 flammability standards. Purchase online today and secure high-performance connectivity.
Order your Amphenol Series SLPIPB35BSB3EH sealed connectors today and ensure dependable, efficient connections for industrial, automation, and energy projects.
