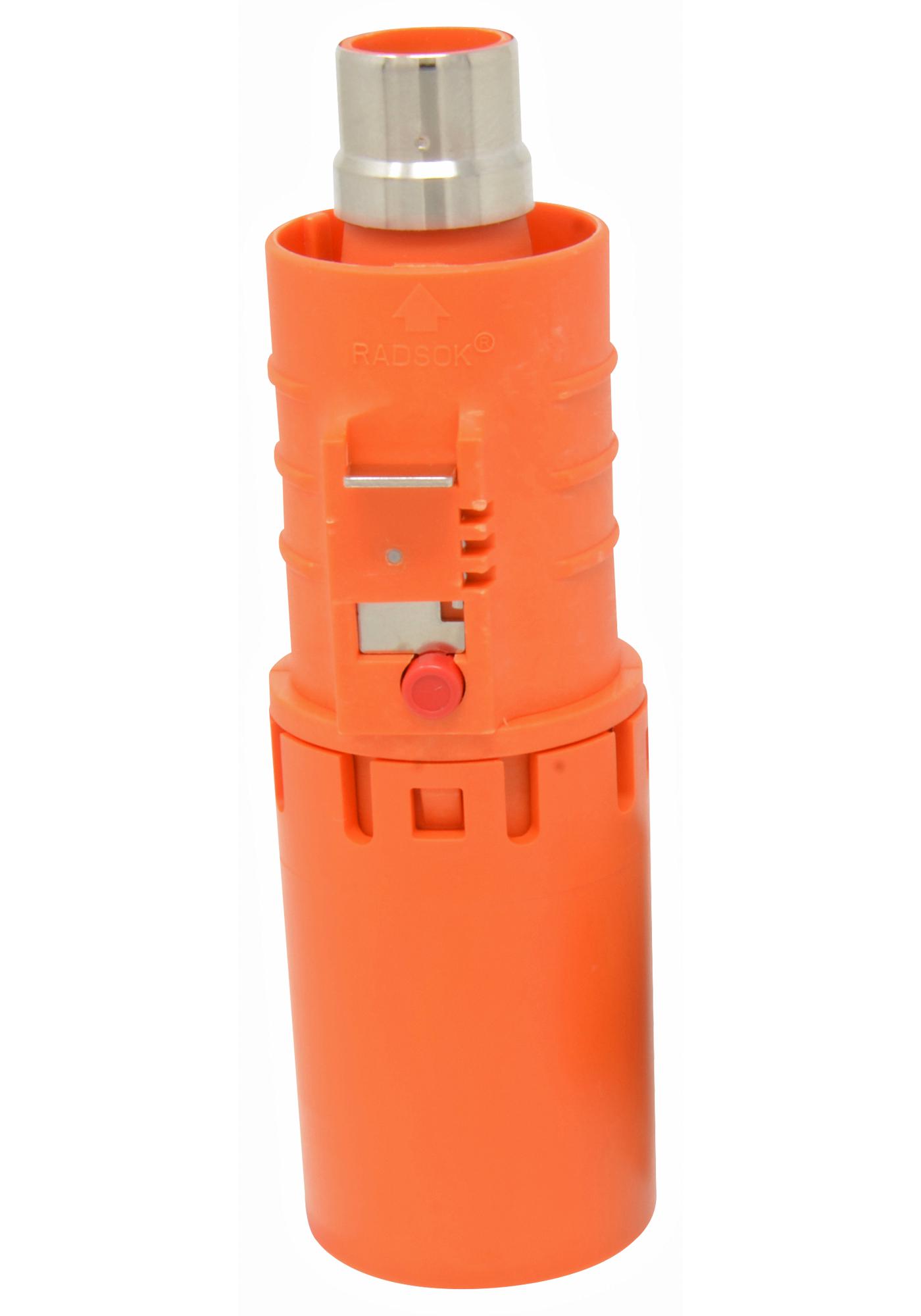

AMPHENOL INDUSTRIAL SLPIPB70BSO2EH Electrical Compression Lug
The SurLok Plus™ compression lugs from Amphenol Industrial are high-reliability, field-installable connectors for secure, environmentally sealed electrical connections. Incorporating R4 RADSOK® technology, they ensure quick mating with press-to-release operation, secondary locking, and compatibility with industry-standard crimp, screw, and busbar terminations, eliminating the need for specialized tools. Suitable for electric vehicles, energy storage, rail systems, and heavy equipment, these connectors come in various sizes, shell types, and colors, supporting up to 400A current, 1000VAC/DC voltage, and operating temperature from -40°C to 125°C for versatile industrial applications, with compliant UL94 V-0 flammability grade.
AMPHENOL INDUSTRIAL SLPIPB70BSO2EH Electrical Compression Lug Specifications:
- Current Rating: Up to 400A
- Voltage Rating: 1000VAC/DC
- Contact Size: 5.7mm (up to 120A), 8mm (up to 200A), 10.3mm (up to 350A)
- Temperature Range: -40°C to 125°C
- Flammability: UL 94 V-0
- Sealing: IP67 rated, environmentally sealed
- Connector Types: Right angle, straight plug, straight receptacle
- Color Options: Orange, black, red
- Material: High-strength copper alloy, durable plastic shells
- Locking System: Secondary locking with quick press-to-release
- Compatibility: Crimp, screw, busbar terminations
- Maximum wire size: Up to 95 mm²
- Operating features: EMI shielding, HVIL functions, various keyways for angle-specific mating
Buy the Amphenol Series SurLok Plus High Amperage Compression Lug: SLPIPB70BSO2EH
Purchase your Amphenol Series SurLok Plus high-amperage compression lug online today and benefit from reliable, secure, and environmentally sealed electrical connections. Designed for industrial applications such as electric vehicles, automation, and heavy equipment, these connectors support current ratings up to 400A and operate efficiently within a temperature range of -40°C to 125°C. Their quick press-to-release locking system ensures ease of installation, while their IP67 sealing provides protection against dust and water. Compatible with various termination methods including crimp, screw, and busbar, these rugged connectors feature UL 94 V-0 flammability compliance. Perfect for critical energy, rail, and process control systems, they come in multiple sizes, shell types, and colors to suit your specific needs, ensuring optimal safety and performance.
Order your Amphenol Series SurLok Plus compression lug today and ensure secure, high-reliability electrical connections for your industrial projects.
