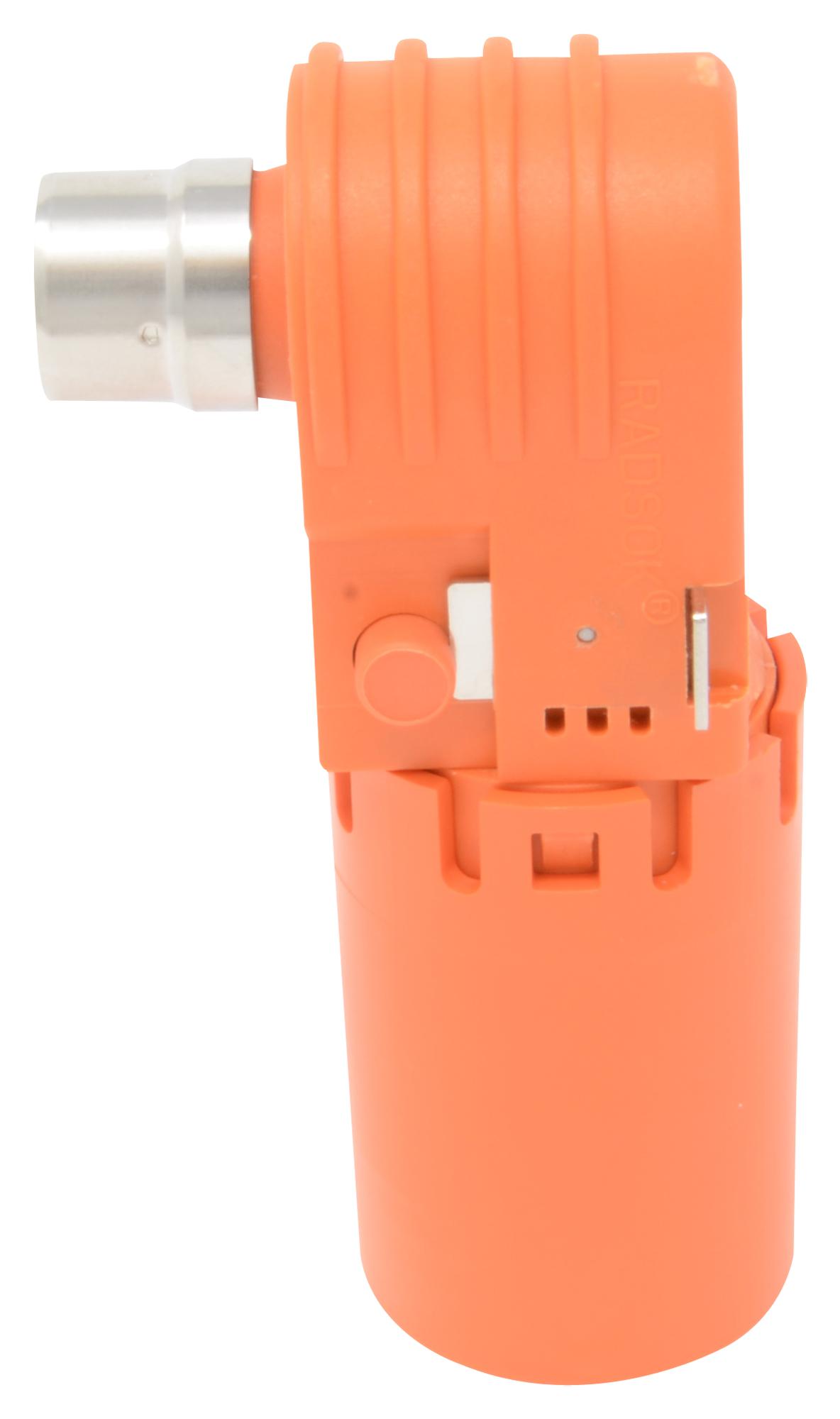

AMPHENOL INDUSTRIAL SLPPB35BSO3EH Electrical Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable connectors designed for demanding electrical applications. These environmentally sealed lugs feature a secondary locking system, quick lock, and press-to-release design for easy installation. Utilizing advanced RADSOK® technology, they deliver compact, robust performance with quick mating capabilities. Suitable for electric vehicles, battery management systems, railway transitions, process automation, and heavy machinery, they support industry-standard crimp, screw, and busbar termination options, with various sizes and shell types, ensuring optimal electrical and environmental protection across diverse projects.
AMPHENOL INDUSTRIAL SLPPB35BSO3EH Electrical Connector Specifications:
- Flammability: UL 94 V-0
- Contact Material: Copper alloy
- Temperature Rating: -40°C to 125°C
- Operating Voltage: 1000V AC/DC
- Current Ratings: Up to 400A (various sizes: 120A, 200A, 250A, 350A)
- Contact Sizes: 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
- Protection: IP 67 sealed, touch-proof
- Termination Options: Crimp, screw, busbar
- Shell Types: Right angle plug, straight plug, straight receptacle
- Temperature Range: -40°C to 125°C
- Color Options: Orange, black, red
- Locking: Secondary lock, quick lock, press-to-release
- Connections: Supports industry-standard crimp, screw, busbar
- Features: EMI shielding, HVIL options, various keyway orientations
- Size Range: 5.7mm to 10.3mm contact diameter
- Compliance: UL 94 V-0 flammability
Buy the Buy Amphenol SurLok Plus™ Compression Lug Part Number SLPPB35BSO3EH Online
Explore the high-performance Amphenol SurLok Plus™ compression lugs, engineered for demanding electrical applications. These environmentally sealed, robust connectors feature RADSOK® technology, ensuring fast mating and reliable connections. Suitable for electric vehicles, energy storage, automation, and heavy machinery, they offer various sizes, shell types, and keyway options for versatile installation. Easy to install with industry-standard crimp, screw, or busbar terminations, they operate across a wide temperature range and are rated up to 400A and 1000VAC/DC. Buy online today for precision electrical connections that boost your project’s safety, efficiency, and durability.
Buy Amphenol SurLok Plus™ connector now and experience unmatched reliability and performance in demanding electrical environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB35BSO3EH?
You can click on the BUY or RFQ button to purchase SLPPB35BSO3EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB35BSO3EH?
You can download the SLPPB35BSO3EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB35BSO3EH?
AMPHENOL INDUSTRIAL
