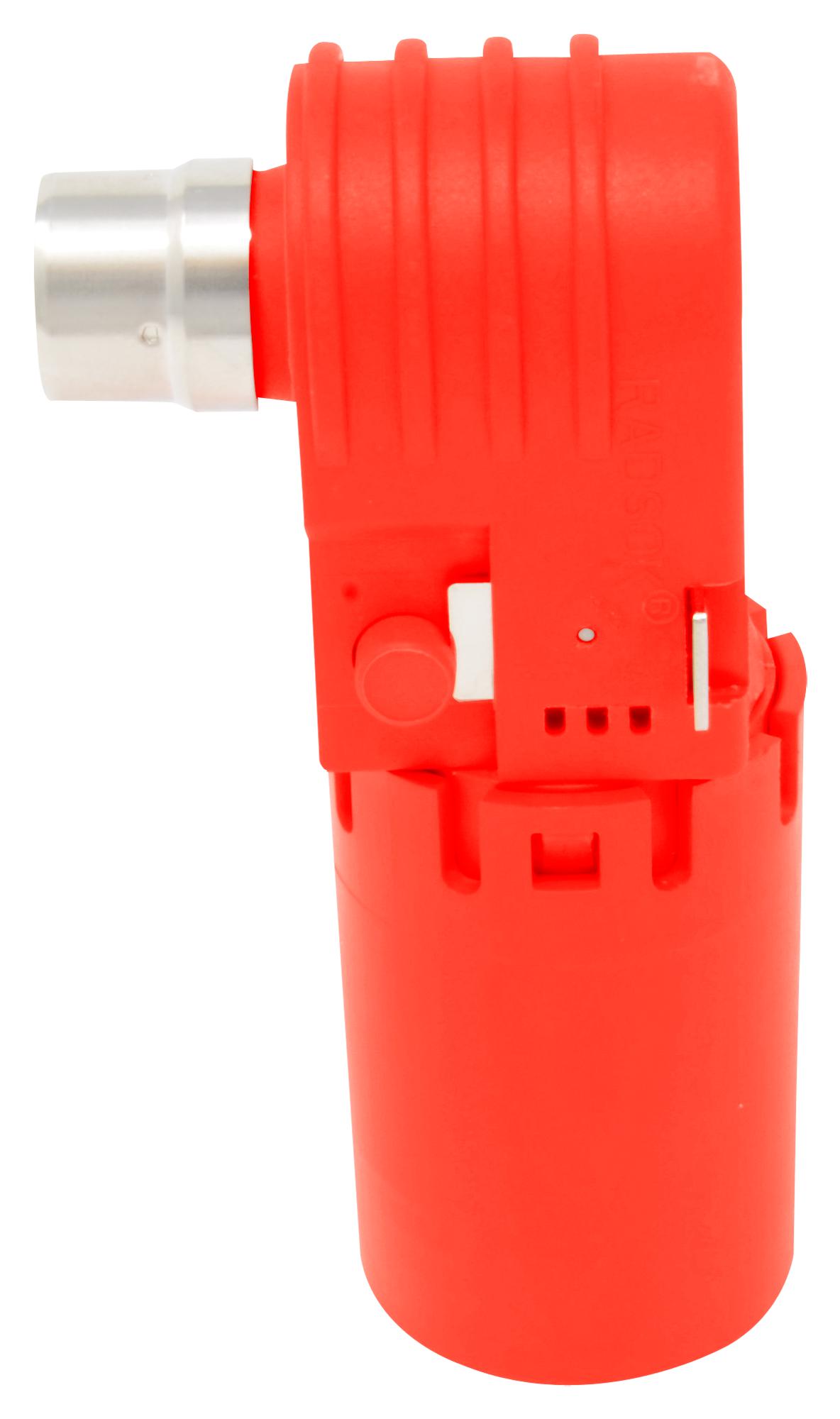

AMPHENOL INDUSTRIAL SLPPB35BSR3EH Industrial Power Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are reliable, field-installable connectors designed for various industrial and automotive applications. These environmentally sealed lugs feature a secondary locking system, quick lock, and press-to-release mechanism. Incorporating the latest R4 RADSOK® technology, they offer compact size, quick mating, and robustness. The lugs support industry-standard crimp, screw, and busbar terminations, removing the need for specialized torque tools. Suitable for electric vehicles, battery management systems, energy storage, rail transit, automation, medical equipment, and heavy machinery, they are available in multiple configurations, contact sizes supporting up to 350A, with optional EMI shielding and HVIL functions. They operate within -40°C to 125°C, feature IP67 sealing, meet UL94 V-0 flammability standards, and support wire gauges up to 95mm², with variants for different angles and current ratings up to 400A.
AMPHENOL INDUSTRIAL SLPPB35BSR3EH Industrial Power Connector Specifications:
- Flammability: UL 94 V-0
- Maximum Current: 400A
- Operating Voltage: 1000V AC/DC
- Operating Temperature Range: -40°C to 125°C
- Contact Size: 8.0mm (200A), 10.3mm (350A), 12.5mm (400A)
- Sealing: IP67
- Locking: Spring Locking
- Connections: Crimp, screw, busbar
- Material: High tensile strength alloy
- Dimensions vary per connector type and angle, supporting overmolding
- Standards: UL94 V-0 flammability
- Applicable for: Electric vehicles, energy storage, process control, heavy equipment
- Color options: Orange, black, red
Buy the Amphenol SLPPB35BSR3EH – Reliable Industrial Connectors for Heavy Equipment
Order the Amphenol SurLok Plus™ industrial power connector online today and enjoy reliable, high-current connections for energy storage, automation, and heavy machinery. Designed with IP67 sealing and UL94 V-0 flammability standards, these connectors support up to 400A and 1000V AC/DC. They feature easy installation with industry-standard crimp and screw options, supporting wire gauges up to 95mm². Choose from multiple configurations, including angle and keyway options, for secure, interference-resistant connections in demanding industrial and automotive applications. Buy now for long-lasting, safe performance.
Get Amphenol SLPPB35BSR3EH today—built for precision, high current capacity, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB35BSR3EH?
You can click on the BUY or RFQ button to purchase SLPPB35BSR3EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB35BSR3EH?
You can download the SLPPB35BSR3EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB35BSR3EH?
AMPHENOL INDUSTRIAL
