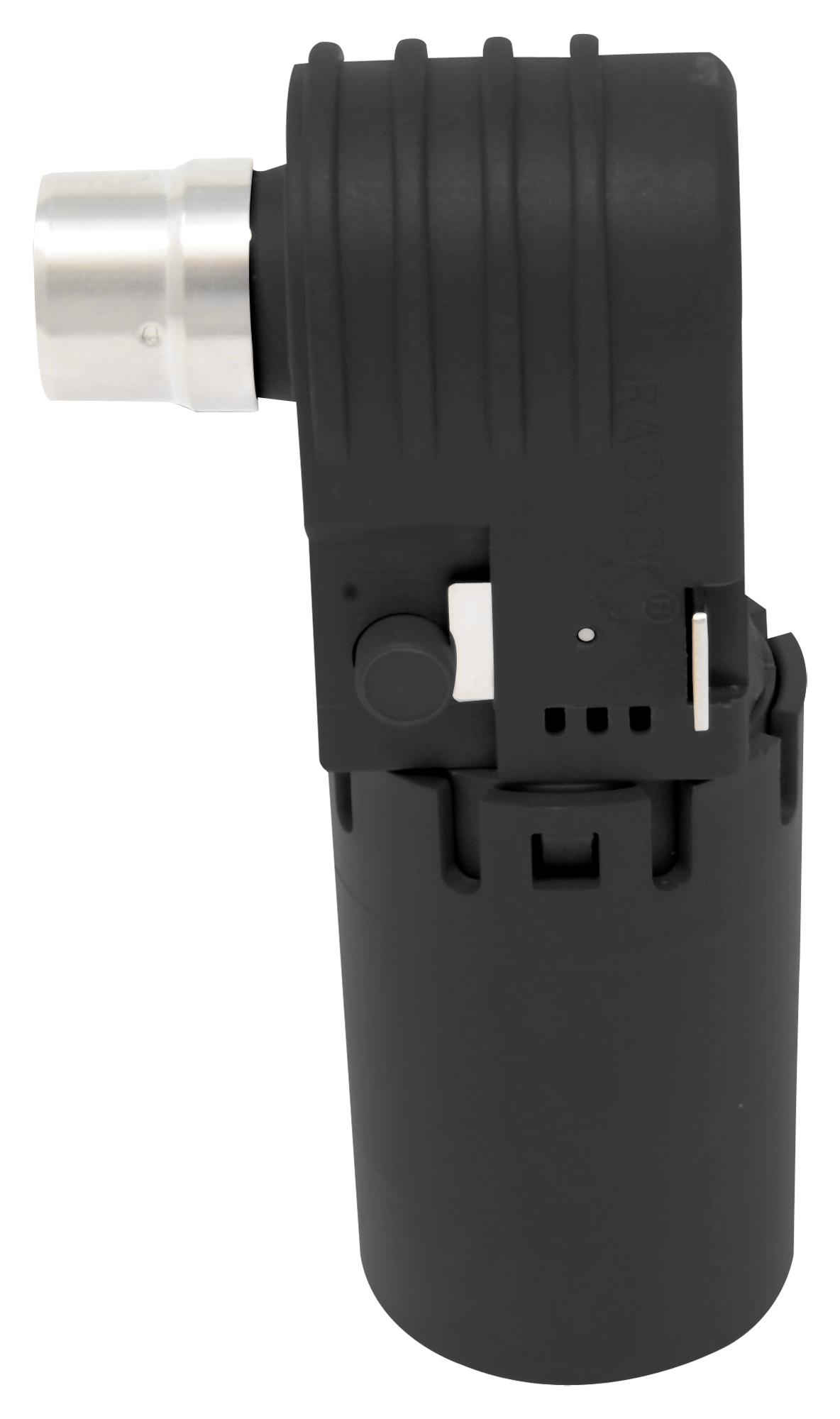

AMPHENOL INDUSTRIAL SLPPB50BSB2EH Electrical Compression Lug
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable terminals designed for secure electrical connections. These environmentally sealed lugs feature a compact design with secondary locking mechanisms, quick lock, and press-to-release functionality. Incorporating the latest R4 RADSOK® technology, they offer quick mating and robust performance. They support industry-standard crimp, screw, and busbar terminations, eliminating the need for special torque tools. Suitable for electric vehicles, energy storage, automation, and heavy machinery, these lugs come in various configurations with EMI shielding, HVIL, and IP67 sealing, supporting currents up to 400A, and voltage up to 1000V AC/DC, for wires up to 95mm². Operating temperature ranges from -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPPB50BSB2EH Electrical Compression Lug Specifications:
- Contact Size: 8.0mm (200A)
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Protection: IP67 sealing
- Temperature Range: -40°C to 125°C
- Flammability: UL 94 V-0
- Material: High tensile strength metal
- Features: Quick lock, press-to-release, secondary locking, EMI shielding, HVIL
- Configurations: Right-angle plug, straight plug, straight receptacle, keyway options
- Wire Compatibility: Up to 95mm² cable
- Size Measurements: 86.2 mm length, contact diameter 8.0 mm
- Environmental Features: Sealed, touch-proof, locking spring
- Application Areas: Process control, automation, heavy equipment, energy storage, electric vehicles
Buy the Amphenol Series SurLok Plus EMI: SLPPB50BSB2EH
Purchase the Amphenol Series SurLok Plus EMI compression lug online today to benefit from secure, environmentally sealed electrical connections. Ideal for high-current applications like energy storage, electric vehicles, and industrial automation, these lug connectors feature quick lock, press-to-release mechanisms, and optional EMI shielding. They support wire gauges up to 95mm², operate at temperatures ranging from -40°C to 125°C, and meet UL94 V-0 flammability standards. With IP67 sealing and customizable configurations, they guarantee durability, safety, and reliable performance for demanding environments. Order now and upgrade your electrical connections with trusted reliability.
Order your Amphenol Series SurLok Plus EMI terminal today and ensure dependable, high-current electrical connections for your industrial and automotive projects.
