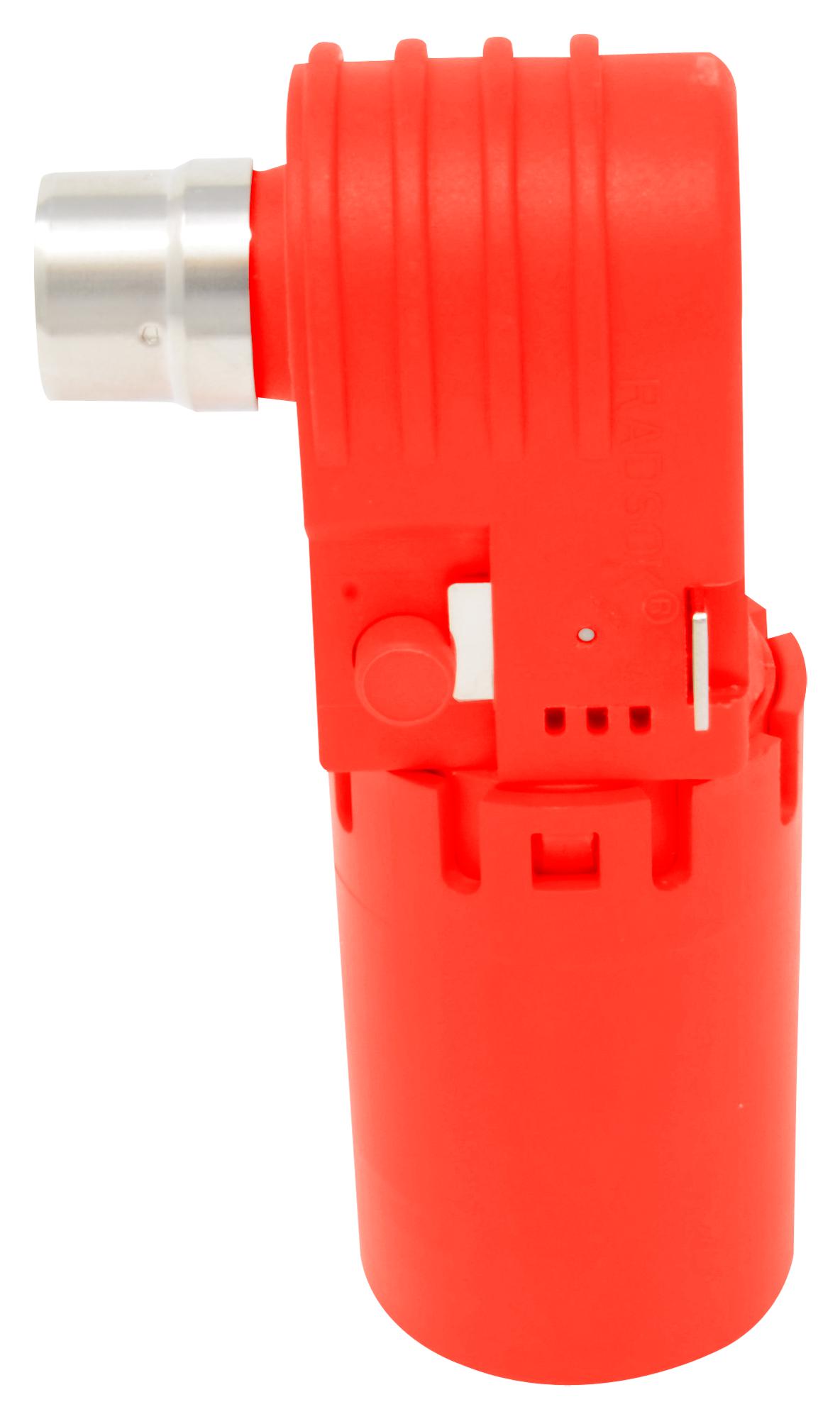

AMPHENOL INDUSTRIAL SLPPB70BSR1EH Field-Installable Compression Lug
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable lugs designed for environmentally sealed connections. These compact connectors feature a secondary locking system, quick lock, and press-to-release mechanism, ensuring secure and efficient installation. Incorporating the latest R4 RADSOK® technology, they provide quick mating and durability without the need for special torque tools when using industry-standard crimp, screw, or busbar termination methods. Suitable for applications such as electric vehicles, energy storage systems, rail transitions, process control, medical equipment, and heavy machinery, these lugs are available in various shell types—right angle, straight plug, and straight receptacle; connector colors including orange, black, and red; and contact sizes from 5.7mm (120A) to 10.3mm (350A). They offer optional EMI shielding and HVIL functions, come in touch-proof, IP67 sealed, and non-sealed variants, with keyways (60°, 90°, 120°, 150°, 180°, 270°) to prevent incorrect mating. Rated for up to 400A, 1000VAC/DC, and compatible with wire gauges up to 95mm², they meet UL94 V-0 flammability standards. Options include with or without backshell, and operating temperatures range from -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPPB70BSR1EH Field-Installable Compression Lug Specifications:
- Flammability: UL 94 V-0
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temperature: -40°C to 125°C
- Contact Size: 5.7mm (120A) to 10.3mm (350A)
- Ingress Protection: IP67
- Locking System: Secondary lock, quick lock, press-to-release
- Connector Types: Right angle, straight plug, straight receptacle
- Color Options: Orange, black, red
- Keyway Options: 60°, 90°, 120°, 150°, 180°, 270°
- Wire Compatibility: Up to 95mm²
- Mounting Options: With or without backshell
- Shielding: Optional EMI shielding
- Sealed and non-sealed variants available
Buy the Amphenol SLPPB70BSR1EH – Reliable Connectors for Industrial Applications
Order the Amphenol SurLok Plus™ compression lug online today to ensure secure, environmentally sealed electrical connections. Designed for industrial environments, these connectors feature quick-locking, press-to-release mechanisms, and optional EMI shielding for enhanced performance. Suitable for electric vehicles, energy storage, rail systems, and heavy machinery, the lugs are available in various configurations including right angle, straight plug, and straight receptacle. Rated up to 400A and 1000V AC/DC, with operating temperatures from -40°C to 125°C, they guarantee durability and reliable performance in demanding settings. Easy installation and UL94 V-0 flammability compliance make them ideal for critical electrical infrastructure.
Buy Amphenol SLPPB70BSR1EH now and experience unmatched reliability and performance in heavy-duty electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB70BSR1EH?
You can click on the BUY or RFQ button to purchase SLPPB70BSR1EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB70BSR1EH?
You can download the SLPPB70BSR1EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB70BSR1EH?
AMPHENOL INDUSTRIAL
