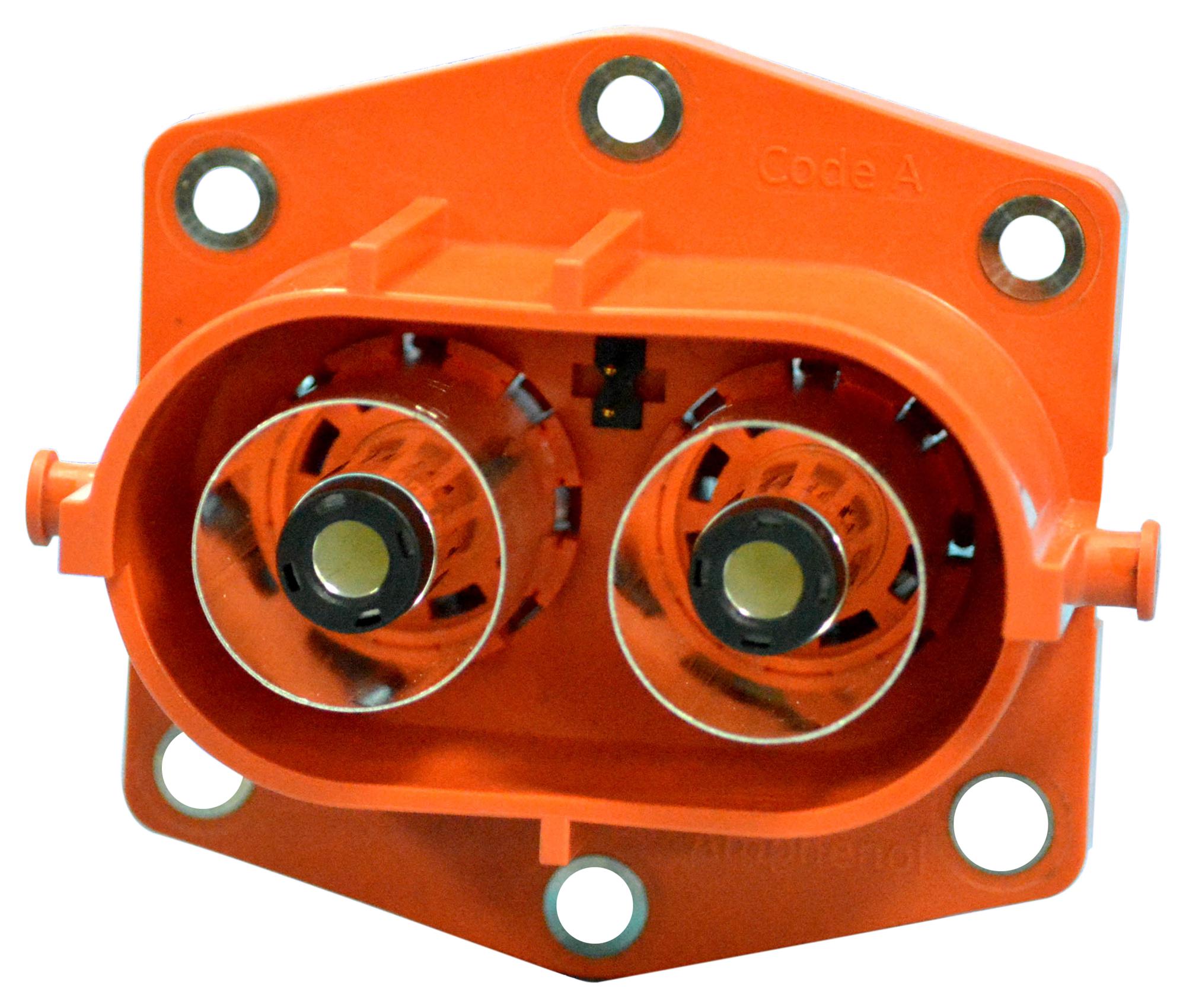

AMPHENOL INDUSTRIAL UPCR022ANS1 Power Connector
The UPC series connectors by Amphenol are high-current power connectors designed for hybrid electric vehicles, heavy equipment, and industrial applications. Featuring RADSOK® technology, they provide up to 50% more current capacity in a compact, lightweight plastic shell. With ratings reaching 450A, they include IP67 and IP69k ingress protection when mated, are touch-proof, and have a wide operating temperature range of -40°C to 125°C. They incorporate HVIL (High Voltage Interlock Loop), EMI shielding, quick lock, and a keyway to prevent incorrect mating, ensuring durability and safety in demanding environments.
AMPHENOL INDUSTRIAL UPCR022ANS1 Power Connector Specifications:
- Current Rating: 450A (150 mm), 400A (120 mm), 350A (95 mm), 200A (50 mm), 150A (35 mm)
- Voltage Rating: Up to 3000 VAC RMS, 1000V DC Max
- Contact Size: 14.0mm
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 when mated, IP69k
- Flammability: UL94 V-0
- Touch-Proof: Yes
- RADSOK® Technology: Increased current capacity, lower resistance
- Safety Features: HVIL, keyway for correct mating, secondary lock
- Construction: Lightweight plastic shell, compact footprint
- Mating Cycles: approximately 1000 cycles
- Operating Temperature: -40°C to 125°C
- Certification: UL94 V-0, RoHS Compliant
- Locking Mechanism: Quick lock with push-to-release
Buy the Buy Amphenol UPC Series Part Number UPCR022ANS1 Online
Enhance your industrial, hybrid electric vehicle, or heavy equipment systems with Amphenol's high-current UPC connectors. Featuring RADSOK® technology, these connectors deliver up to 450A, ensuring reliable power delivery with minimal resistance and efficient thermal management. Their compact design, IP67/IP69k ratings, and safety features like HVIL and quick lock make installation straightforward and secure. Whether for factory automation, energy storage, or transportation applications, these durable, UL94 V-0 rated connectors are your ideal choice for demanding environments where performance and safety matter most.
Get Amphenol UPC connectors today—built for high current, safety, and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL UPCR022ANS1?
You can click on the BUY or RFQ button to purchase UPCR022ANS1 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part UPCR022ANS1?
You can download the UPCR022ANS1 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of UPCR022ANS1?
AMPHENOL INDUSTRIAL
