AMPHENOL LTD 62GB12E0833PN Miniature Bayonet Connector
The 62GB Series connectors are miniature bayonet lock connectors designed for reliable electrical connections in military and industrial applications. Compliant with MIL-C-26482 standards, they feature durable shells in brass or stainless steel with corrosion-resistant finishes. These connectors support a wide range of configurations, including box, cable, and hermetic seals, with various insert arrangements and keying options for mis-mating prevention. They are rated for operating voltages up to 1500V and currents up to 45A, with temperature ranges from -55°C to 125°C. Suitable for both screened and unscreened cables, they incorporate gold-plated contacts for soldering, and multiple finishes including zinc cobalt olive drab and cadmium plating, ensuring high reliability and durability in harsh environments.
AMPHENOL LTD 62GB12E0833PN Miniature Bayonet Connector Specifications:
- Shell Material: Brass or Stainless Steel
- Finish Options: Zinc cobalt olive drab, Cadmium plate (special order), Other finishes available
- Operating Temperature Range: -55°C to 125°C
- Voltage Rating: Up to 1500V (nominal), Peak up to 3000V
- Current Rating: Sizes support from 13A to 45A depending on configuration
- Insert Compatibility: Sizes 8, 10, 12, 14, 16, 18, 20, 22, 24
- Insert Keys: Normal, alternate positions B, C, E, F with keying to prevent mis-mating
- Sealing: Grommet, hermetic, or gasket seals available
- Temperature Derating: Reduced current at elevated temps to prevent hot spot exceeding 125°C
- Environmental: Suitable for high altitude, damp heat, vibration, and shock tests
- Connectors are designed for soldered contacts with gold plating for long-term reliability
- Support for wired, box, flange, and hermetic mounting styles
- Permitted insert rotation in key positions for customization
- Compliance: MIL-C-26482, BS9522 F0017-F0038, NO001 standards

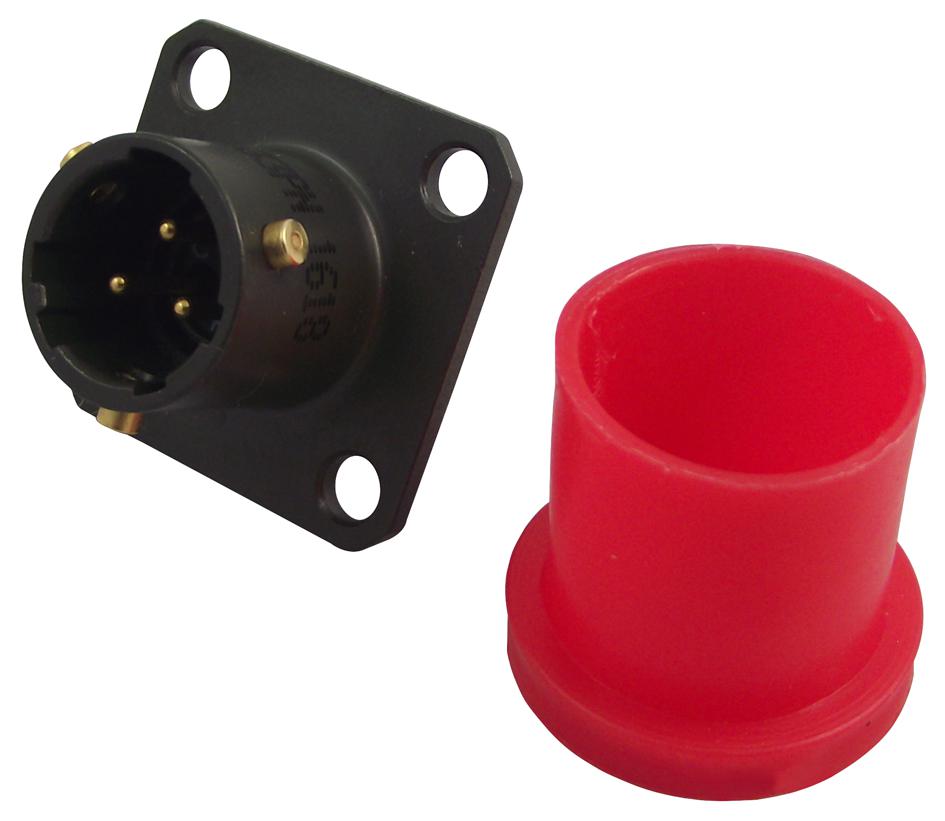

Buy the Amphenol Series 62GB Solder Connectors: 62GB12E0833PN
Purchase the Amphenol Series 62GB12E0833PN miniature connector today for high-reliability solder connections with excellent environmental sealing. Designed to withstand demanding conditions, these connectors support up to 1500V and 45A, with wide temperature tolerance from -55°C to 125°C. They feature corrosion-resistant brass or stainless steel shells, gold-plated contacts for superior soldering performance, and various mounting options including box, cable, and hermetic styles. Ideal for military-grade applications, these connectors ensure secure, durable electrical connections with options for mis-mating prevention through keying and rotating inserts. Order now and enhance your system’s resilience and performance.
Order your Amphenol Series 62GB12E0833PN today and secure robust, high-performance connections for military and industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E0833PN?
You can click on the BUY or RFQ button to purchase 62GB12E0833PN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E0833PN?
You can download the 62GB12E0833PN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E0833PN?
AMPHENOL LTD
