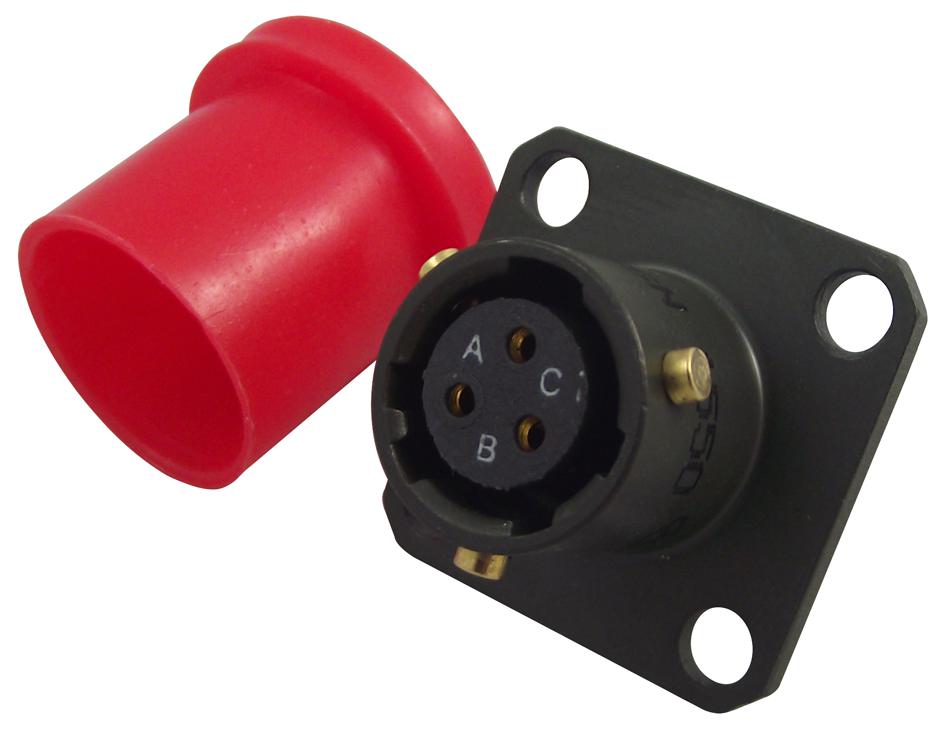

AMPHENOL LTD 62GB12E0833SN Miniature Bayonet Connector
The 62GB Series miniature bayonet lock connectors are compliant with MIL-C-26482E, offering robust construction in brass or stainless steel with high corrosion resistance. They feature gold-plated contacts for soldered connections, optional finishes like cadmium, and include various configurations such as hermetic and plated shells. The connectors are designed for high reliability in demanding environments, including high altitude and high temperature conditions, with excellent sealing and keying to prevent mis-mating. Suitable for a wide range of military, industrial, and aerospace applications, these connectors are easy to install and maintain due to their modular design with multiple insert and keyway options.
AMPHENOL LTD 62GB12E0833SN Miniature Bayonet Connector Specifications:
- Shell materials: Brass or stainless steel with finishes in zinc cobalt olive drab, cadmium, or nickel plating
- Operating temperature range: -55°C to 125°C
- Contact types: Gold-plated for solder connections, various sizes (8 to 24 contacts)
- Voltage ratings: Up to 1500 V (nominal), depending on configuration and altitude derating
- Current ratings: Contact size 12: 23 A (max), size 8: 45 A (max), at ambient temperature 85°C
- Physical dimensions: Shell sizes range from 11/16 inch to 1.5 inches diameter, with specific length specifications per style
- Sealing: Grommet, grommet nut, or hermetic glass sealed dielectric options with panel ring seals
- Keying: Positive shell-to-shell keying with fixed and alternate positions (B, C, E, F), to prevent mis-mating
- Ingress protection: High resistance to moisture and dust, hermetic options meet hermetic sealing requirements
- Testing standards: Visual, dielectric, vibration, shock, thermal shock, humidity, and immersion tests as per military specifications
Buy the Amphenol Series 62GB Miniature Bayonet Lock Connector: 62GB12E0833SN
Order the Amphenol 62GB12E0833SN online today and experience high-performance, MIL-certified connectors designed for demanding industrial, military, and aerospace environments. Featuring durable brass or stainless steel shells, gold-plated solder contacts, and multiple sealing options, these connectors ensure reliable operation at high altitude and temperature conditions. With a variety of insert arrangements and keying for easy, error-free mating, they are ideal for critical applications requiring rugged reliability and easy installation. Buy online now to ensure your project’s success with trusted, certified connectors.
Get Amphenol 62GB12E0833SN today—built for aerospace and military precision with sealed, high-current contacts in versatile configurations.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E0833SN?
You can click on the BUY or RFQ button to purchase 62GB12E0833SN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E0833SN?
You can download the 62GB12E0833SN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E0833SN?
AMPHENOL LTD
