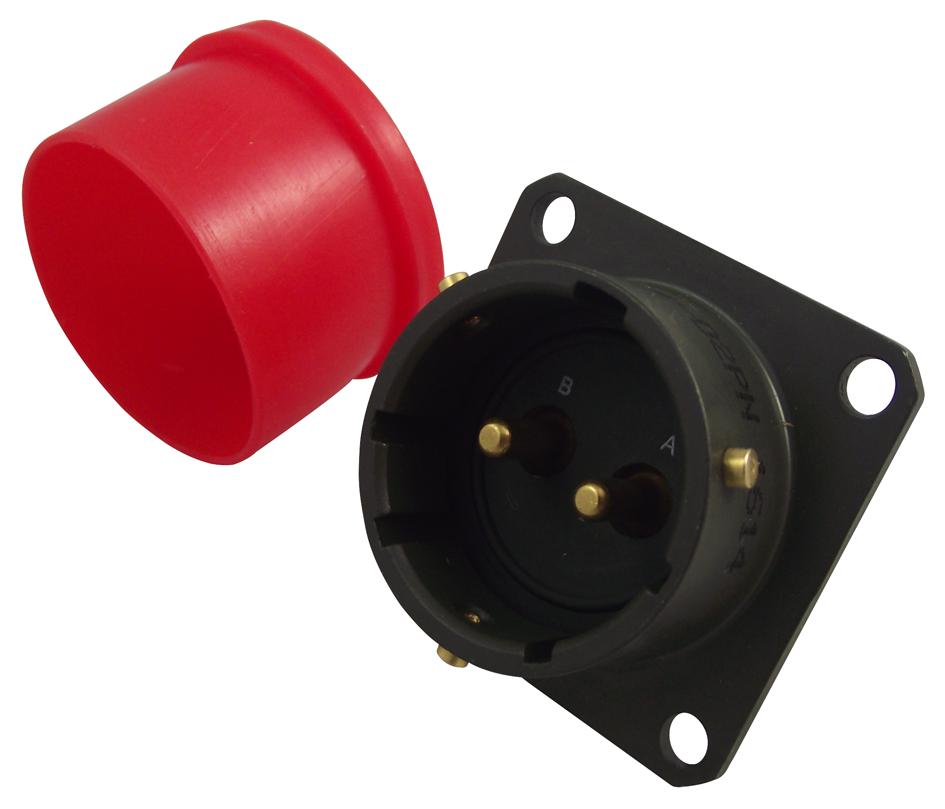

AMPHENOL LTD 62GB12E1402PN Bayonet Connector
The 62GB series connectors are miniature bayonet lock components meeting MIL-C-26482 standards, featuring high corrosion resistance, soldered contacts, and various finishes. They are suitable for industrial, military, and aerospace applications, offering reliable electrical performance under demanding conditions with temperature ranges from -55°C to +125°C. Available in brass or stainless steel shells with options for hermetic sealing, these connectors include polychloroprene rubber inserts and gold-plated contacts. Designed for versatile mounting styles—box, cable, and single hole—they incorporate keying to prevent mismating and are built to stringent military specifications, ensuring durability and versatile use in complex systems.
AMPHENOL LTD 62GB12E1402PN Bayonet Connector Specifications:
- Shell Material: Brass or stainless steel
- Finish: Zinc cobalt olive drab; other finishes available on request
- Insert Material: Polychloroprene rubber
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Gold-plated copper or tin over copper for hermetic types
- Voltage Rating: Up to 3000 V peak depending on configuration
- Current Rating: Contact size 12: 23A; size 8: 45A (per contact)
- Mechanical Durability: 500 mating cycles
- Mounting Styles: Box, cable, single hole, flange, and hermetic
- Keying: Positive shell-to-shell keying with multiple keyway positions
- Compliance: MIL-C-26482E, BS9522 F0017, F0038, NO001
- Environmental Resistance: Corrosion-resistant coatings, hermetic sealing options
- Physical Dimensions: Shell sizes range from 8 to 24 with specific measurements for each
- Insulation Resistance: 5,000 Megaohms at 500V to 50V DC
- Sealing: Hermetic glass-sealed dielectric or gasket seals
- Derating: Current reduced at elevated temperatures; voltage ratings decrease at high altitudes
- Certification: MIL-C-26482 compliant, suitable for demanding environments
Buy the Amphenol 62GB12E1402PN – Reliable Bayonet Lock for Industrial Applications
Purchase the reliable and rugged Amphenol Bayonet Connector series online today. Designed to meet military standards, these connectors provide high corrosion resistance, secure bayonet locking, and versatile mounting options suitable for industrial, aerospace, and defense systems. With a temperature range from -55°C to +125°C, gold-plated contacts, and optional hermetic sealing, they ensure long-lasting electrical performance and safety in critical applications. Order now to ensure premium quality, quick delivery, and seamless integration into your engineering projects.
Get Amphenol 62GB12E1402PN today—built for precision, durability, and versatility in demanding systems.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1402PN?
You can click on the BUY or RFQ button to purchase 62GB12E1402PN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1402PN?
You can download the 62GB12E1402PN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1402PN?
AMPHENOL LTD
