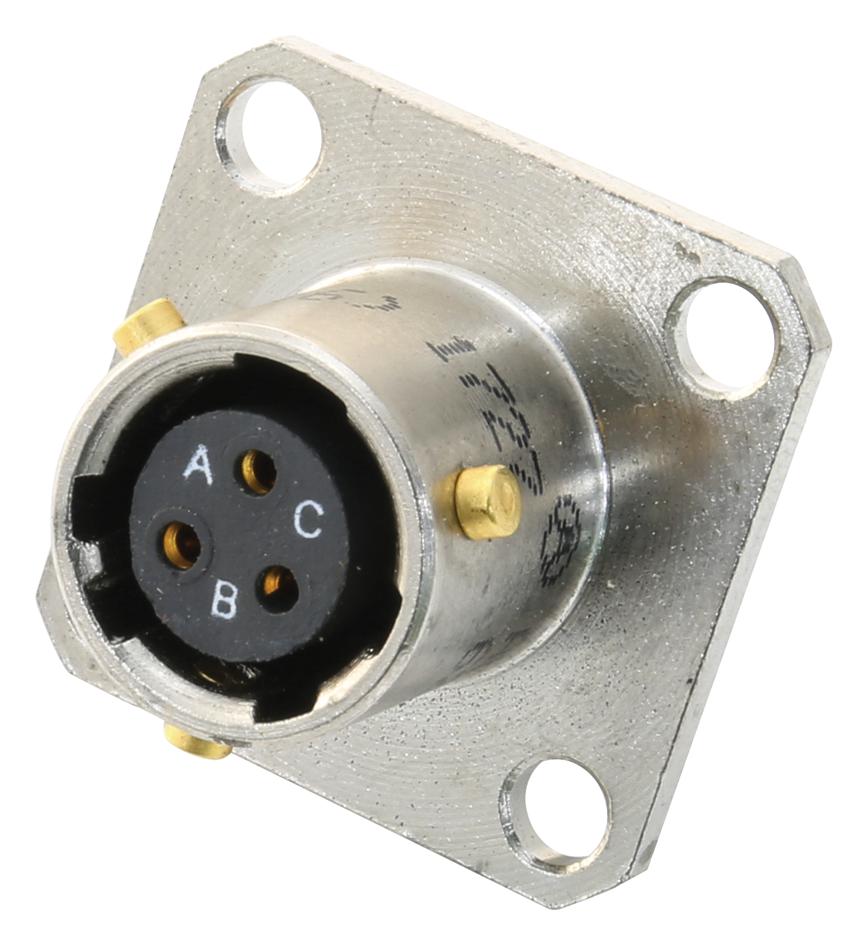

AMPHENOL LTD 62GB12E1412SN416 Military Connector
This miniature bayonet lock connector series offers robust, high-reliability connections designed for military and industrial applications. Compliant with MIL-C-26482 standards, the 62GB series features various shell materials including brass, stainless steel, and zinc nickel finishes, with optional cadmium plating. The connectors support a wide range of insert configurations and keying arrangements to prevent mis-mating. Suitable for both solder and screw termination, they are ideal for demanding environments requiring high vibration, resistance to corrosion, and hermetic sealing with glass dielectric. The connectors are used in aerospace, military, and heavy-duty industrial systems for secure, durable, and versatile electrical connections.
AMPHENOL LTD 62GB12E1412SN416 Military Connector Specifications:
- Material: Brass, stainless steel, zinc nickel finish, optional cadmium plating
- Operating Temperature Range: -55°C to 125°C
- Shell finishes: Zinc cobalt olive drab, cadmium, nickel, stainless steel options
- Contacts: Gold-plated, for solder or screw termination
- Insert configurations: Size 8 to 24 contacts, various keying options
- Voltage Rating: Up to 3,000 V (peak), derated at altitude
- Current Ratings: Size 12 contacts up to 23 A, size 8 contacts up to 45 A
- Environmental Resistance: Corrosion-resistant, hermetic options, suitable for harsh environments
- Connector Types: Box mounting, cable mounting, single hole, flange mounting, hermetic seals
- Standards Compliance: MIL-C-26482E, BS9522 F0017, F0038
- Physical Dimensions: Shell sizes vary from 8 to 24 with corresponding dimensions as per detailed engineering charts
- Locking Mechanism: Bayonet type with key/ keyway configurations for secure mating
Buy the Amphenol 62GB12E – Reliable Military-Grade Connectors for Industrial Applications
Discover the high-performance Amphenol military-grade connector 62GB series, designed for rugged industrial and aerospace applications. With a variety of configurations including solder and screw terminations, these connectors meet MIL standards and feature corrosion-resistant shells, hermetic sealing options, and high voltage and current ratings. Perfect for demanding environments, they ensure reliable, long-lasting connections, reduce mis-mating risks with keying features, and are available in multiple finishes. Order online today to enhance your system’s reliability with trusted Amphenol quality and secure, vibration-proof connections.
Buy Amphenol 62GB12E now and experience unmatched durability and secure connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1412SN416?
You can click on the BUY or RFQ button to purchase 62GB12E1412SN416 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1412SN416?
You can download the 62GB12E1412SN416 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1412SN416?
AMPHENOL LTD
