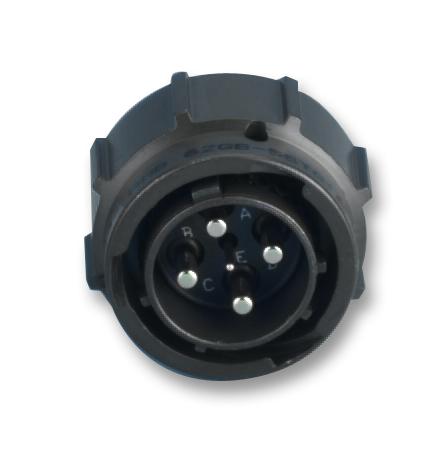

AMPHENOL LTD 62GB56TG1404PN044 High-Performance MIL Connector
The 62GB Series connectors are high-performance miniature bayonet lock connectors compliant with MIL-C-26482E standards, featuring brass or stainless steel shells with corrosion-resistant zinc cobalt olive drab finish. They incorporate polychloroprene rubber insulators with gold-plated solder contacts, suitable for voltages up to 1500V and current ratings up to 45A depending on contact size. Designed for reliable electromagnetic sealing and mis-mating prevention through positive keying, these connectors are available in various configurations, including hermetic versions with glass sealed dielectric, and encompass multiple mounting styles such as box, cable, and single-hole mounting, with extensive accessory options including gaskets, grommets, and sealing caps. They are ideal for military, industrial, and communications applications requiring robust environmental resistance and high electrical performance at temperatures from -55°C to +125°C.
AMPHENOL LTD 62GB56TG1404PN044 High-Performance MIL Connector Specifications:
- Shell Materials: Brass, stainless steel
- Shell Finishes: Zinc cobalt olive drab (standard), cadmium (special order), other finishes available
- Operating Temperature Range: -55°C to +125°C
- Voltage Ratings: Up to 1500V (nominal), with altitude derating applied
- Current Ratings: Contact size 12: 23A (max. alone), 20A (all contacts); Contact size 8: 45A (max. alone), 40A (all contacts)
- Inserts: Polychloroprene rubber, gold-plated solder contacts
- Connector Styles: Receptacles, plugs, hermetic, box, cable, single-hole mounting
- Mis-mate Prevention: Positive keying with multiple key positions (A-F), rotated insert options
- Sealing: Electromagnetic sealing, panel O-ring seals, threaded and flanged mounting options
- Compliance: MIL-C-26482E, international government and industrial standards
- Accessories: Gaskets, grommets, caps, chains, strain relief clamps, for environmental sealing and mounting
- Electrical Safety: Dielectric withstand voltage up to 3000V peak, contact resistance less than 5 milliohms
- Inserts: Variety of contact arrangements from 8 to 61 contacts, including specialized hermetic versions
- Certifications: MIL-C-26482E compliant, UL Listed, assorted environmental tests including vibration, shock, immersion, high temperature endurance
Buy the Buy Amphenol 62GB Series Connector Part Number 62GB56TG1404PN044 Online
Purchase the Amphenol 62GB series connector Part Number 62GB56TG1404PN044 online today to benefit from reliable MIL-C-26482E compliance, high current ratings, versatile mounting options, and durable environmental sealing for demanding industrial and military applications. These connectors feature gold-plated solder contacts, corrosion-resistant shells, and comprehensive accessories such as gaskets and grommets, ensuring secure, sealed connections in extreme temperature ranges from -55°C to +125°C. Available with hermetic options and various keying configurations, they deliver unmatched performance, durability, and safety for sophisticated electronic systems. Order now and enhance your project’s reliability and performance.
Order your Amphenol 62GB series connector Part Number 62GB56TG1404PN044 today and ensure your projects have the robust, MIL-grade environmental and electrical performance they require.
