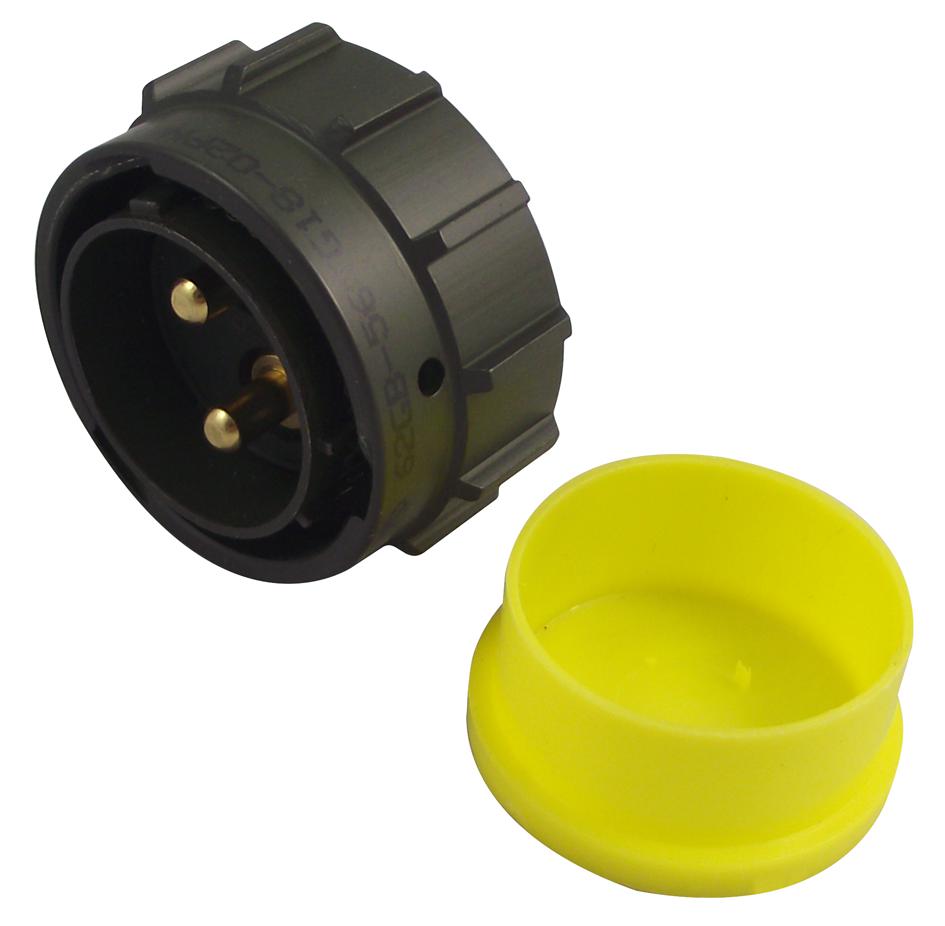

AMPHENOL LTD 62GB56TG1802PN044 Miniature Bayonet Lock Connectors
The 62GB Series connectors are miniature bayonet lock connectors compliant with MIL-C-26482E standards, featuring robust construction in brass or stainless steel with corrosion-resistant zinc cobalt olive drab finish. Designed for high reliability in demanding environments, they have gold-plated contacts for secure soldered connections, and are available in multiple configurations including hermetic variants with glass sealed dielectric. Keys and keyways prevent mismating, supporting versatile applications in military and industrial sectors worldwide, including aerospace, telecommunications, and control systems, with high voltage and current ratings, effective at elevated temperatures and high altitudes.
AMPHENOL LTD 62GB56TG1802PN044 Miniature Bayonet Lock Connectors Specifications:
- Construction: Brass or stainless steel shell
- Finish: Zinc cobalt olive drab (other finishes on order, e.g., cadmium plate)
- Operating Temperature Range: -55°C to 125°C
- Inserts: Polychloroprene rubber, gold-plated contacts for soldering
- Shell Finish Resistance: Corrosion-resistant
- Keying: Shell-to-shell positive keying with fixed and alternative keyways (B, C, E, F)
- Physical Size Range: Shell diameters from 12.7 mm (size 8) up to 36.1 mm (size 61)
- Current Ratings: Size 12 contact up to 23 A, size 8 up to 45 A (ambient 85°C)
- Voltage Ratings: Up to 1500 V (nominal, sea level), derated at high altitudes
- Hermetic Variants: Glass sealed dielectric with mild steel shells, nickel-iron contacts plated tin
- Ingress Protection: Designed for environmental sealing, with gaskets, grommets, and optional gaskets for moisture resistance
- Mounting: Box, single hole, flange, and cable mounting options with suitable accessories
- Derating: For elevated temperature and high altitude operation, ensuring hot spot temp limit of 125°C
Buy the Amphenol 62GB Series – Reliable MIL-C-26482 Connectors for Industrial Applications
Secure your projects with the high-quality Amphenol 62GB Series miniature bayonet lock connectors. Designed for demanding environments, these MIL-C-26482 compliant connectors feature durable brass or stainless steel shells, gold-plated solder contacts, and multiple sealing options. Suitable for high voltage and current applications up to 1500 V, they perform reliably at temperatures from -55°C to +125°C and at high altitudes. Easy to install with box, flange, or cable mounting, they offer versatile and environmentally sealed connections for military, aerospace, and industrial use. Order online now to benefit from reliable, high-performance connectivity solutions for your critical systems.
Order your Amphenol 62GB Series connectors today and ensure high performance and environmental resilience in your critical control systems.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB56TG1802PN044?
You can click on the BUY or RFQ button to purchase 62GB56TG1802PN044 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB56TG1802PN044?
You can download the 62GB56TG1802PN044 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB56TG1802PN044?
AMPHENOL LTD
