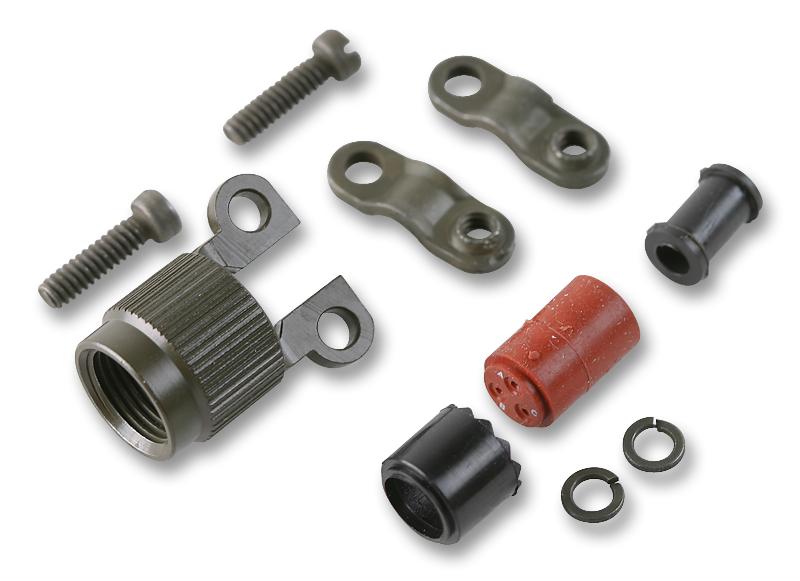

AMPHENOL LTD 62GB5851405P Miniature Bayonet Lock Connector
The 62GB series connectors are miniature bayonet lock connectors compliant with MIL-C-26482 standards, designed for robust electrical connections in military and industrial applications. They feature corrosion-resistant shells made of brass or stainless steel, with various finishes, and are equipped with gold-plated contacts for soldered connections. These connectors support a wide range of configurations, including box, cable, and hermetic types, with keying options to prevent mis-mating. Suitable for high-altitude, high-temperature, and vibration environments, they have excellent durability, sealing, and electrical performance, making them ideal for demanding industrial, military, and aerospace use.
AMPHENOL LTD 62GB5851405P Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or stainless steel
- Finish: Zinc cobalt olive drab (standard), cadmium plate (special order)
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Gold-plated for soldered connections
- Contact Ratings: Up to 45 A for size 8, 23 A for size 12 contacts in isolation
- Voltage Rating: Up to 1500 V (nominal), derated at high altitudes
- Shell Finish: Zinc cobalt olive drab or custom finishes; other finishes available on request
- Inserts: Polychloroprene rubber, resistant to environmental factors
- Compliance: MIL-C-26482E, certified for military and aerospace use
- Keying: Shell-to-shell with fixed and alternate key positions, preventing mis-mating
- Environmental Resistance: Corrosion, vibration, altitude, and temperature endurance
- Dimensions: Vary according to size (Shell diameter from 8 mm to 36 mm), detailed in technical charts
- Sealing: Grommet and gasket options available for environmental sealing
- Design Standards: Meets international and military specifications, including BS9522
Buy the Amphenol 62GB-585 U+2013 Reliable High-Performance Connectors for Industrial Applications
Secure your industrial and military connections with the high-quality Amphenol miniature bayonet lock connector. Designed to meet MIL standards, it offers exceptional durability, corrosion resistance, and electrical performance. Ideal for demanding environments, it features gold-plated contacts, various finishes, and keying options to prevent mis-mating. Whether for aerospace, defense, or industrial automation, purchase online today for reliable, high-performance connectivity that ensures safety and efficiency in critical applications, supported by comprehensive technical specifications.
Buy Amphenol 62GB-585 connector now and experience unmatched durability and reliable performance in demanding industrial and aerospace environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB5851405P?
You can click on the BUY or RFQ button to purchase 62GB5851405P from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB5851405P?
You can download the 62GB5851405P datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB5851405P?
AMPHENOL LTD
